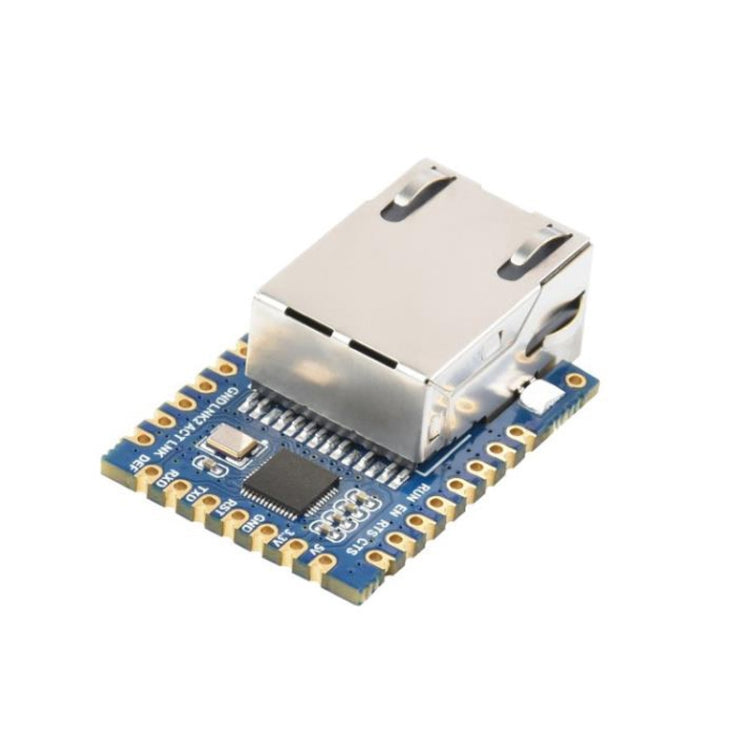

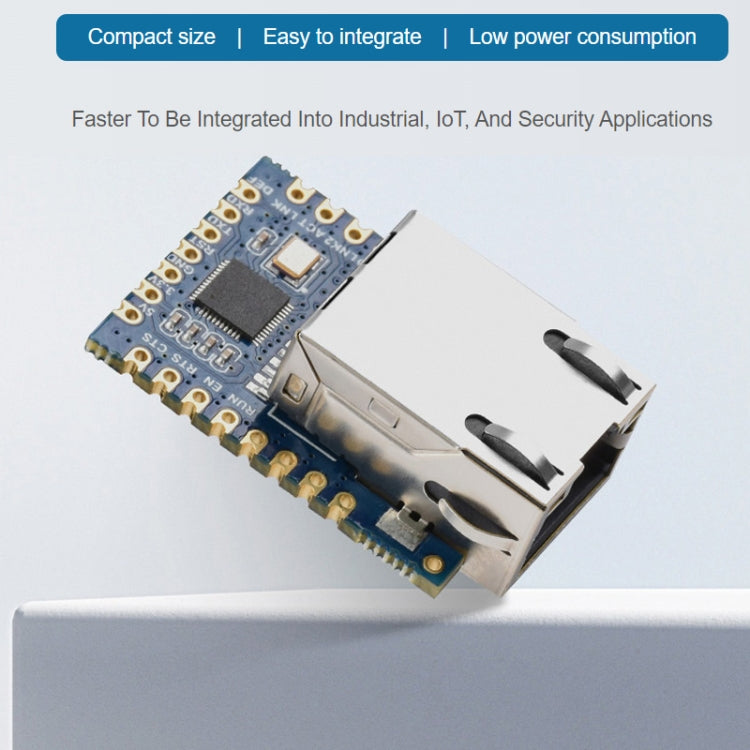

Waveshare UART TO ETH (B) TTL UART To Ethernet Mini Module

The Waveshare UART TO ETH (B) TTL UART To Ethernet Mini Module is a compact module designed for bi-directional transparent transmission between serial port and Ethernet interface. It is suitable for applications such as data acquisition, IoT gateways, and smart meter monitoring.

• Product Type: Module
• Compatibility: UART to Ethernet Mini Module
• Material: Not specified
• Color/Variant: Not specified

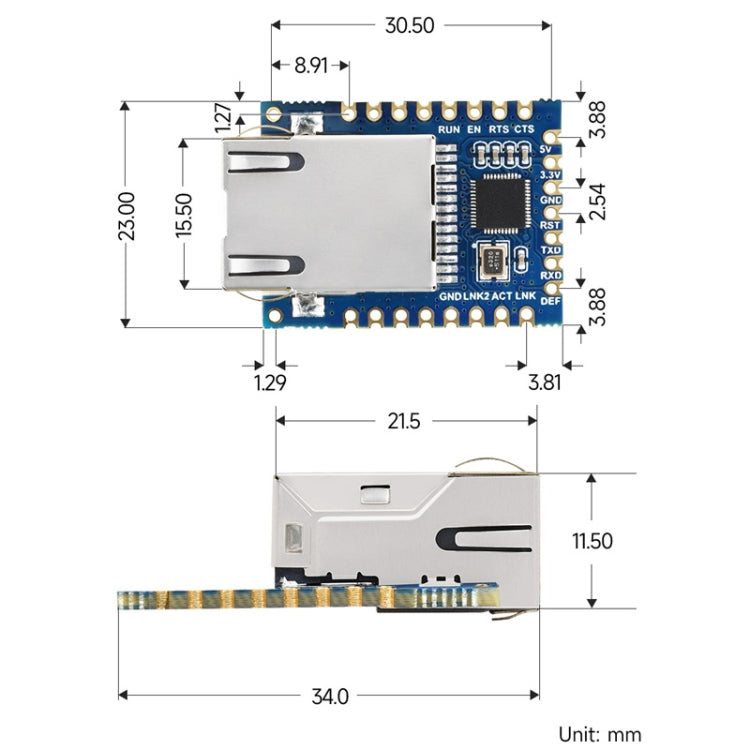

• Size: Approximately 34 x 23 x 11.5 mm
• Power Supply: DC 3.3V/5V
• Power Supply Method: Row of pins / pads
• Isolation Protection: Without isolation
• Serial Port: TTL
• Baud Rate: 300-115200 bps
• Data Bits: 5-9 bits
• Flow Control: With flow control
• Ethernet: Common network port
• Software Protocols: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
• Configuration Mode: Host computer configuration, WEB browser, device management function library
• Communication Mode: TCP/IP direct communication, virtual serial port mode
• Data Transmission Modes: TCP Server, TCP Client, UDP Group, UDP

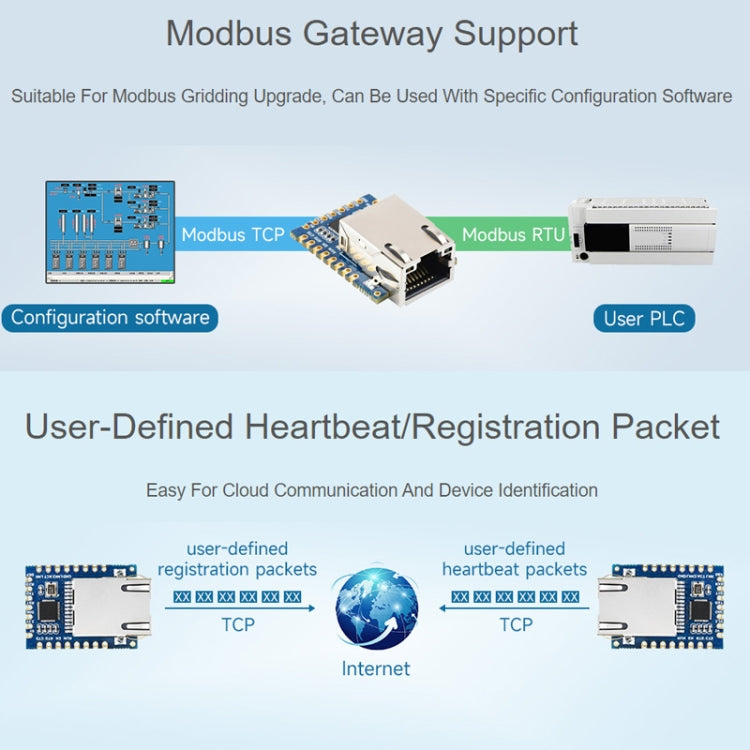

• Modbus Gateway: Modbus TCP to RTU
• Other Functions: Custom heartbeat packets/registration packets, custom web pages
• Features: Compact size, easy integration, low power consumption
• Application Scenarios: Serial server, Modbus gateway, MQTT gateway, suitable for data acquisition, IoT gateway, security IoT, and smart meter monitoring

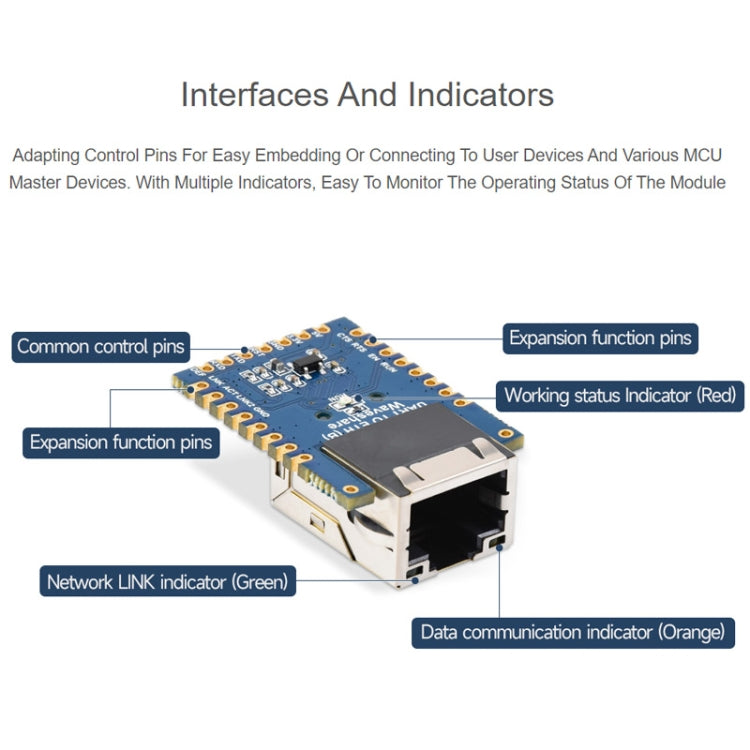

• Indicator Lights: Various indicators for monitoring module status
• Pin Out Control: Control pins for easy embedding or connection to user devices and various MCU master control devices
• Support for NTP Protocol: Network time retrieval for serial output or protocol content upload

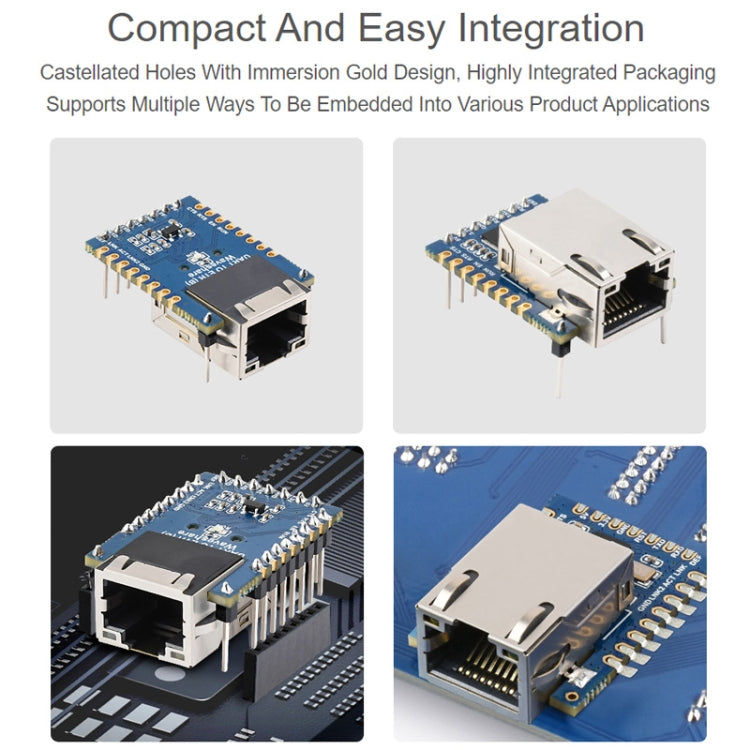

• Postage Stamp Hole Sinker Process: Highly integrated package for multiple embedding options

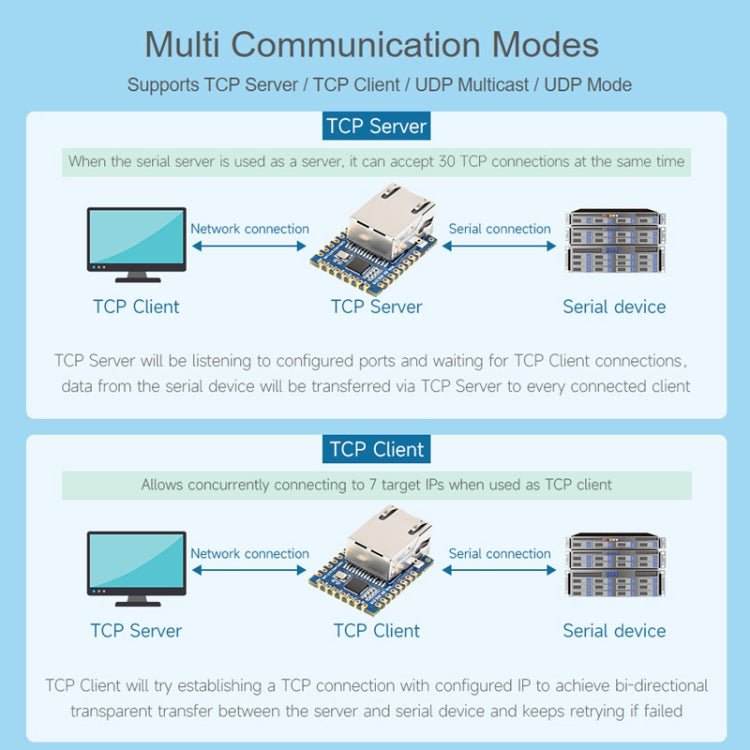

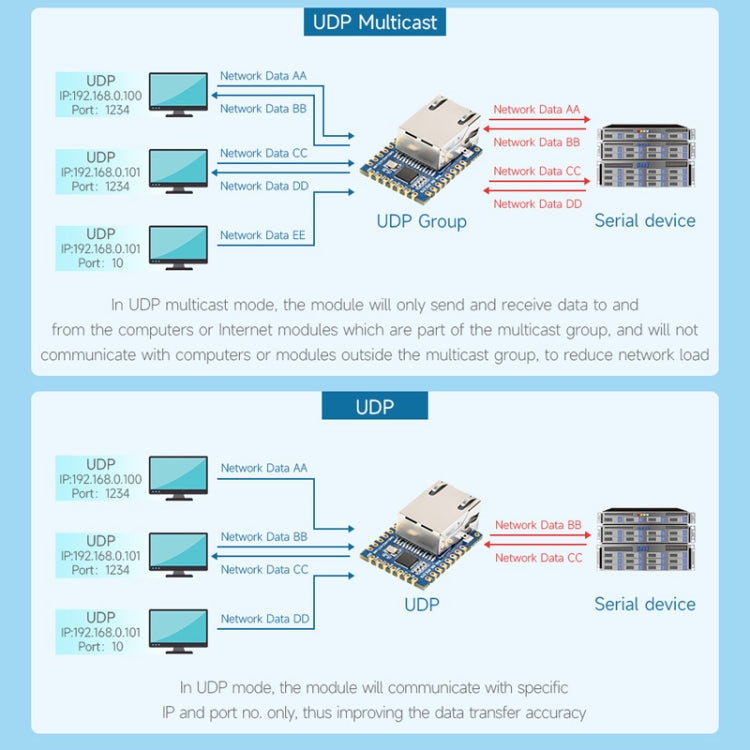

• Communication Modes: TCP server, TCP client, UDP multicast, UDP mode
• Modbus Network Upgrade: Suitable for Modbus network upgrades, compatible with 3D force control modal components
