Description

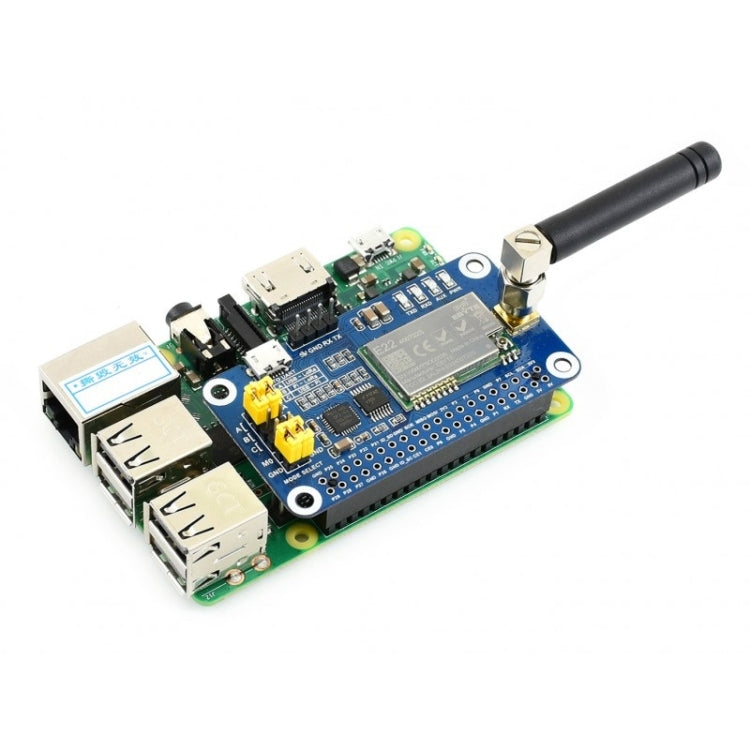

The Waveshare SX1268 LoRa HAT is a Raspberry Pi accessory designed for long-range data transmission. It is suitable for applications such as smart home systems, industrial control, and data collection.
- Type: LoRa HAT
- Frequency Band: 410.125 ~ 493.125MHz
- RF Module: SX1268
- Radio Rate: 0.3kbps ~ 62.5kbps (programmable)
- Transmit Power: 22.0dBm (programmable: 10/13/17/22dBm)
- Receive Sensitivity: -147dBm (at 2.4kbps)
- Power Consumption:
- Transmit Current: 110mA (transient)
- Receive Current: 11mA
- Sleep Current: 2uA (LoRa module software shutoff)
- Communication Interface: UART (TTL level)
- Baud Rate: 1200bps ~ 115200bps (default: 9600bps)
- Packet Length: 240 Byte (programmable: 32/64/128/240 Byte)
- Cache: 1000 Byte
- Experimental Range: 5km (conditions: cloudless, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)
- Power Supply: 5V
- Logic Level: 3.3V/5V
- Operating Temperature: -40~85°C
- Dimensions: 7cm x 12cm x 2cm
- Weight: 69g
- Applications: Smart home, industrial sensors, building automation, smart meters, IoT applications
- Included Items:
- SX1268 470M LoRa HAT x1
- USB type A plug to micro plug cable x1

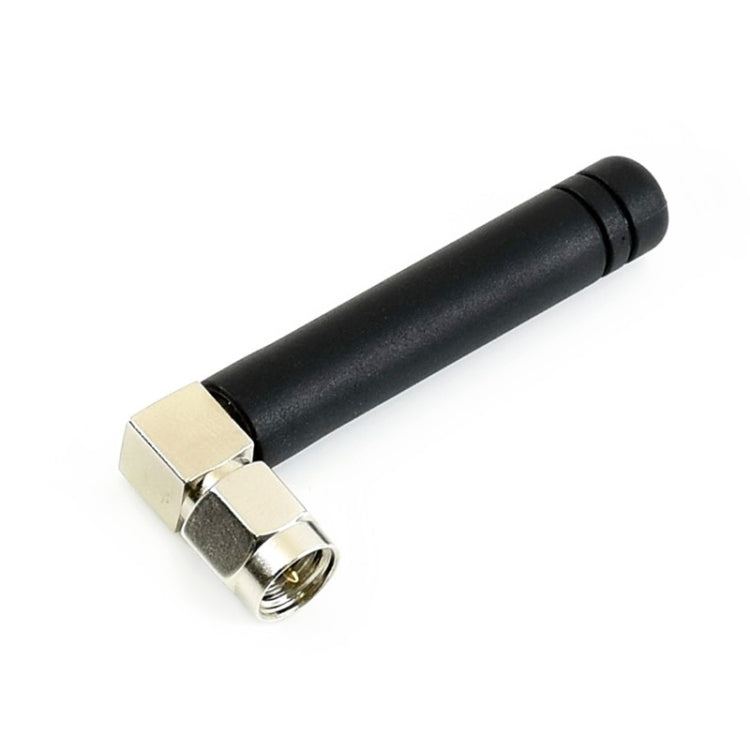

- 470MHz antenna x1

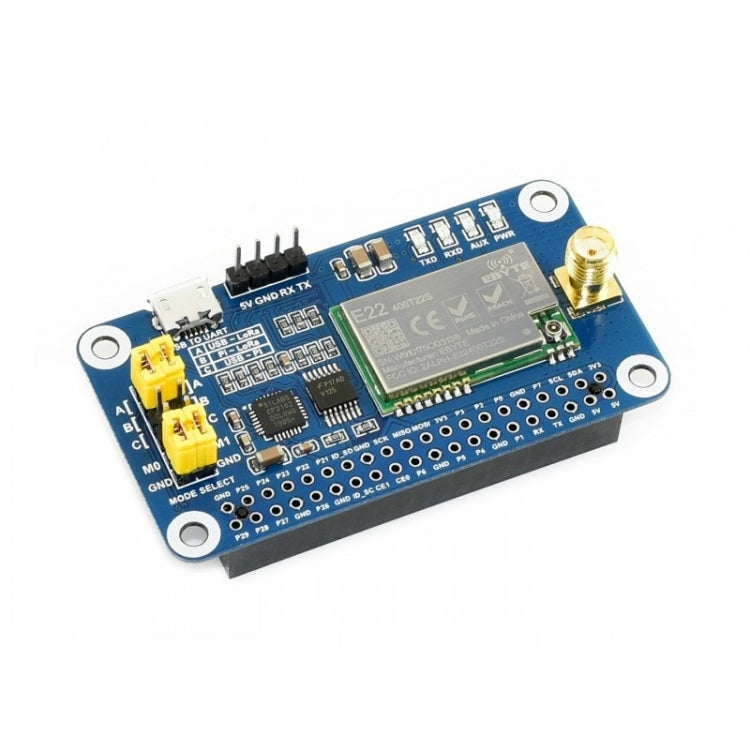

- Onboard Components:
- 74HC125V: voltage level translator
- CP2102: USB to UART converter
- Raspberry Pi GPIO connector
- USB to UART port
- UART header for STM32/Arduino
- SMA antenna connector
- IPEX antenna connector
- LED indicators: RXD/TXD, AUX, PWR
- UART selection jumpers
- LoRa mode selection jumpers
