Description

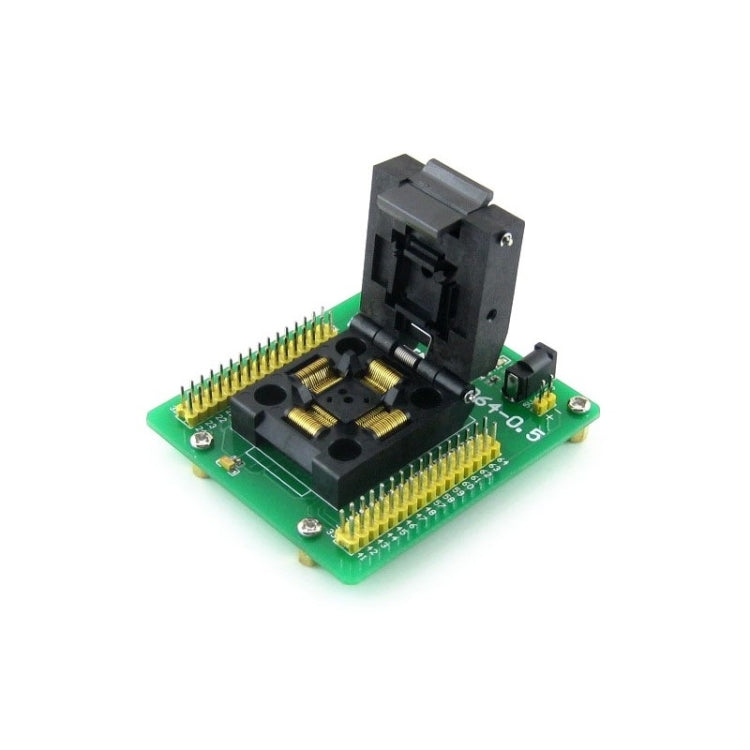

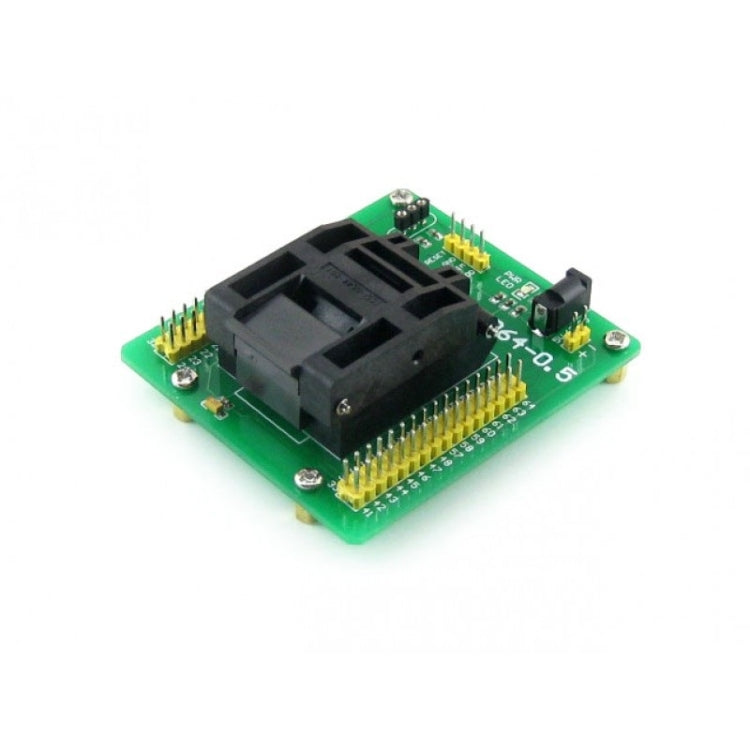

The Waveshare STM8-QFP64-0.5 is a programmer adapter designed for STM8 microcontrollers in QFP64(0.5mm pitch) package. It is used for programming and testing STM8 microcontrollers, providing access to all MCU pins through expansion connectors.
- Product Type: MCU Tools
- Compatibility: STM8 microcontrollers in QFP64(0.5mm pitch) package
- Supported Devices: STM8S207RxTx, STM8S208RxTx, STM8Ax51x9T, STM8Ax52x9T, STM8Ax61x9T, STM8Ax62x9T
- Key Feature: 4-pin SWIM Port for programming or testing
- External Crystal Connection: On-board socket for external crystal
- Power Input: DC5V/3.3V
- Power Indicator: Yes
- Package Contents: STM8-QFP64-0.5 × 1, USB power cable × 1

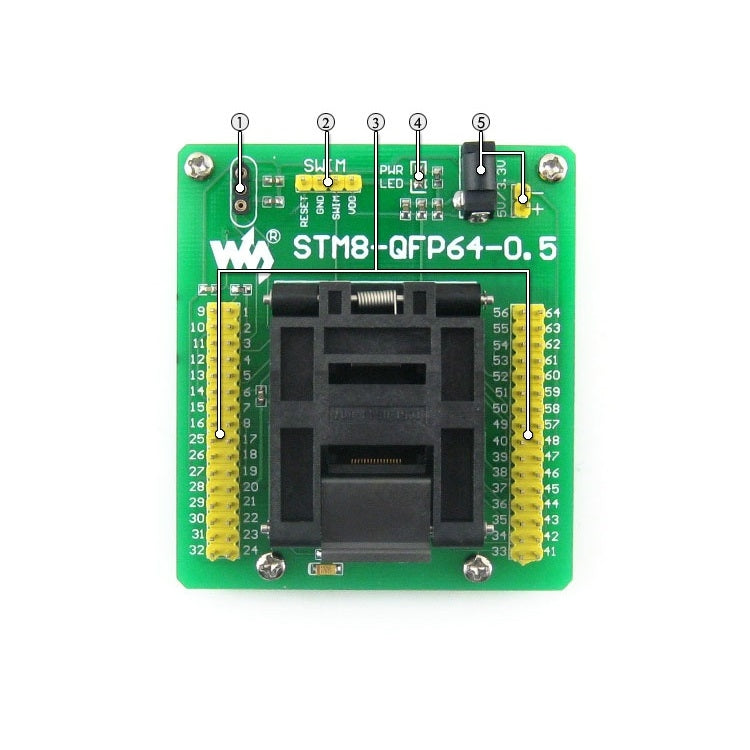

- Pin Headers: Clearly labeled with onboard marks for easy testing and expansion

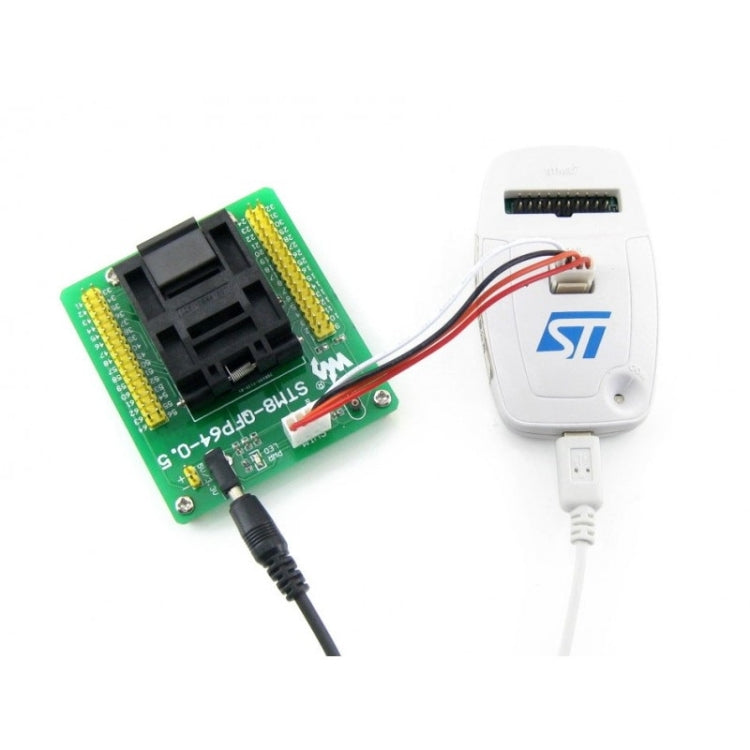

- SWIM Port: Compatible with ST-LINK, ST-LINK/V2 for programming/debugging/testing
