Description

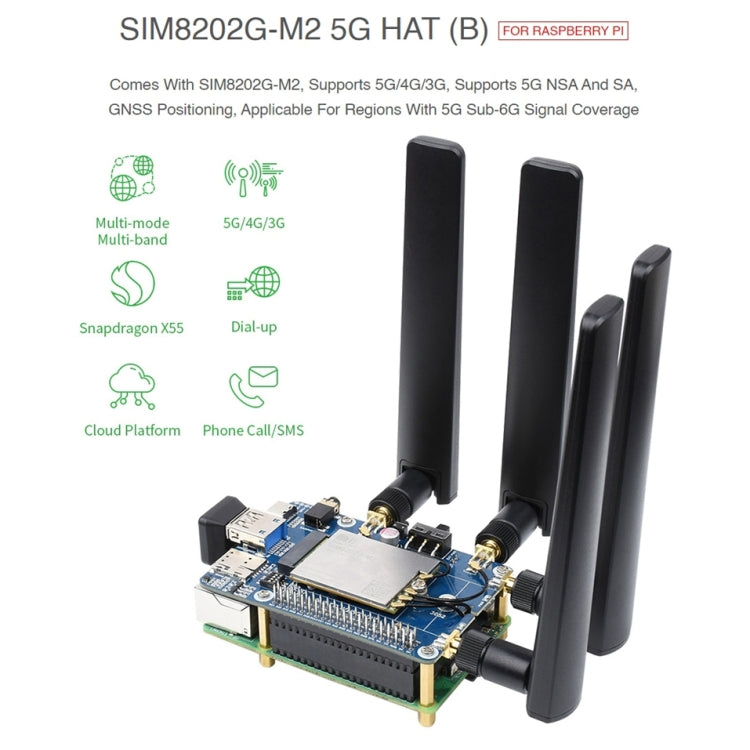

The Waveshare SIM8202G-M2 5G HAT B is a multi-band module board designed for high-speed 5G communication. It is suitable for applications such as smart gateways, drones, and remote treatment in regions with 5G Sub-6G signal coverage.

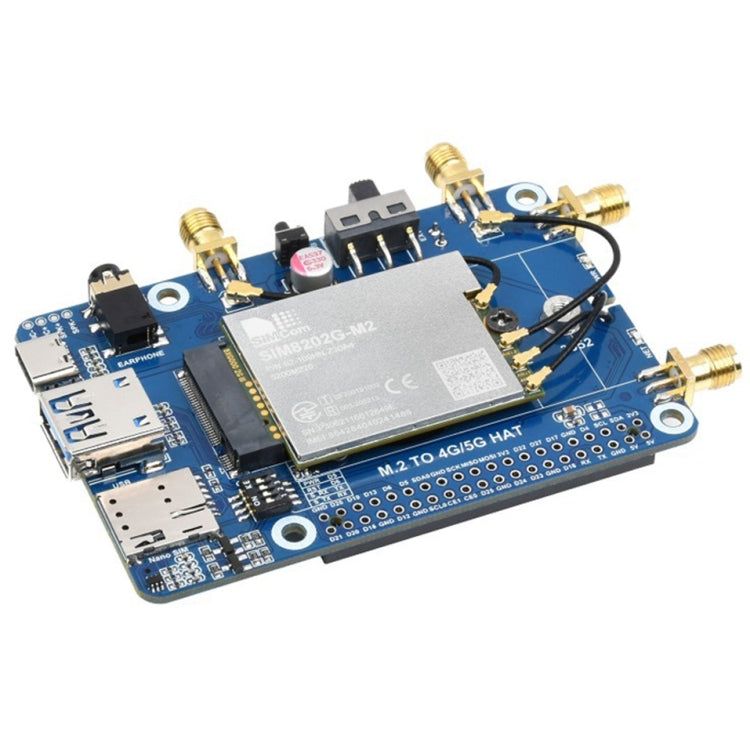

- Core module: SIM8202G-M2 based on Qualcomm Snapdragon X55 platform
- Networking support: 5G NSA and SA
- Multi-mode multi-band support: Sub-6G, LTE-FDD, LTE-TDD, WCDMA
- Frequency bands:
- Sub-6G (SA): n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
- Sub-6G (NSA): n41, n77, n78, n79
- LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
- LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
- WCDMA: B1, B2, B3, B4, B5, B8
- GNSS: GPS, GLONASS, Beidou, Galileo, QZSS
- Data rates:
- Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL)
- LTE: 1 Gbps (DL) / 200 Mbps (UL)
- HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
- Operating system support: Windows, Linux, Android
- Communication protocols: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
- SMS support: MT, MO, CB, Text, PDU
- Firmware upgrade: Via USB port
- Positioning: Multi-constellation dual-band (GPS, Beidou, Glonass, Galileo, QZSS)

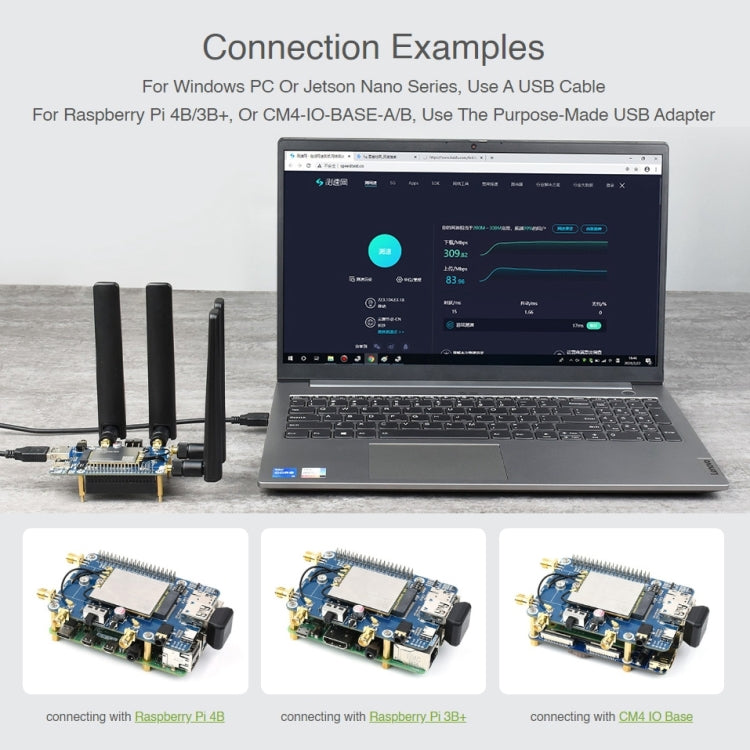

- USB ports: USB 3.1 (USB 2.0 compatible) for high-speed communication
- Compatibility: Standard M.2 B KEY slot for various 5G modules (SIM8202X-M2, SIM8200EA-M2, SIM8262X-M2)
- Power supply: Onboard power supply circuit with up to 3A output current
- Control features: Onboard UART, PWR, RST control pin, power supply on/off switch, reset button, LED indicator
- Antenna connectors: 4x SMA to IPEX connectors with pre-soldered SMA terminals
- SIM card slots: 2x SIM card slots with dual card single standby, switchable via AT command
- Audio features: Onboard audio jack and audio decoder for audio operations
- Package contents:
- M.2 TO 4G/5G HAT x1
- SIM8202G-M2 x1
- 4x Antenna x1
- 4x IPEX adapter cable x1
- 2x 20PIN pin header x1
- Passive GPS antenna x1
- Dual plug USB3.0 cable x1
- USB 3.0 adapter x1
- USB 2.0 adapter x1
- 4x SMA protective cap x1
- Screws pack x1
