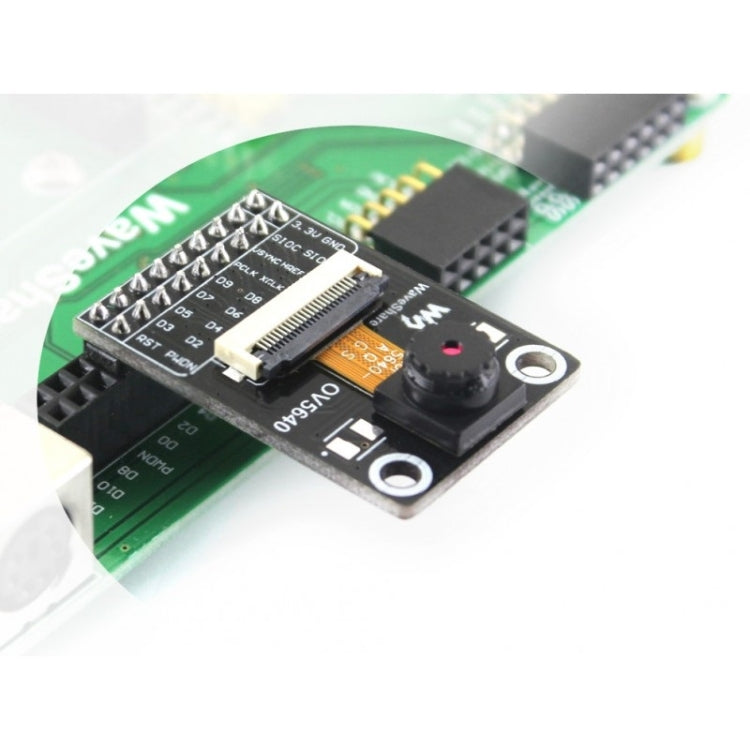

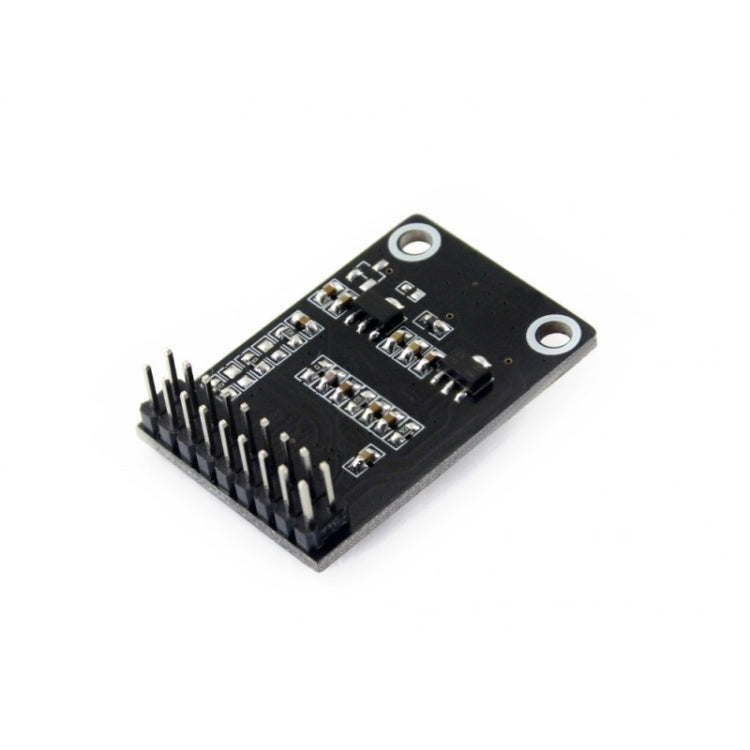

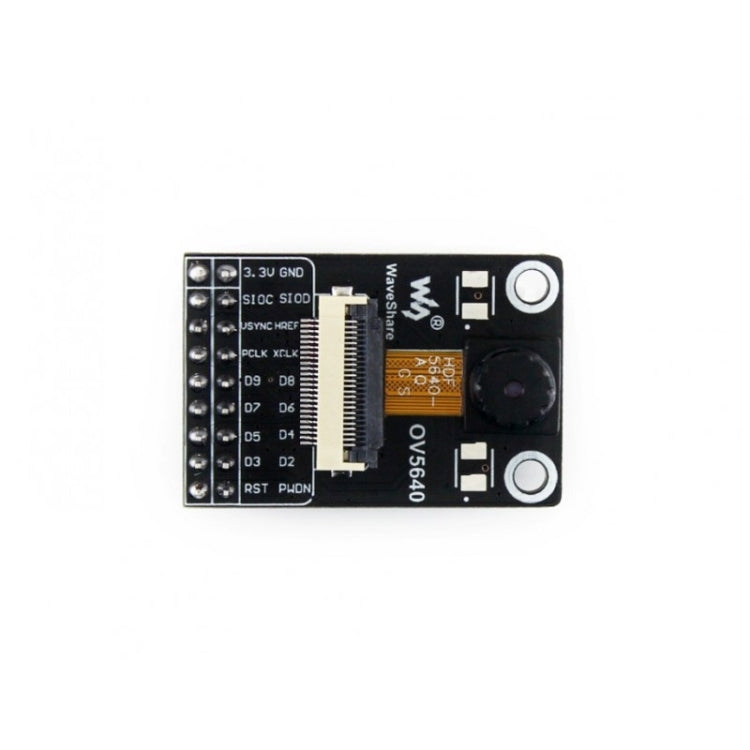

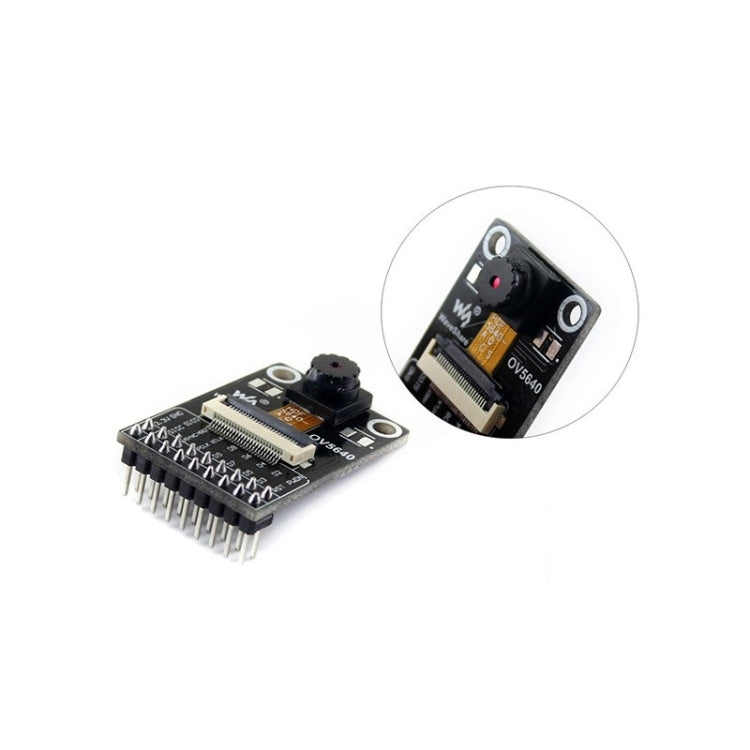

Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor
Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor
Share
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1.Pixels: 5 megapixel
2.Resolution: 2592x1944
3.Sensor: OV5640
3.1 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
3.2 Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
3.3 Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
3.4 Supports image scaling, panning, windowing, etc.
4.Lens:
4.1 CCD size: 1/4inch
4.2 Aperture (F): 2.8
4.3 Focal Length: 2.8mm
4.4 Diagonal: 63 degree
5.Output Formats:
5.1 YUV(422/420)/YCbCr422
5.2 RGB565/555/444
5.3 CCIR656
5.4 RAW RGB
5.5 Compressed Data
6.Operating Voltage: 3.3V
7.Control Interface: SCCB (I2C compatible)
8.Data Interface: DVP 8-bit

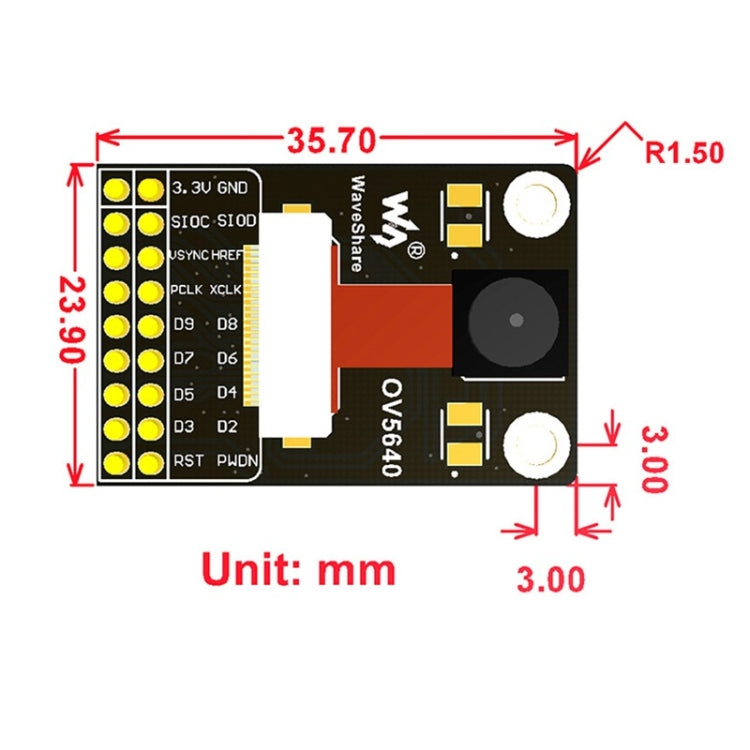

9.Dimension: 35.70mm × 23.90mm
