Description

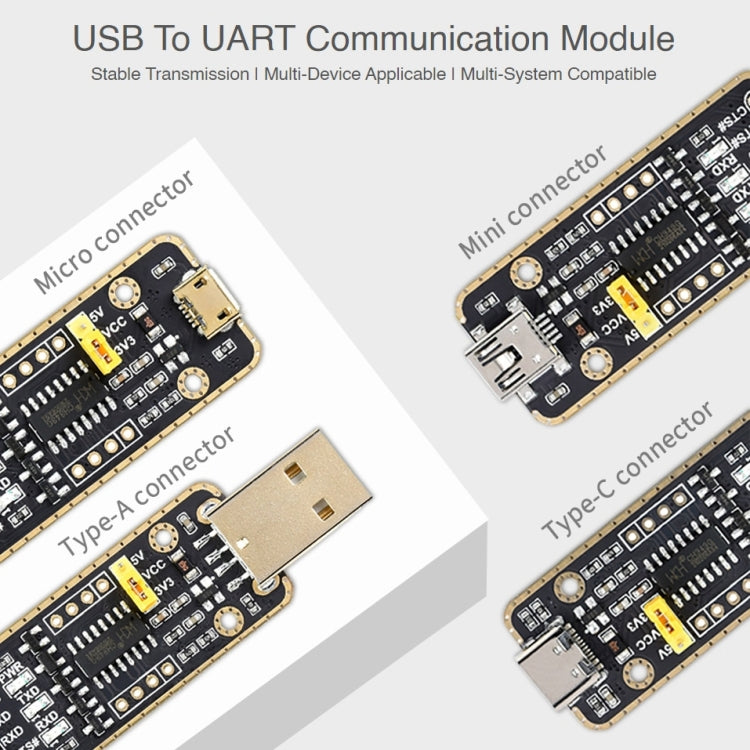

The Waveshare Micro USB to UART High Band Rate Transmission Module is an accessory designed for UART devices. It is suitable for applications requiring high data rate communication, such as connecting microcontrollers to computers.
- Product Type: Other Accessories
- Compatibility: UART devices
- Material: Durable construction
- Color: Black
- Key Feature: High data rate support (up to 6Mbps)
- Chip: CH343G, supports higher data rates and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V)

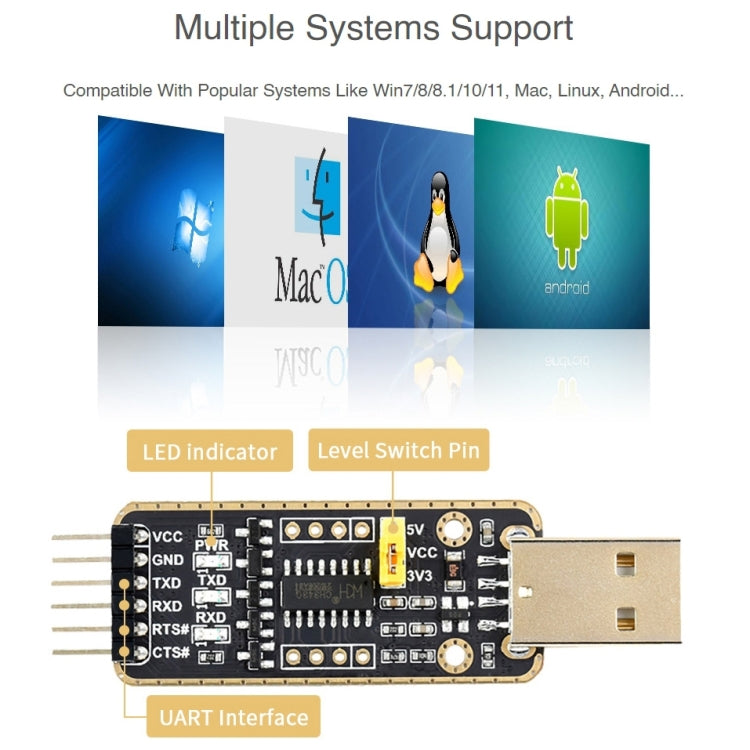

- Supported Operating Systems: Mac, Linux, Android, Windows 7/8/8.1/10/11

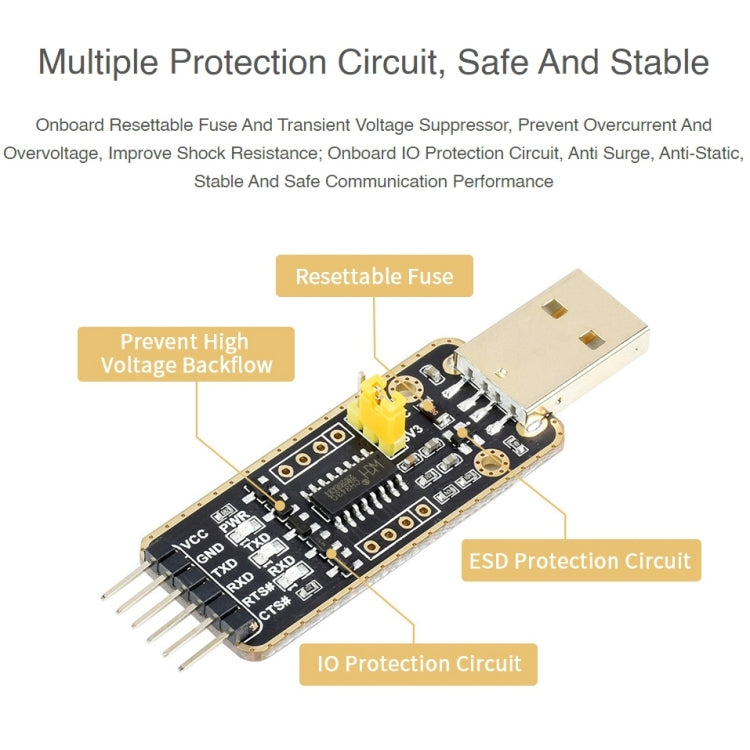

- Protection Features: Onboard resettable Fuse, Transient Voltage Suppressor, anti-overcurrent, anti-overvoltage, anti-surge, anti-static
- IO Protection: Onboard IO protection circuits
- TTL Level Switch Pins: 3.3V and 5V
- Power Supply: Powered by USB, jumper configurable to 3.3V or 5V
- Manufacturing Process: Double-sided black immersion gold
- Indicators: PWR (Power), RXD (Receiving), TXD (Sending)
- Pinouts: VCC, GND, TXD, RXD, RTS, CTS
- Host Interface: USB 2.0
- Device Interface: UART
- Communication Range: 50bps ~ 6Mbps

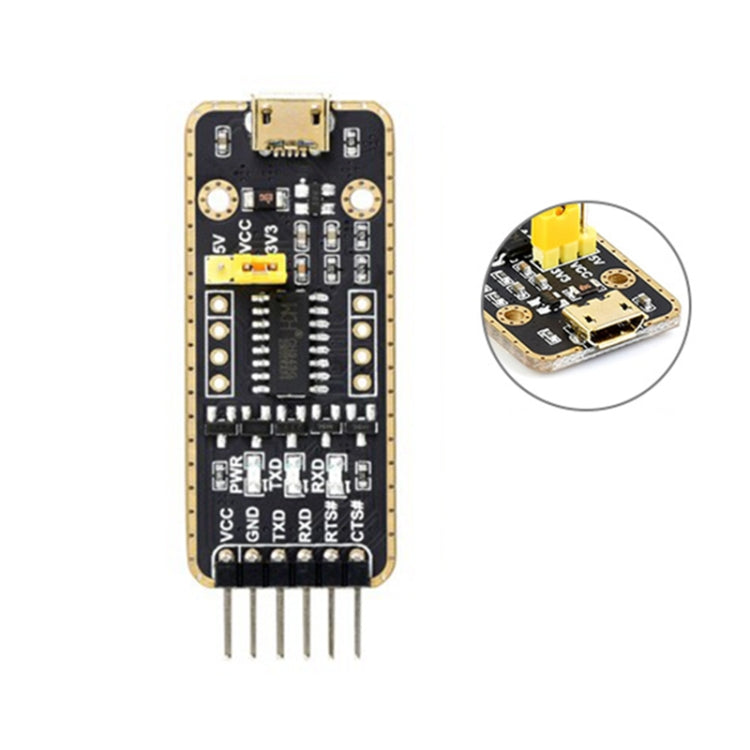

- USB Device Interface: Micro USB
- UART Interface Connector: 6-pin right-angle pinheader
- Protection: IO protection diode
