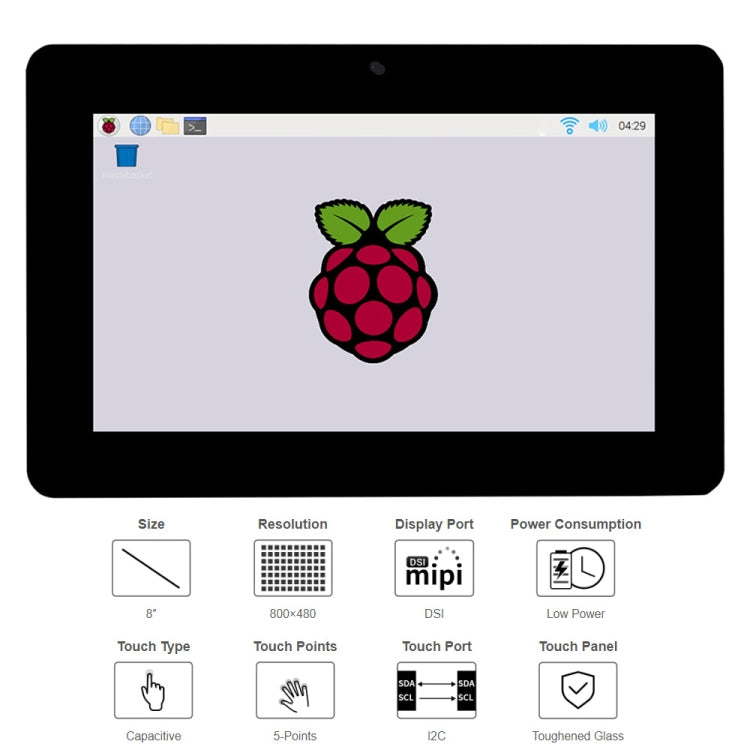

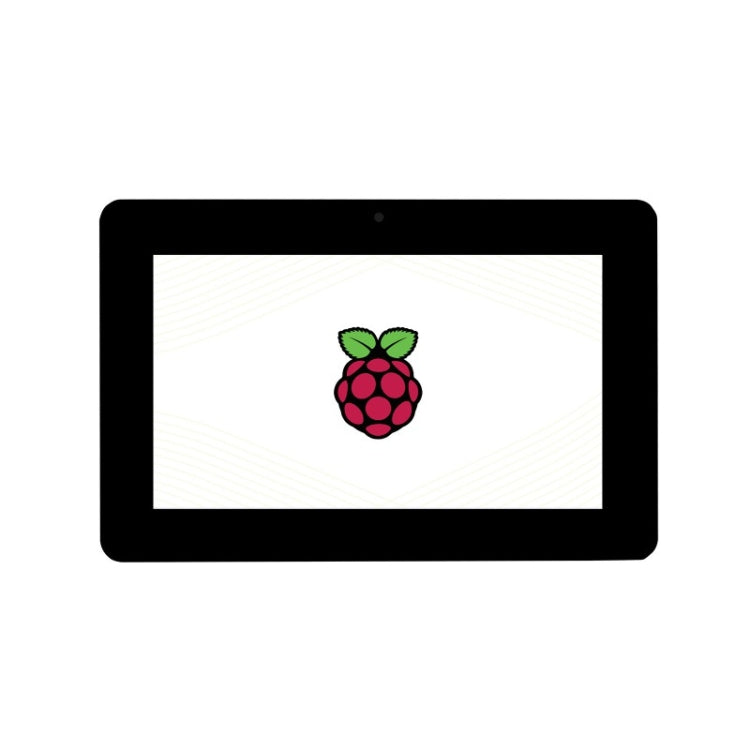

WAVESHARE 8 inch 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface

Name: WAVESHARE 8 inch 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface
Brand: WAVESHARE
SKU: DIY0229
Price: 1729.00 ZAR
Availability: InStock

R 1,729.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Device & System Support
For Raspberry Pi

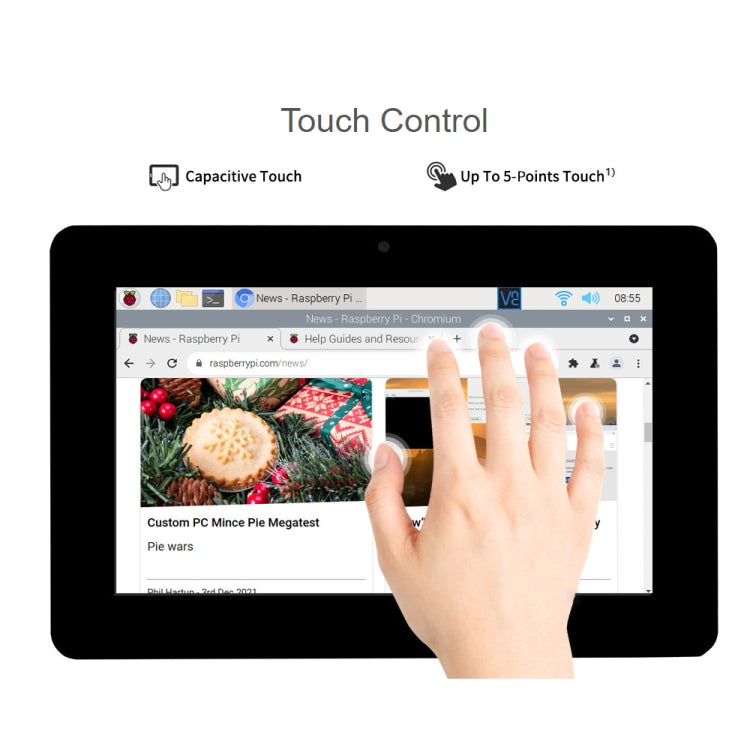

1. Support Raspberry Pi OS, 5-points touch, driver free
2. Support Ubuntu / Kali / WIN10 IoT, single point touch, driver free
3. Support Retropie, driver free

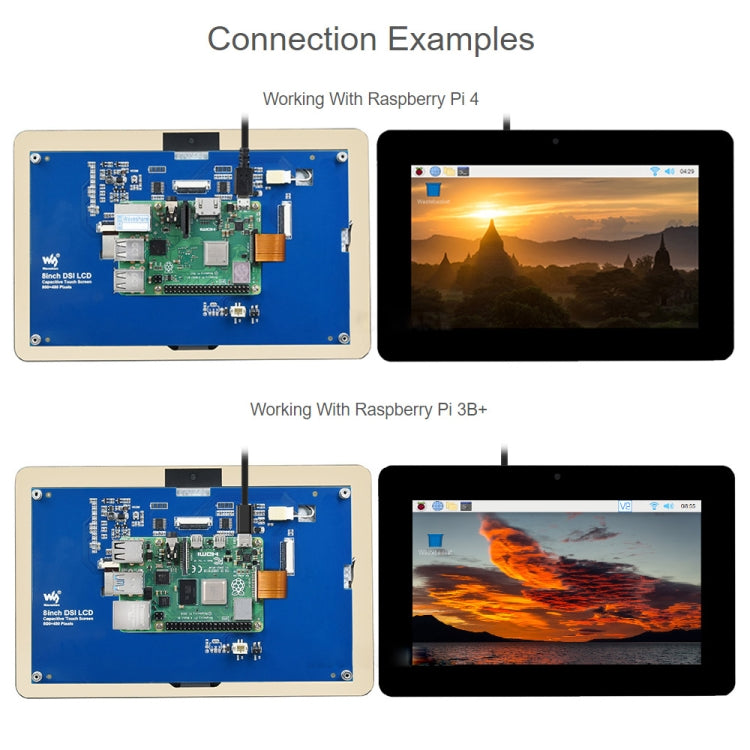

4. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4

Note: CM3/3+/4 requires extra adapter board

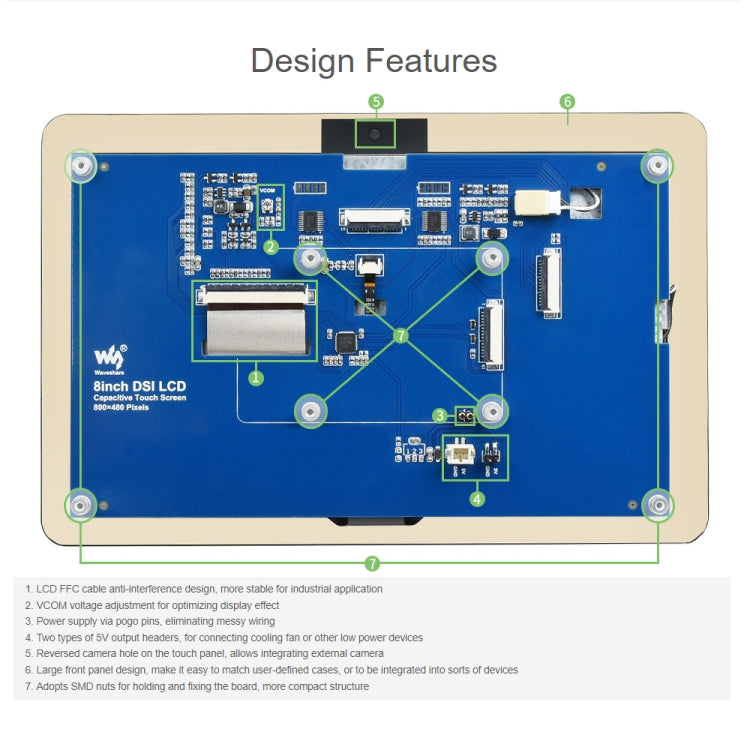

Features
1. LCD FFC cable anti-interference design, more stable for industrial application
2. VCOM voltage adjustment for optimizing display effect
3. Power supply via pogo pins, eliminating messy wiring
4. Two types of 5V output headers, for connecting cooling fan or other low power devices
5. Reversed camera hole on the touch panel, allows integrating external camera
6. Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices
7. Adopt SMD nuts for holding and fixing the board, more compact structure

Package List
1. 8 inch DSI LCD x 1
2. FPC 15 PIN 1.0 pitch 50mm (opposite sides) x 2
3. 2 PIN wire 10cm x 1
4. Screws pack x 1
