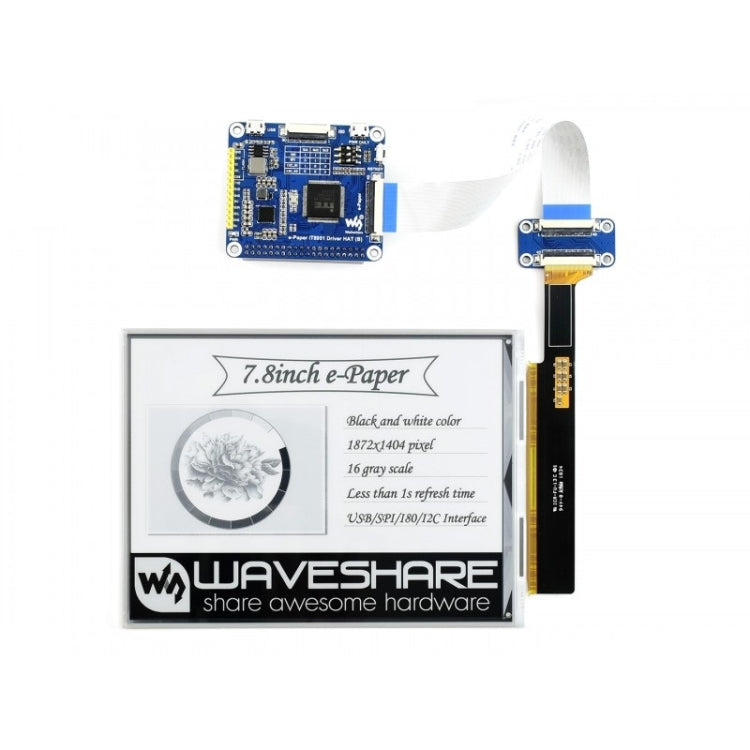

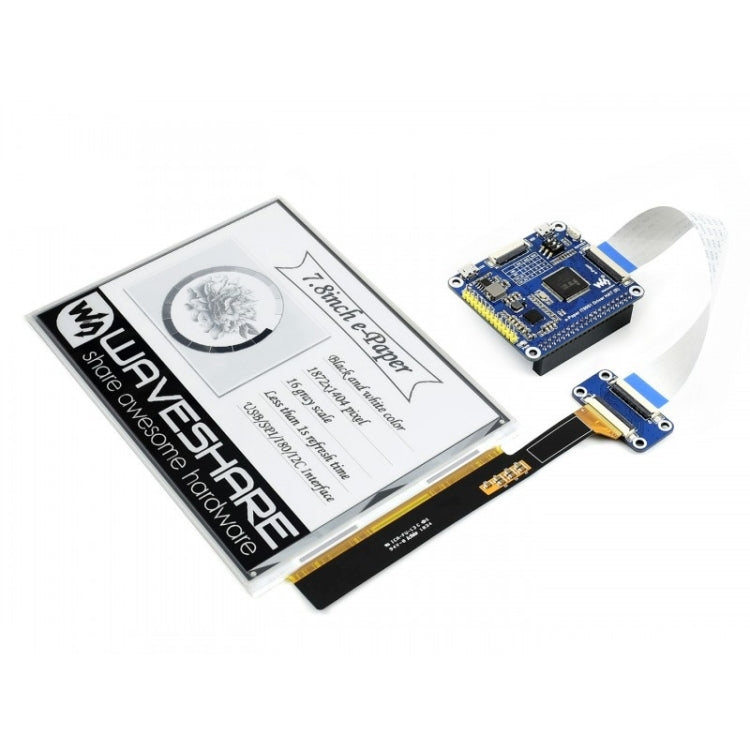

Waveshare 7.8 inch 1872x 1404 E-Ink Display HAT for Raspberry Pi

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi
• Material: Not specified
• Key feature: Low power consumption
• Color/Variant: Black, white
• Intended use: Everyday use
• Category: Consumer Electronics

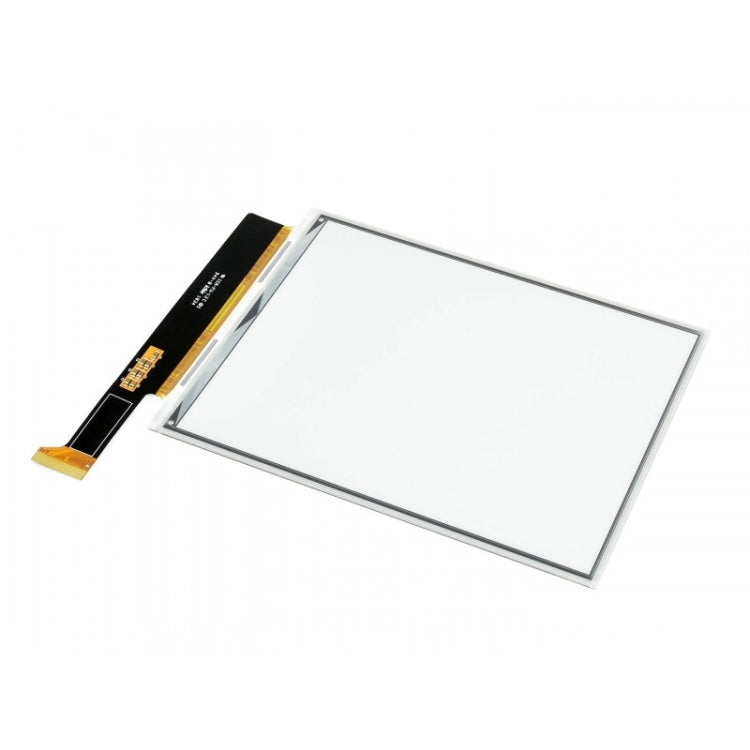

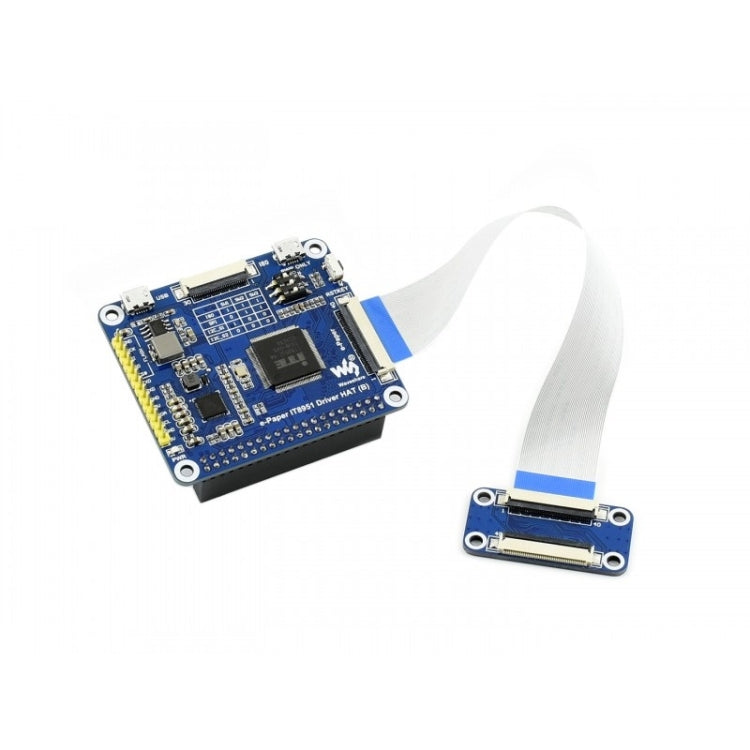

Overview1. This is an E-Ink display HAT for Raspberry Pi, 7.8 inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.2. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.Features1. No backlight, keeps displaying last content for a long time even when power down2. Low power consumption, basically power is only required for refreshing3. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards4. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.5. Comes with development resources and manual (examples for Raspberry Pi/STM32)Specifications1. Operating voltage: 5V2. Interface: USB/SPI/I80/I2C3. Outline dimension: 173.8mm x 127.6mm x 0.78mm4. Display size: 158.184mm x 118.638mm5. Dot pitch: 0.0845mm x 0.0845mm6. Resolution: 1872 x 14047. Display color: Black, white8. Gray scale: 2-16 (1-4 bit)9. Full refresh time: 450ms10. Total refresh power: 1.2W(typ.)11. Total standby power: 0.1W(typ.)12. Viewing angle: >170 degree13. Weight: 77gPacking List:1. 7.8 inch e-Paper x12. e-Paper IT8951 Driver HAT (B) x13. 7.8 inch e-Paper Adapter x14. 33PIN FFC (same side contact) x15. USB type A plug to micro B plug cable x26. PH2.0 20cm 8Pin x17. RPi screws pack (2pcs) x1
