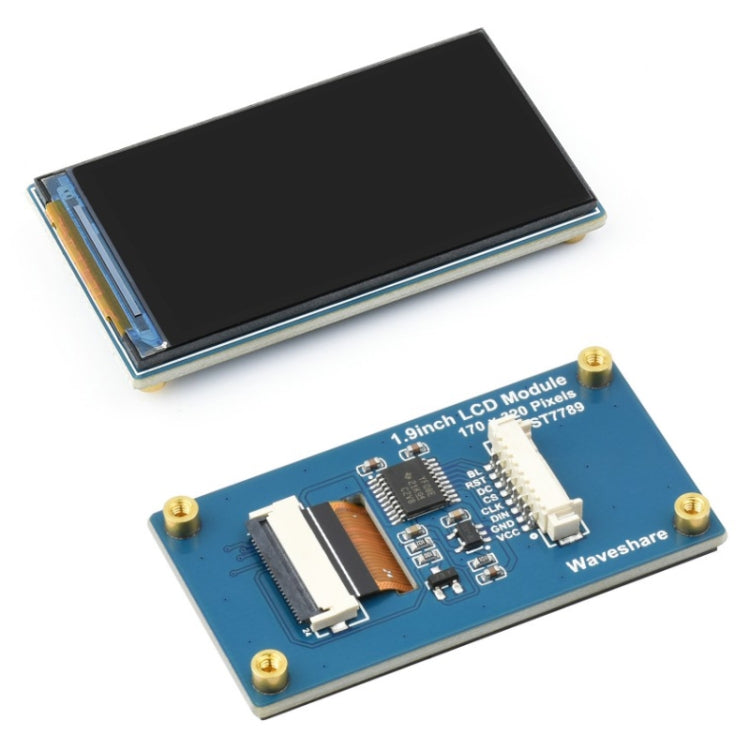

Waveshare 1.9inch 262K Colors 170x320 LCD Display Module for Raspberry Pi Pico, SPI Interface, 23822
Waveshare 1.9inch 262K Colors 170x320 LCD Display Module for Raspberry Pi Pico, SPI Interface, 23822
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
Features:
1. Embedded ST7789V2 driver chip, using SPI interface

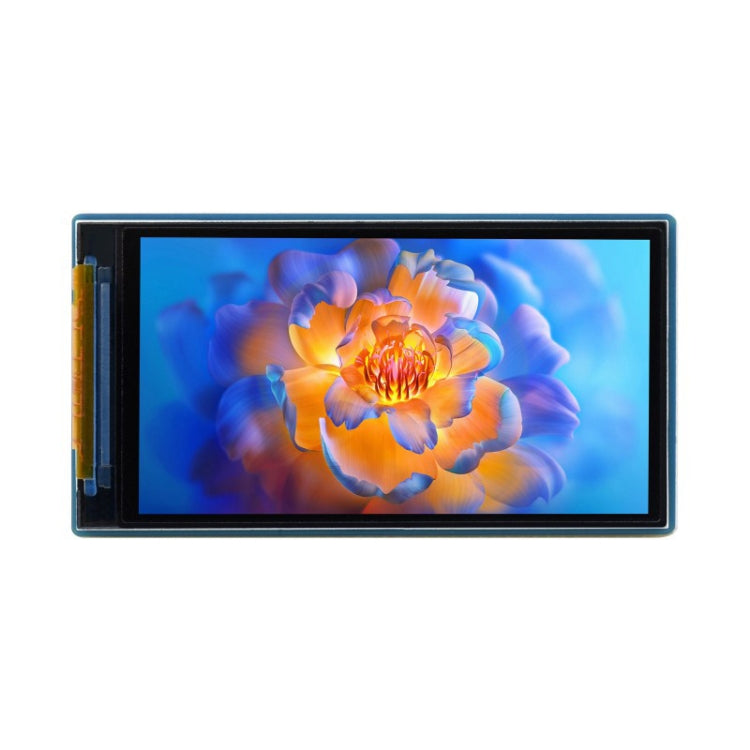

2. 170x320 resolution, 262K colors, clear and colorful displaying effect

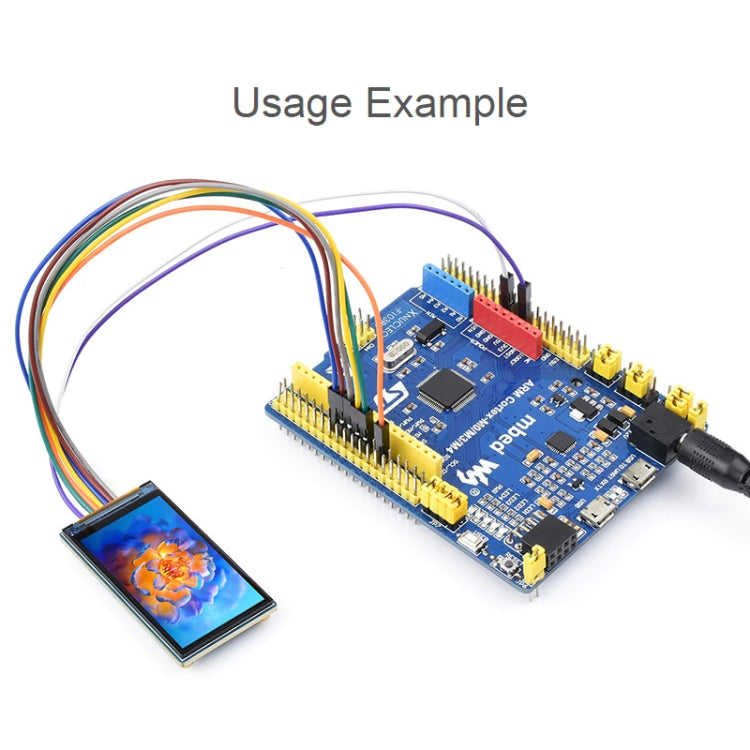

3. SPI interface, minimizes required IO pins, supports controller boards like for Raspberry Pi/Arduino/STM32
4. Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

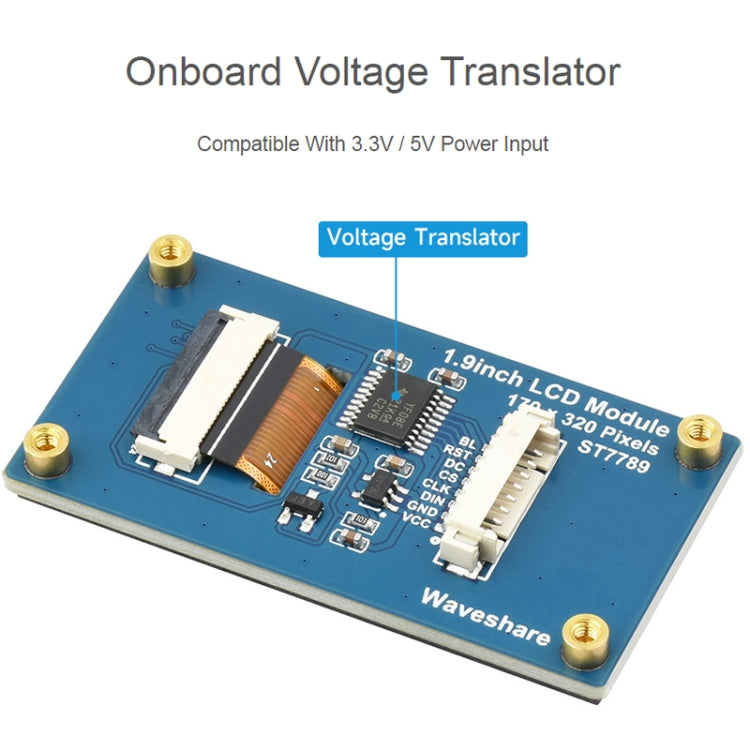

5. Onboard voltage translator: compatible with 3.3V / 5V power Input

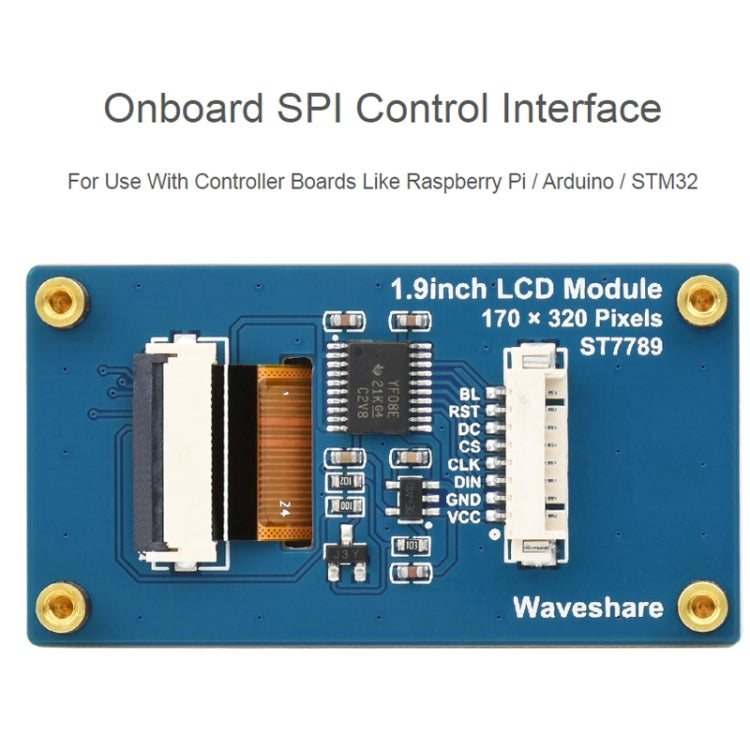

6. Onboard SPI control interface: for use with controller boards like for Raspberry Pi / Arduino / STM32
Specifications:
1. Operating voltage: 3.3V / 5V
2. Resolution: 170 x 320 pixels
3. Communication interface: 4-wire SPI
4. Display panel: IPS
5. Driver: ST7789V2

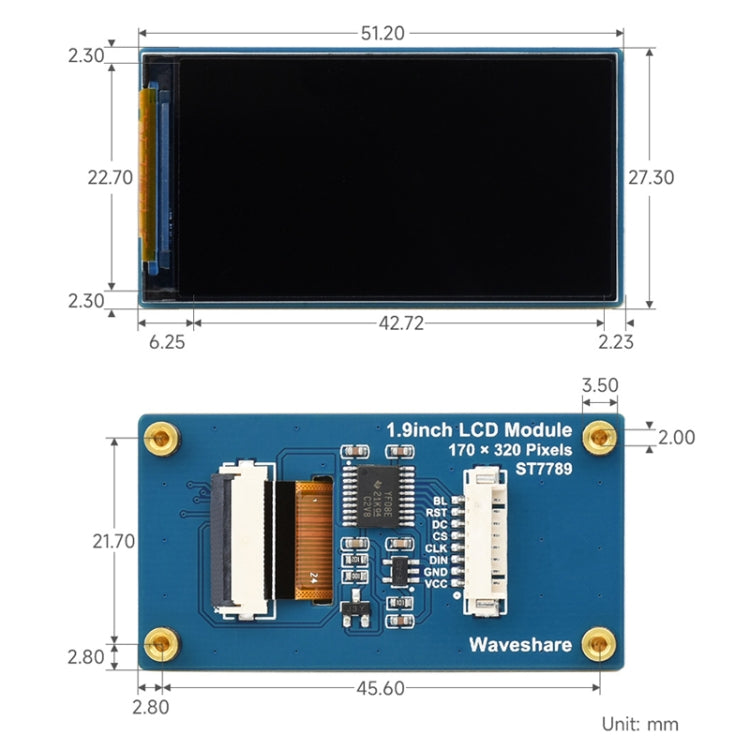

6. Display size: 22.70 × 42.72 mm
7. Pixel size:0.1335 × 0.1335 mm
8. Module size: 27.3 × 51.2mm
- BL: Backlight
- RST: Reset, low active
- DC: Data/Command selection (high for data, low for command)
- CS: Chip selection, low active
- CLK: SPI clock input
- DIN: SPI data input
- GND: Ground
- VCC: Power (3.3V / 5V input)
