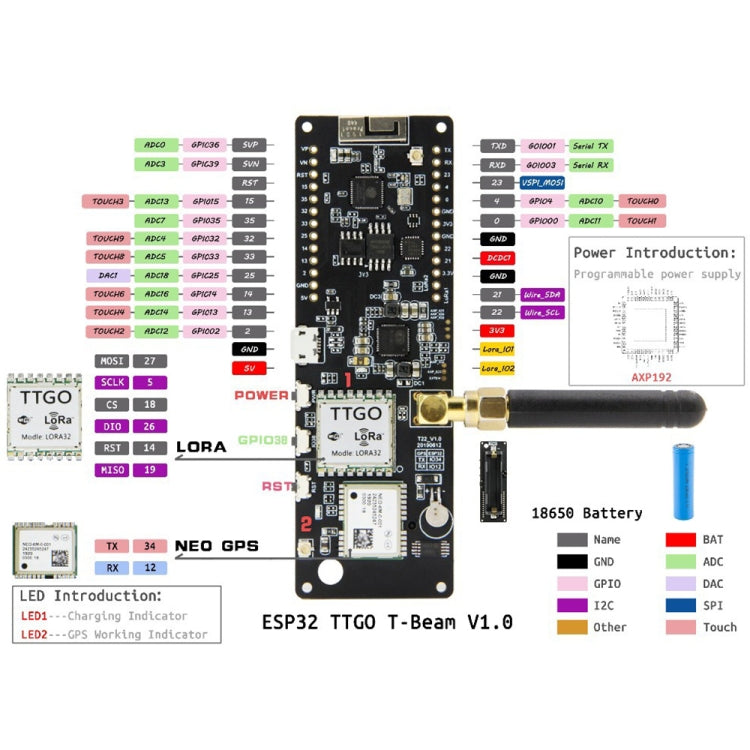

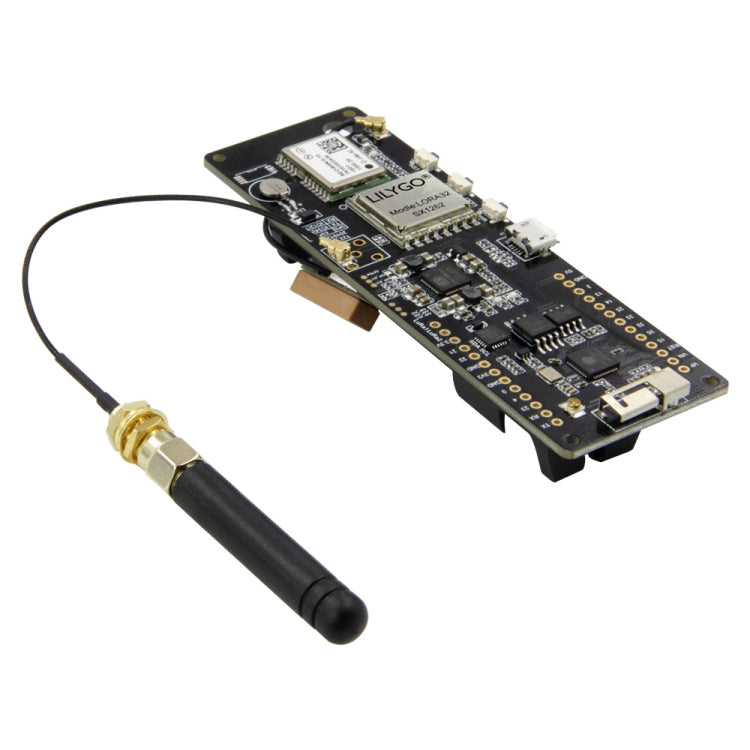

TTGO T-Beam ESP32 Bluetooth WiFi Module 868MHz GPS NEO-M8N LORA 32 Module with Antenna & 18650 Battery Holder

TTGO T-Beam ESP32 Bluetooth WiFi Module 868MHz GPS NEO-M8N LORA 32 Module with Antenna & 18650 Battery Holder

Regular price R 1,409.00
Regular price Sale price R 1,409.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. New version of ESP32: REV1
2. Wi-Fi/Bluetooth/4MB flash memory/4MB PSRAM/3D antenna/LORA

Product description
1. Working voltage: 1.8~3.7v
2. Acceptable current: 10~14mA
3. Emission current:
-120mA at +20dBm
-90 mA at +17dBm
-29mA at +13dBm
4. Working frequency: 868MHz version SX1276
5. Transmitting power: + 20dBm
6. Receiving sensitivity:
- 139dBm at LoRa and 62.5Khz & SF = 12 and 146bps
- 136dBm at LoRa and 125Khz&SF = 12 & 293bps
- 118dBm at LoRa & 125Khz & SF = 6& 9380bps
- 123dBm at FSK & 5Khz & 1.2Kbps
7. Frequency error: +/- 15KHz
8. FIFO space: 64Byte
9. Data rate:
- 1.2K~300Kbps at FSK
- 0.018K~37.5Kbps in LoRa
10. Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
11. Interface form: SPI
12. Sleep current:
- 0.2uA in SLEEP
- 1.5uA in IDLE
13. Working temperature: -40 degrees Celsius-+ 85 degrees Celsius
14. Digital RSSI function
15. Automatic frequency correction
16. Automatic gain control
17. RF wake-up function
18. Low pressure detection and temperature sensor
19. Fast wake-up and frequency hopping
20. Highly configurable packet handler

Global Positioning System

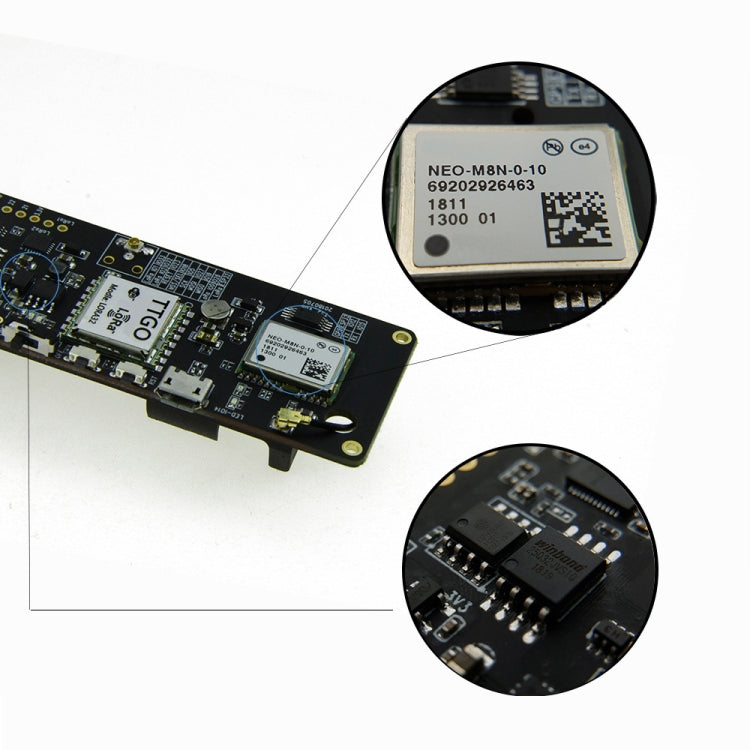

1. GPS module NEO-M8N, 3V-5V power supply universal
2. Designated module with ceramic antenna, super strong signal
3. Save configuration parameter data EEPROM Down
4. With data backup battery
5. With LED signal indicator
6. The default baud rate: 9600

Power
1. TP5400
2. 2A battery management
3. LED indicator: There are 4 LEDs to display the battery status in real time.
4. Power button: Click once to start. Tap twice quickly to close.
5. USB
6. CP2104-GMR
7. Pre-flash firmware: SoftRF V4.0

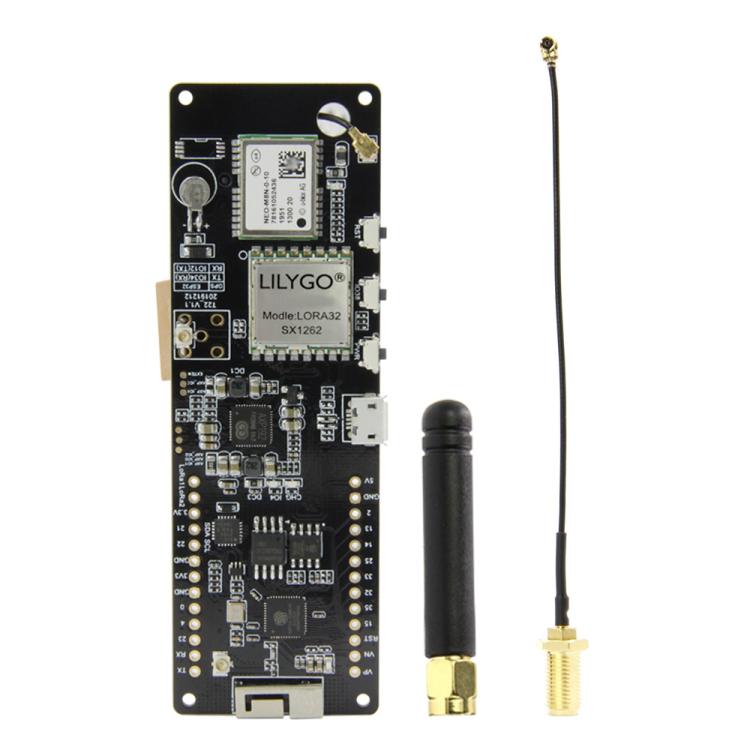

Packing list:
1. TTGO T-Beam ESP32
2. 433MHz antenna
3. Pin x 1
4. Screw Washer x 3

Note: OLED is not included in the invoice
