Description

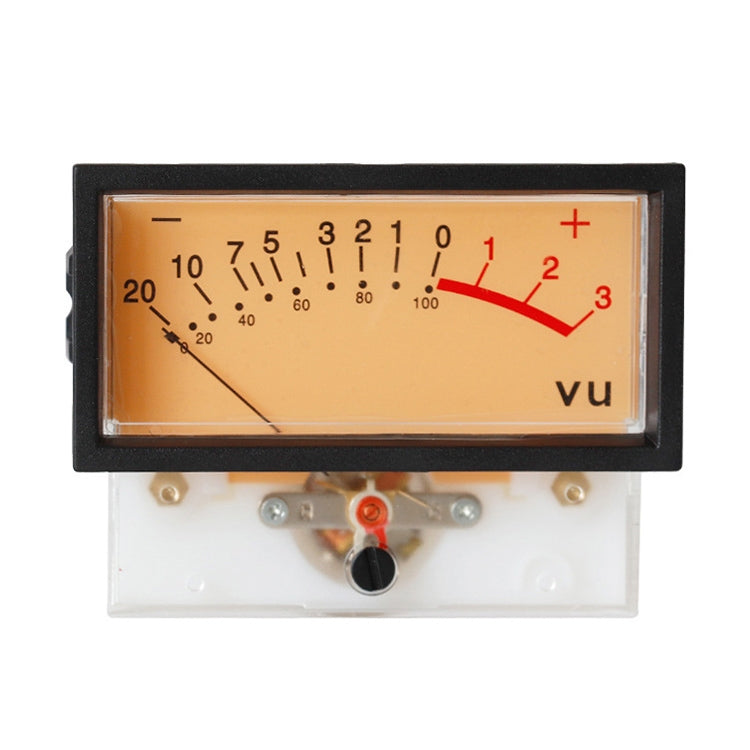

High-precision VU meter designed for measuring power discharge in mixers. It is suitable for applications requiring precise monitoring of audio levels in professional audio equipment.
- Movable part: movable coil type
- Pointer materials: Nickel Silver Strips
- Pointer color: Black
- Pointer swing direction: From left to right
- Pointer length: 30 +/- 1 mm
- Pointer width: 0.45 +/- 0.05 mm
- Direction of use: Vertical
- Operating temperature range: -10°C to +60°C
- Storage temperature range: -20°C to +60°C
- Humidity range: 35% to 85% RH
- Solder condition: Terminal insertion depth of 3 mm at 230°C for 3.5 seconds
- Solder temperature: 350°C for 3.5 seconds
- Anti-static test: Pointer difference below 1/3 of scale length
- Light bulb specification: DC 12V, 12W
- Standard test conditions: 20°C, 70% humidity
- Pointer sensitivity: 1 mA +/- 5%
- Internal impedance: 50 ohm +/- 5%
- Insulation impedance: above 500V DC, 50 M ohm
- Zero position tolerance: +/- 1 mm
- Equalization tolerance: +/- 1 mm
- Stick pointer response: Returns to 1/3 of scale after overcurrent
- Friction error range: +/- 1 mm
- Braking response: Instantly indicates 2/3 of dial current
- Overload test: Ten times full scale current input
- Vibration test: 4 mm shake at 1,000 times per minute
- Impact test: Drop from 30 cm onto a 3 cm thick board
- Reliability test: 100,000 correction point current inputs
- Environmental impact test: 50°C, 85% humidity for 100 hours
- Terminal tension test: 1 kg tension for 60 seconds
