Standalone Keypad Access Control System (7612)(Silver)
Standalone Keypad Access Control System (7612)(Silver)
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
* Technical Specification:
** Operating Voltage:
1) 12VDC From a Regulated Power Supply Input current:
2) Standby: 40mA Not including attached devices
3) Max: 130mA Not including attached devices

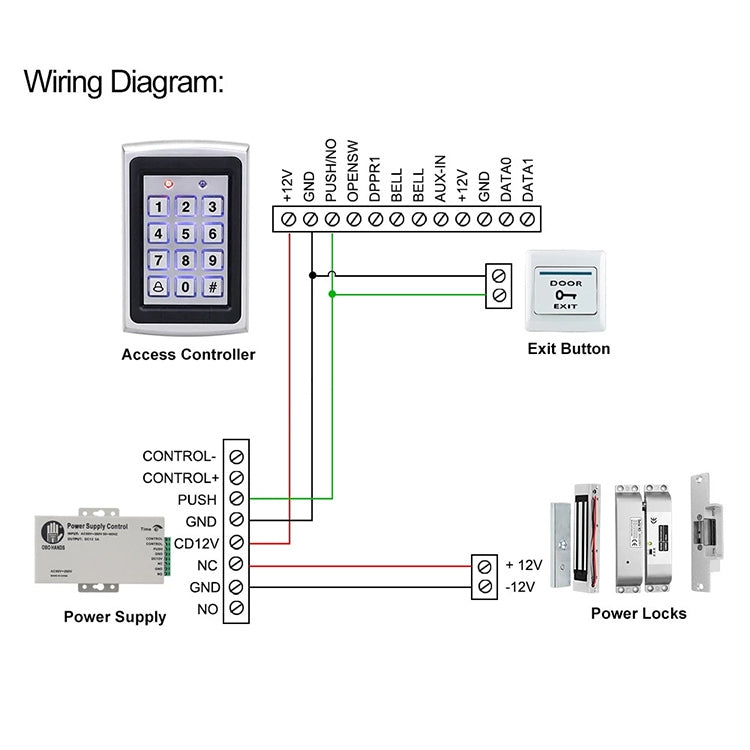

** Outputs:
1) Lock Strike Relay From C, 5A
2) Auxiliary Relay From C, 5A
3) LockStrike Control Output Collector Open Output (25mA)
4) Auxiliary Control Output Collector Open Output (25mA)
** Inputs:
1) REX: N.O.,Dry Contact
2) Auxiliary Input (In/Monitor): N.C.,Dry Contact in
Monitor Mode: N.O.Dry Contact Input Mode
** Built-in Proximity reader
1) Read Range: 65mm
2) Modulation: ASK at 125 kHz
3) Compatible Cards: ALL 26-Bit EM Cards
** Mechanical Characteristics
1) Dimentions: 120L*76W*27Hmm
2) Weight: 450g
Range also depends on electrical environment and proximity to metal.
* Features:
1) Built-in Proximity Card Reader (125KHZ ASK Modulation)
2) Built-in Keypad for PIN Code entry
3) Auxiliary Input & Auxiliary Output
4) Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure
5) Internal Buzzer

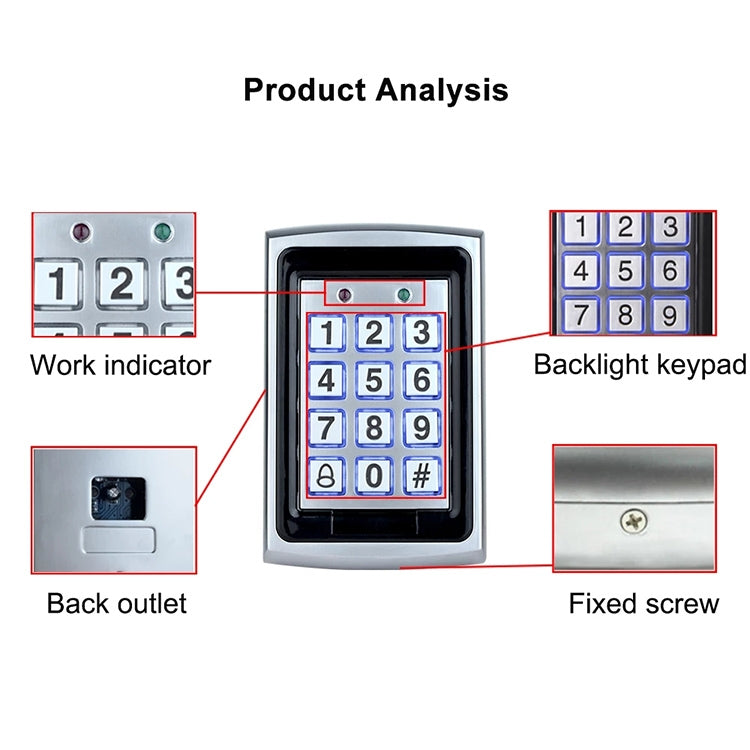

6) Two Status/Programming Interface LED'S
7) Two Modes of Operation: Normal Mode; Secure Mode
8) Three User Levers: Normal User; Secure User; Master User

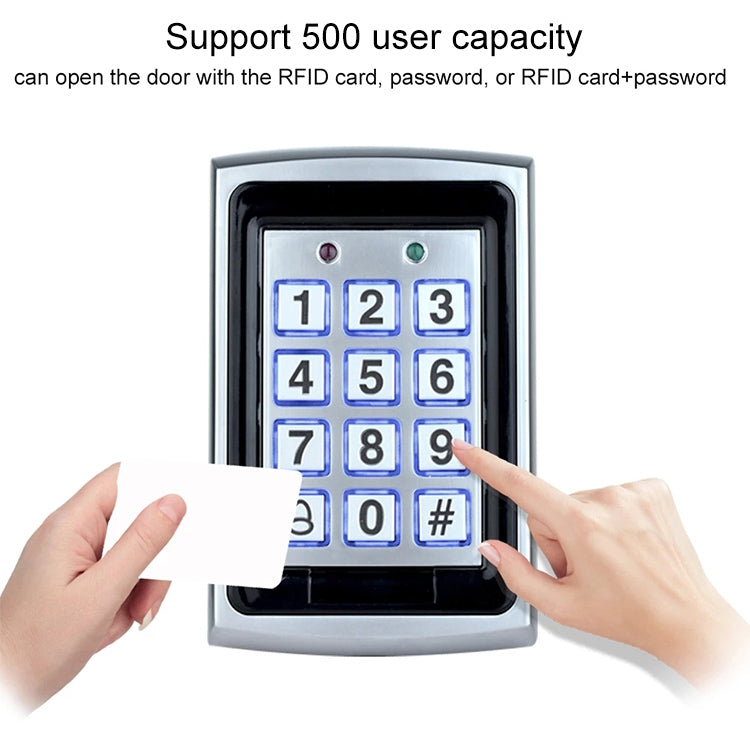

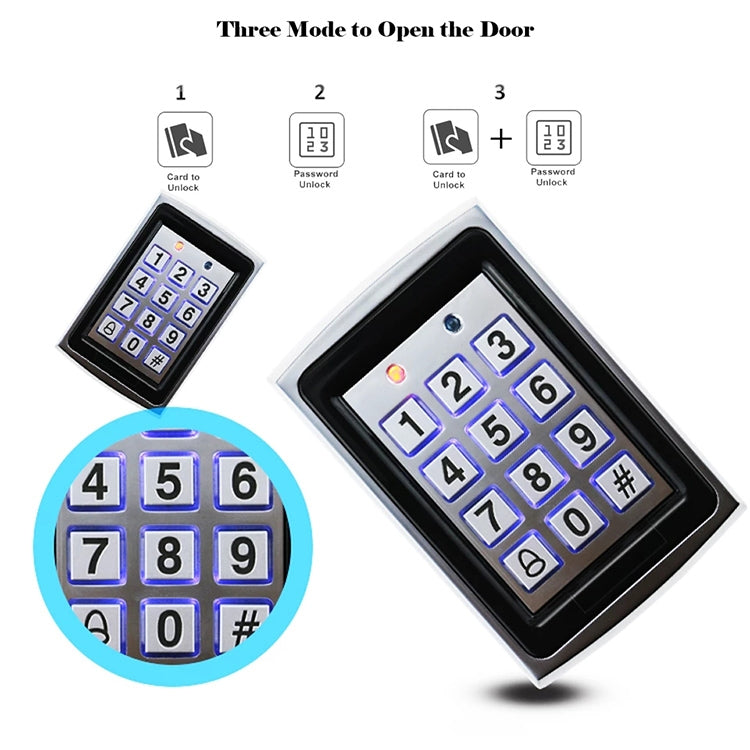

9) Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card
10) Code search Feature that helps make maintaining user codes easier.
11) Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies.
12) Programmable Siren Time.
13) Programmable Lock Strike Release Time.
