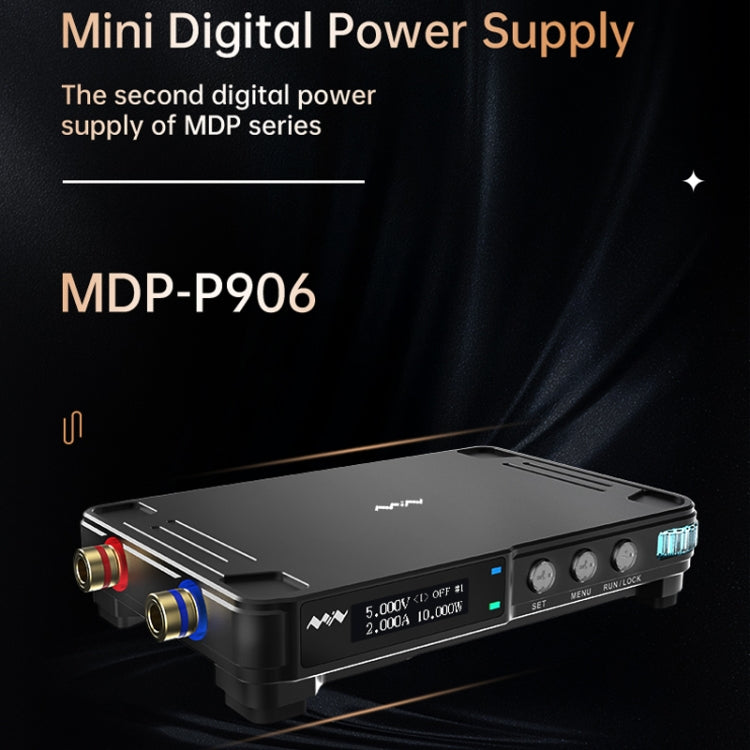

MINIWARE Rise And Fall Linear Switching DC Mini Digital Power Module, Model: MDP-P906

• Product type: Power Module
• Brand: MINIWARE
• Compatibility: MDP-P906
• Material: Aluminum alloy
• Key feature: Built-in silent cooling fan
• Intended use: Everyday use
• Category: Arduino & SCM Supplies

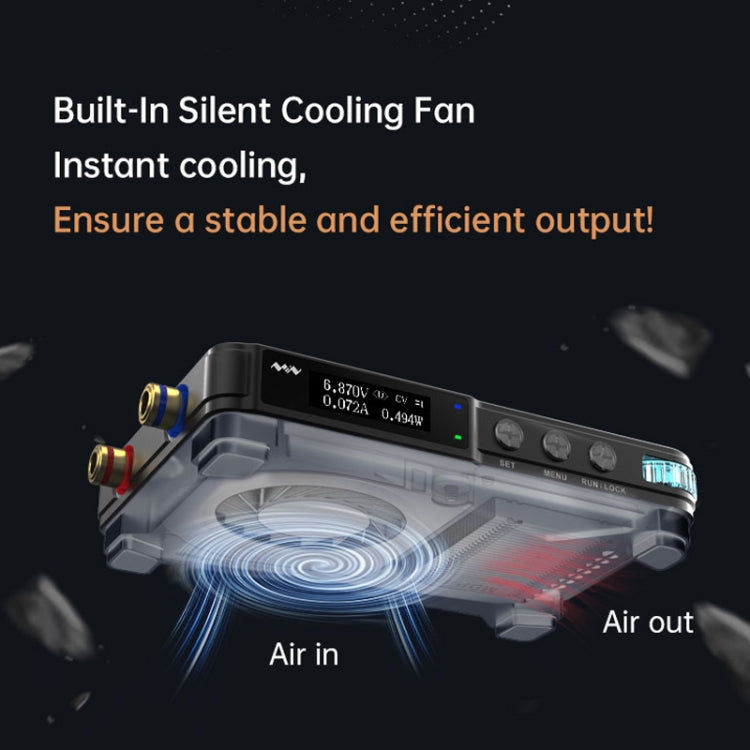

1. Built-in silent cooling fan, fast heat dissipation to ensure stable and efficient output

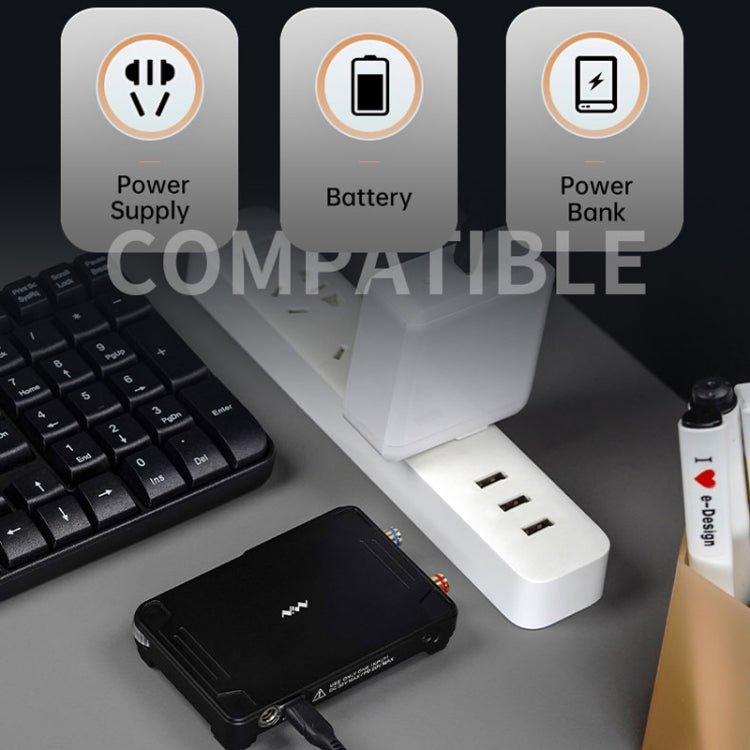

2. Compatible with a variety of mobile power supply, maintenance and debugging at any time and anywhere

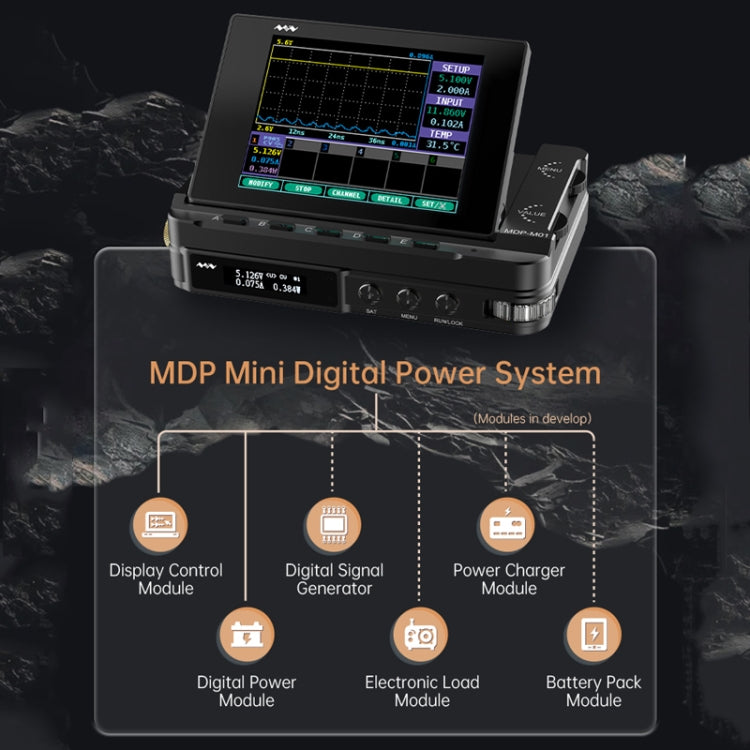

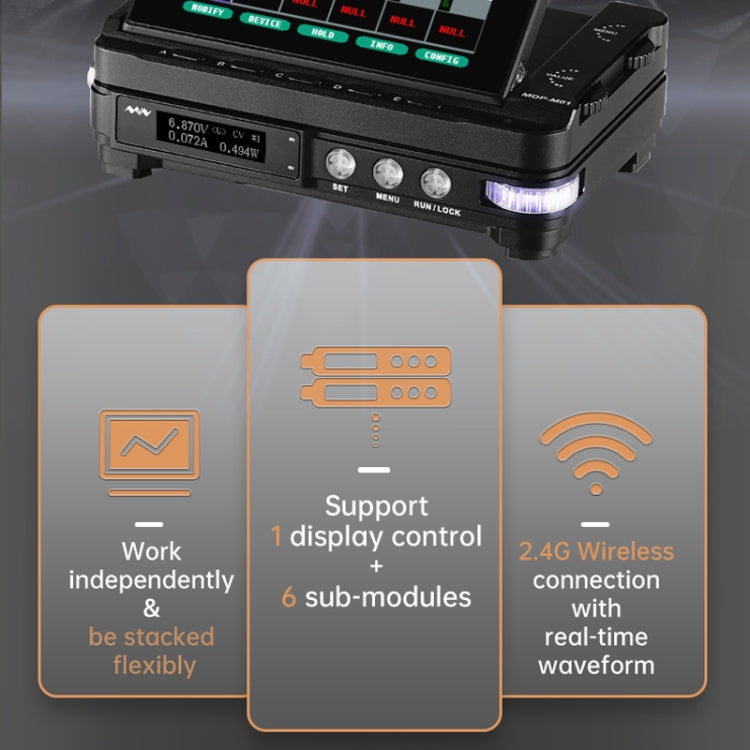

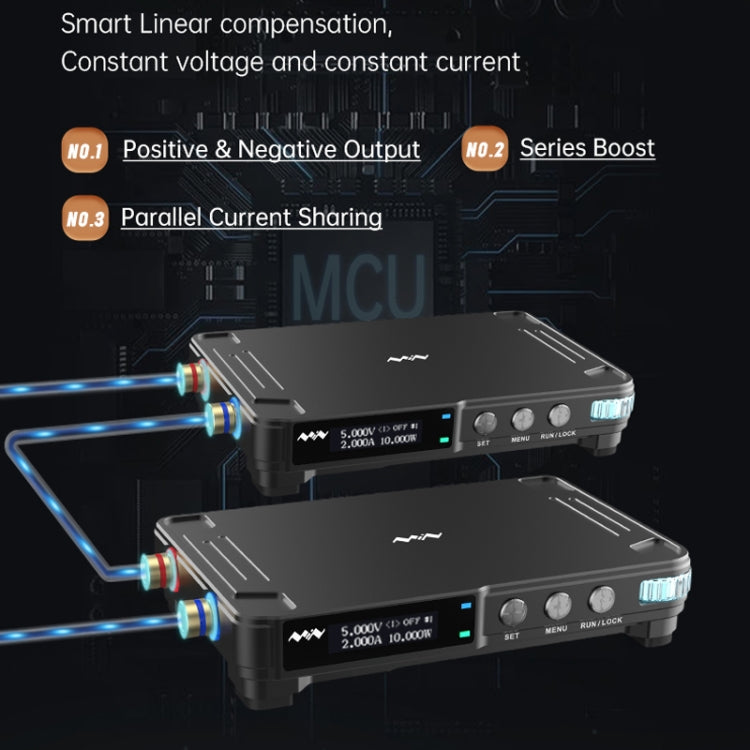

3. Can work independently or stacked flexibly
4. Mini size, higher sensitivity

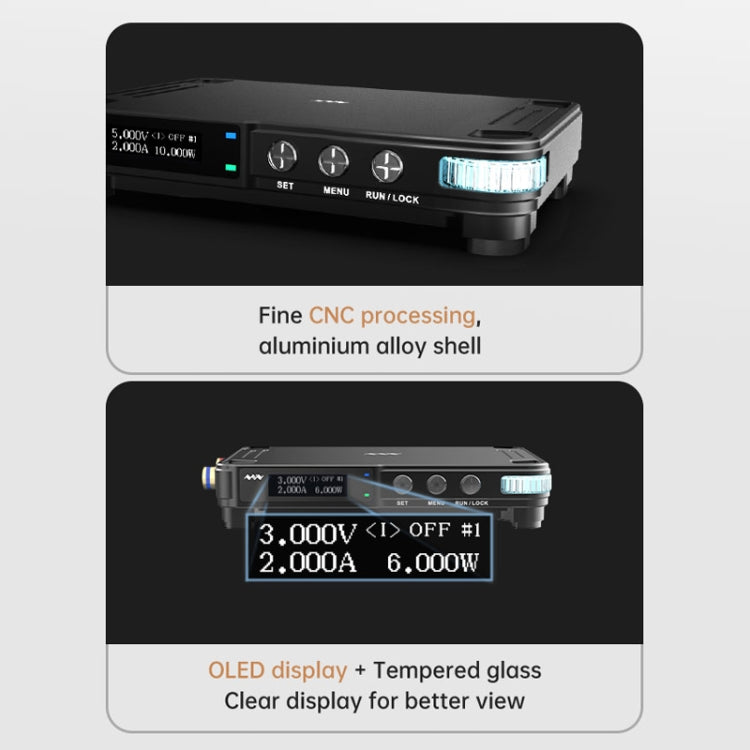

5. Precision CNC machining, full aluminum alloy plating shell, durable and rust resistant
6. OLED display, tempered glass surface for clearer display

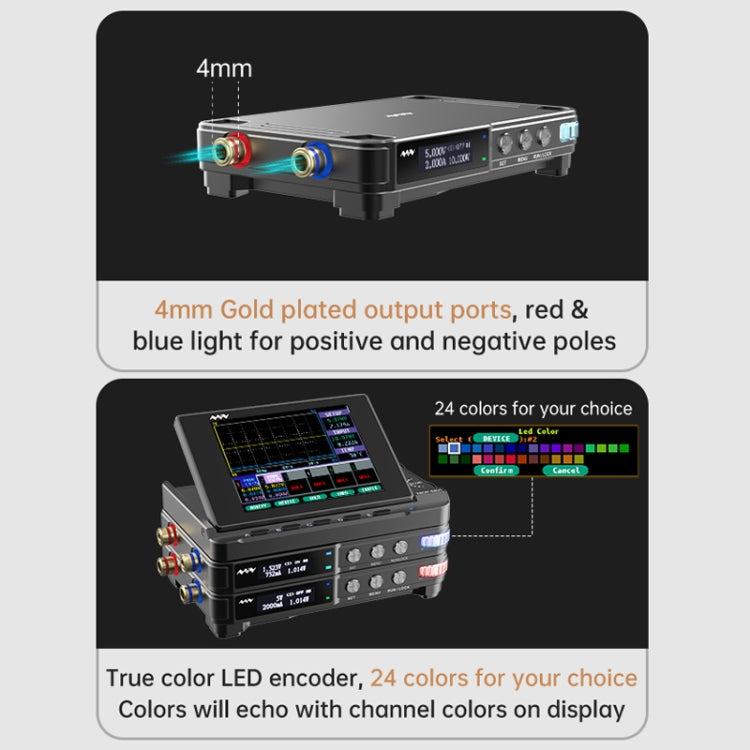

7. 4mm gold-plated output connector, positive and negative red and blue status indicators
8. 24-color colorful light dial wheel set up at will, the display and control interface color block and its intelligent echo when on-line
9. Built-in high-performance MCU chip, powerful function

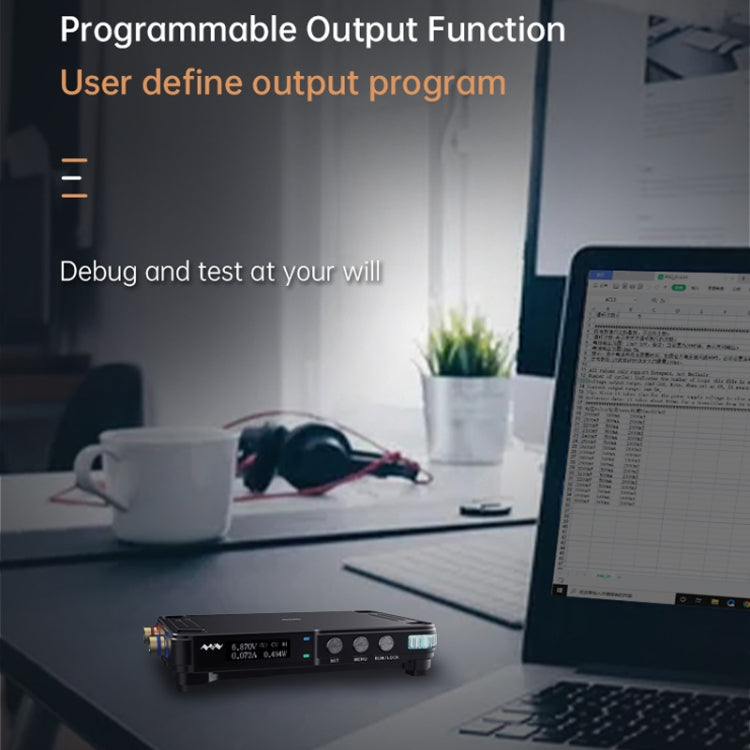

10. Programmable output advanced features, custom program output law
11. Can be preset parameters and firmware upgrades, a wide range of application scenarios
Parameters:
1. Input: DC4.2V-30V 14A; QC3.0/PD2.0 20V 5A
2. Output: 0-30V 0-10A 300W
3. Conversion efficiency: 95 percent
4. Output resolution: 10mV, 2mA; through the line control module settings up to 1mV, 1mA
5. Output accuracy: 0.03 percent+5mV, 0.05 percent+2mA
6. Adjustment rate: Load adjustment rate is less than +/-0.01 percent; power supply adjustment rate is less than +/-0.01 percent

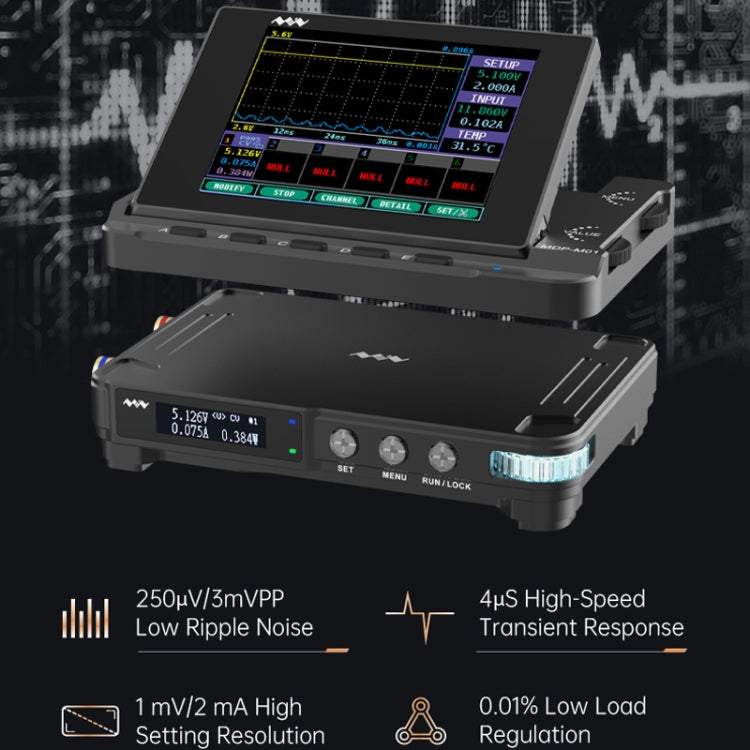

7. Ripple and noise: less than 250uVrms, 3mVpp; less than 2mArms
8. Transient response time: less than 4uS
9. Safety protection: input overvoltage, undervoltage, reverse connection protection, output overcurrent, backflow, over-temperature protection
10. Other features: automatic shutdown, enter micro-power mode, support USB firmware upgrade

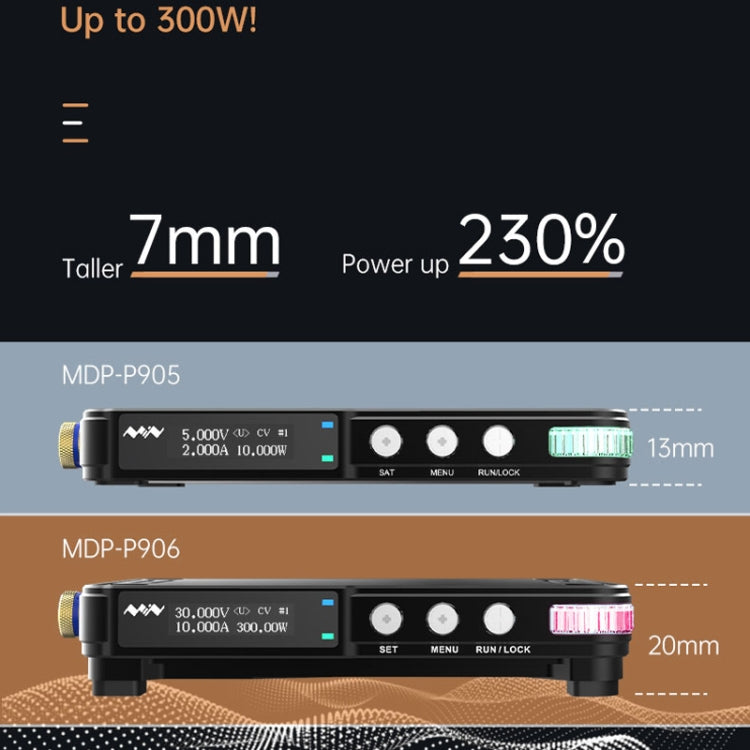

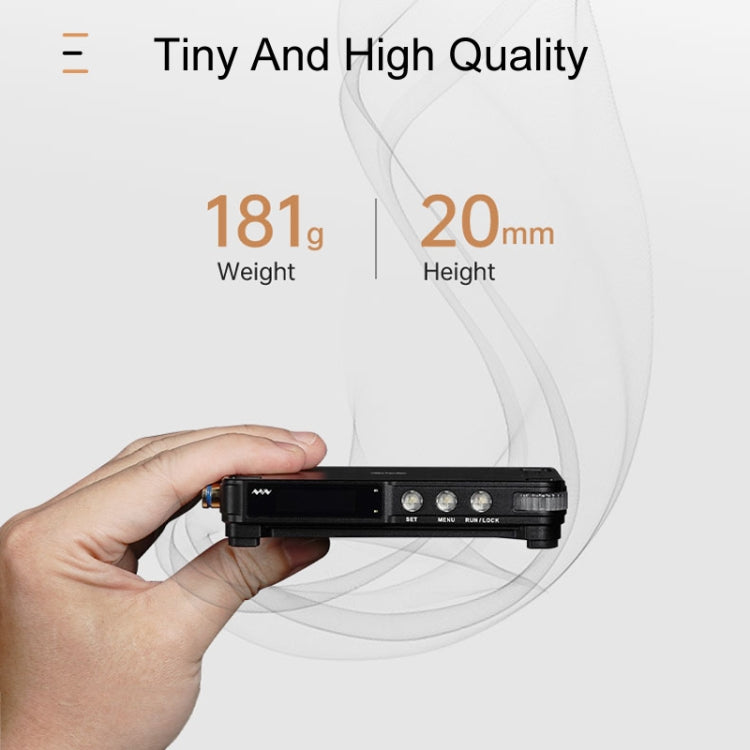

11. Size: 112 x 66 x 20mm
12. Weight: 181g

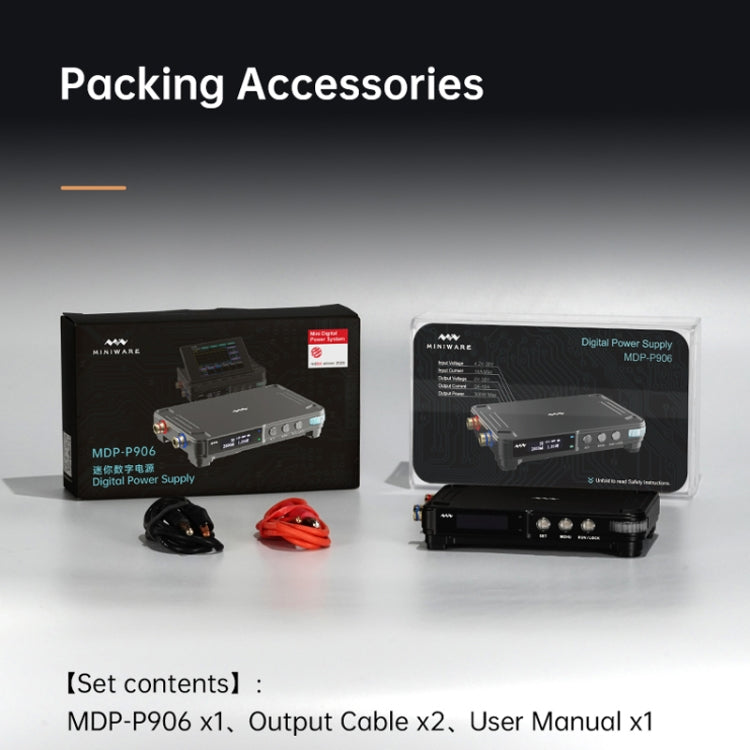

Packing list:
- MDP-P906 x 1
- Output data cable x 2
- Instructions for use x 1
