Description

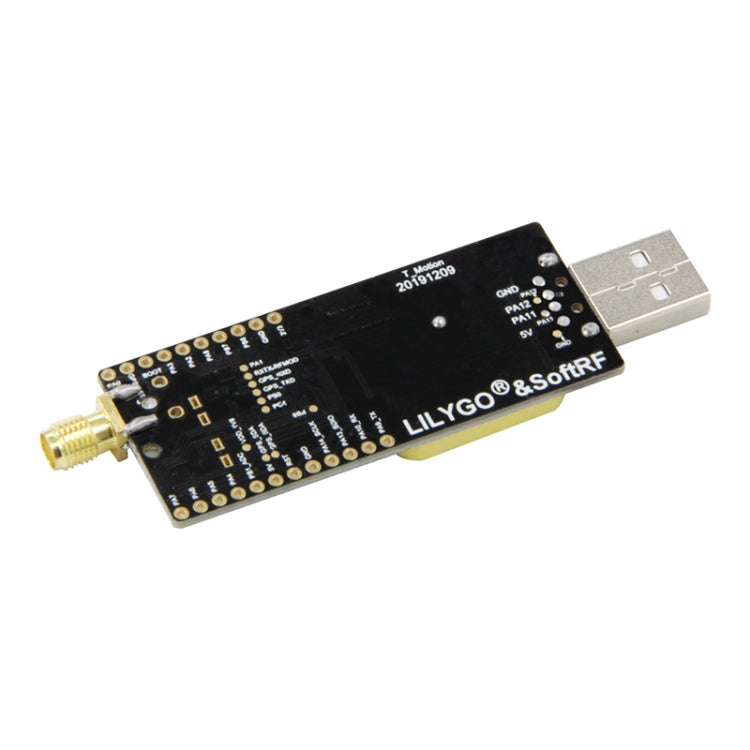

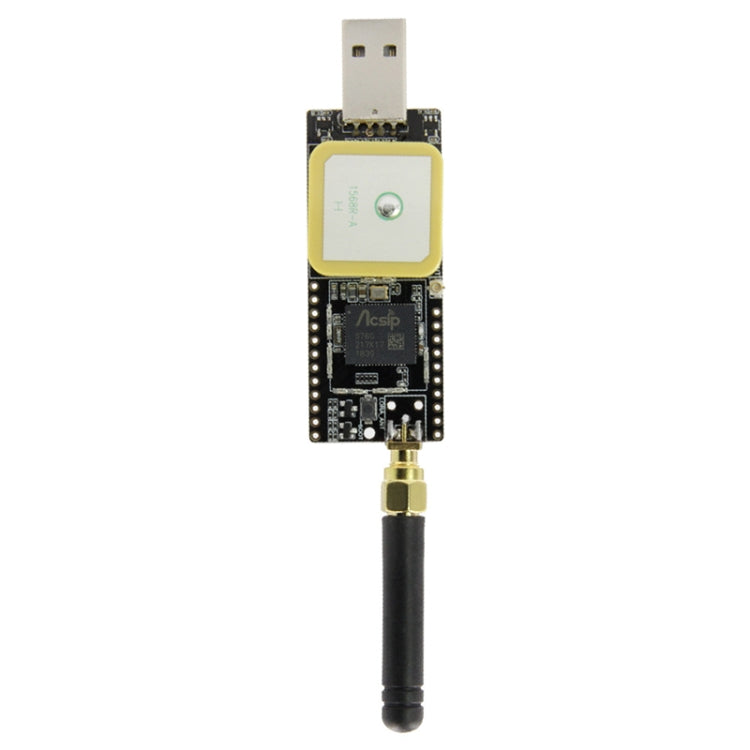

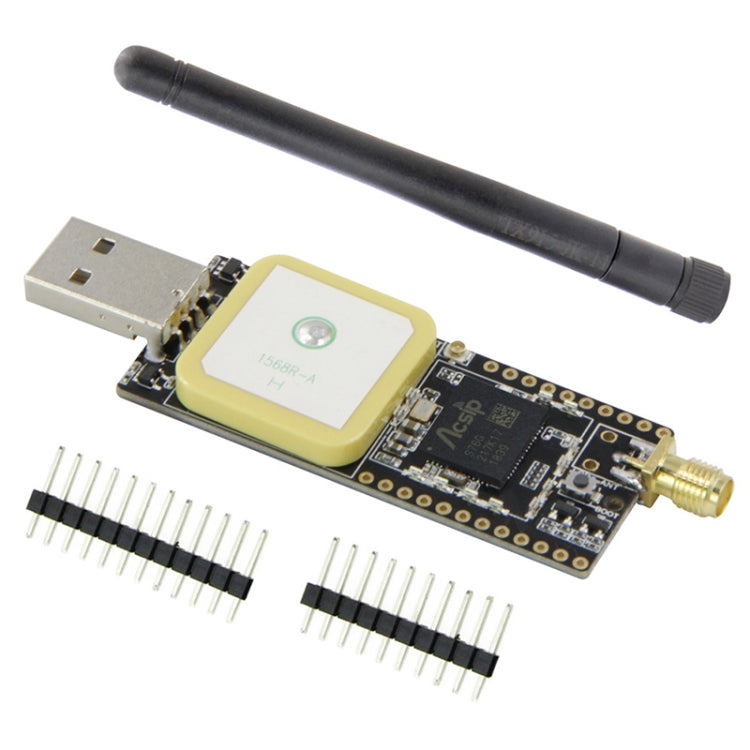

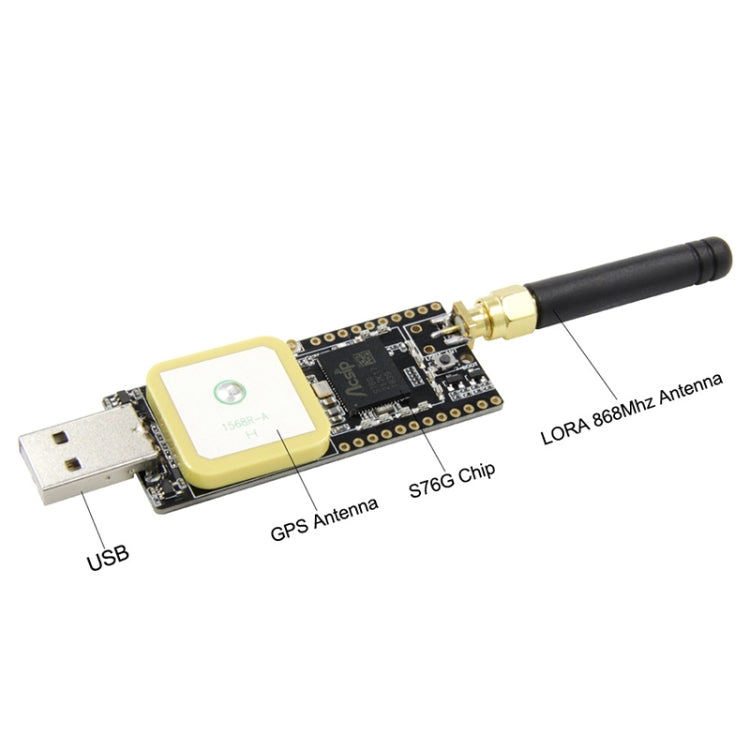

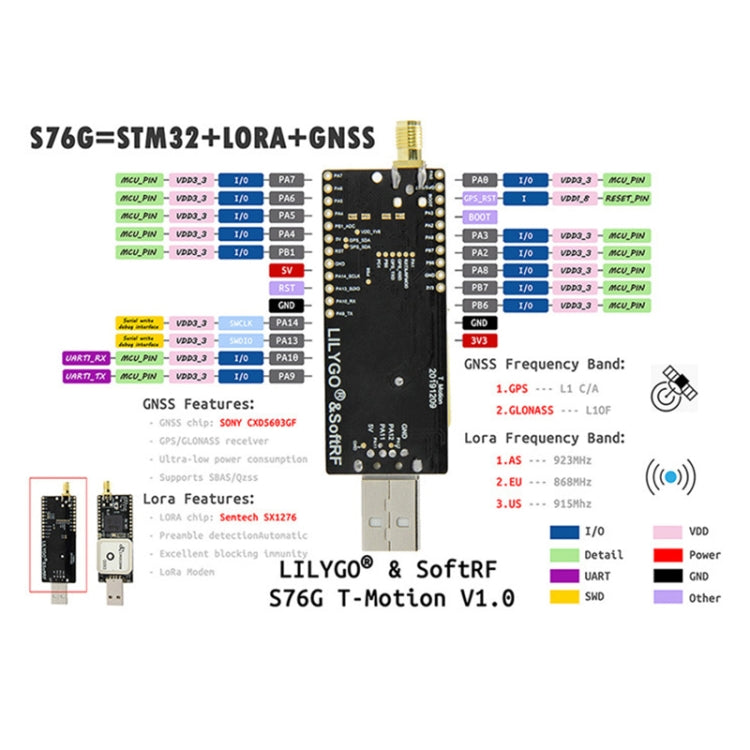

The LILYGO T-Motion V1.0 T-Motion 915 Smart Development Board is a wireless module designed for development and prototyping. It is suitable for applications requiring low-power GNSS and LORA connectivity in various environmental conditions.
- Main Chip: S76G Lora Chip
- Button: BOAT
- Auto Clock: 26 MHz active crystal
- Antenna Model: LORA 868 MHZ GPS Antenna
- Operating Temperature: -45 to 80 Degrees C
- Dimensions: 78.12 x 25.40 x 62.67 mm
- Microcontroller: STM32L073Z
- Microcontroller Architecture: ARM Cortex-M, 32-bit RISC core
- Microcontroller Frequency: 32 MHz
- Flash Memory: 192 kilobytes
- SRAM: 20 kilobytes
- USB Interface: USB2.0 Full Speed Device / Host
- Debugging Interface: Serial Wire Debug (SWD) and JTAG
- LORA Chip: Semtech SX1276
- LORA Modem: Yes
- RF Output: 20 dBm constant
- Programmable Bit Rate: Up to 37500 bps
- High Sensitivity: As low as -137 dBm
- Payload Detection: Up to 128 bytes
- Automatic RF Sensing: Yes
- GNSS Chip: CXD5603GF
- GNSS Receiver: GPS / GLONASS
- Power Consumption: Ultra-low
- Supported Systems: SBAS / QZSS
