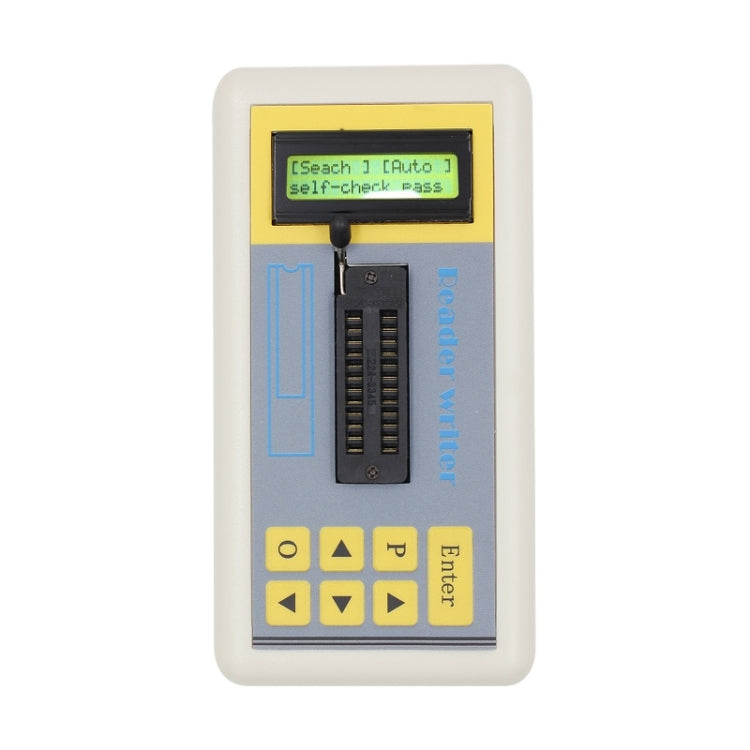

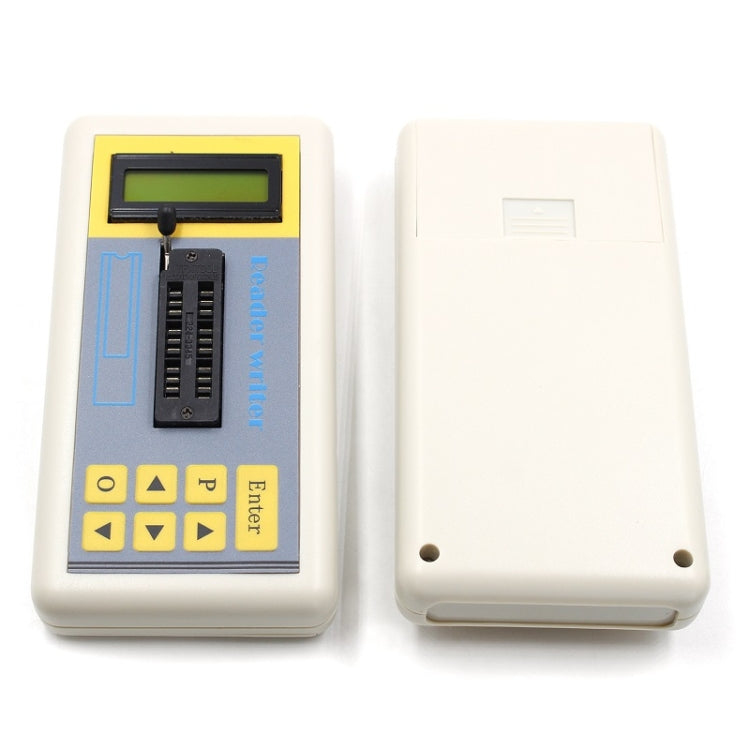

Integrated Circuit Tester Transistor IC Tester, Specification: Host

Integrated Circuit Tester Transistor IC Tester, Specification: Host

Regular price R 1,609.00
Regular price Sale price R 1,609.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

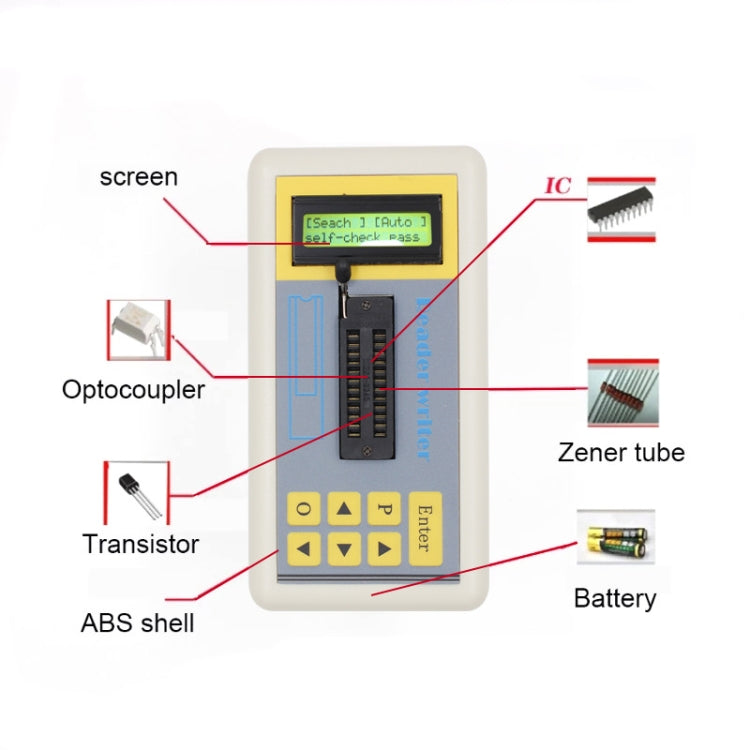

1. Scope of application: can test 74ch series, osmo series, cd4000 series, hef400 series, 4500 series, operational amplifiers, interface chips, optocouplers, automatic transistor identification, voltage regulator voltage identification
2. Integrate more than 1,300 types of chip data models and more than 420 types of transistor data models, covering most common general-purpose devices within 24 pins, which can greatly reduce maintenance workload and improve work efficiency
3. Press the Enter key to turn on the machine for the first time and automatically run a self-test. The self-test detects the battery voltage and displays it on the screen after more than two seconds. When the battery voltage is lower than 7v, replace the battery to ensure the measurement accuracy. If If there is no alarm, the measurement work can be started
4. Nativead 10 ad, the theoretical resolution of 5v voltage is 0.0048v
5. Due to the use of batteries for power supply, it is not suitable for measuring high-power thyristors
6. The Zener value must be based on the actual measurement, not just the nominal value
7. The default directory for initialization is the search directory
8. Different test modes: 5v mode, 3.3v mode, auto mode
9. There are seven buttons on the panel, which are respectively used for up, down, left, right and typing keys and hotkeys o, p
10. The up and down keys are used to adjust the catalog and change the model, and the left and right keys are used to move the cursor left and right to select the item to be changed
11. The input key is used to change the machine and execute the test command

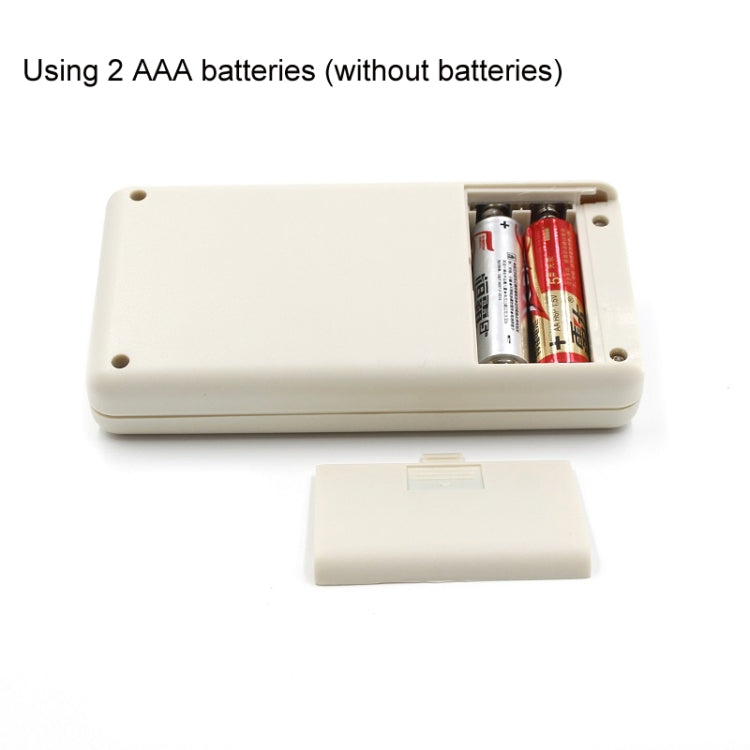

12. Use two AA 1.5v batteries (not included), press Enter for more than 2 seconds to turn on the machine, and the current battery voltage will be displayed automatically when the machine is turned on. When the battery power is too low, replace the battery. Too low voltage will affect the reliability of the test results. and automatic shutdown protection
13. After 60 seconds without any operation, it will automatically shut down
14. Test socket: SOP16 narrow body, SOP20 medium body, SOP24 wide body

The device positioning method is as follows:
1. Place the chip and optocoupler on the top of the alignment, and the 1-pin ic alignment seat
2. The triode on the left, mostly three slots
3. The 13 and 14 pins of the ic regulator are placed
Note: Transistor display pin sequence from left to right corresponds to 10-foot, 11-foot, 12-foot ic block (not built-in battery or adapter)
