Description

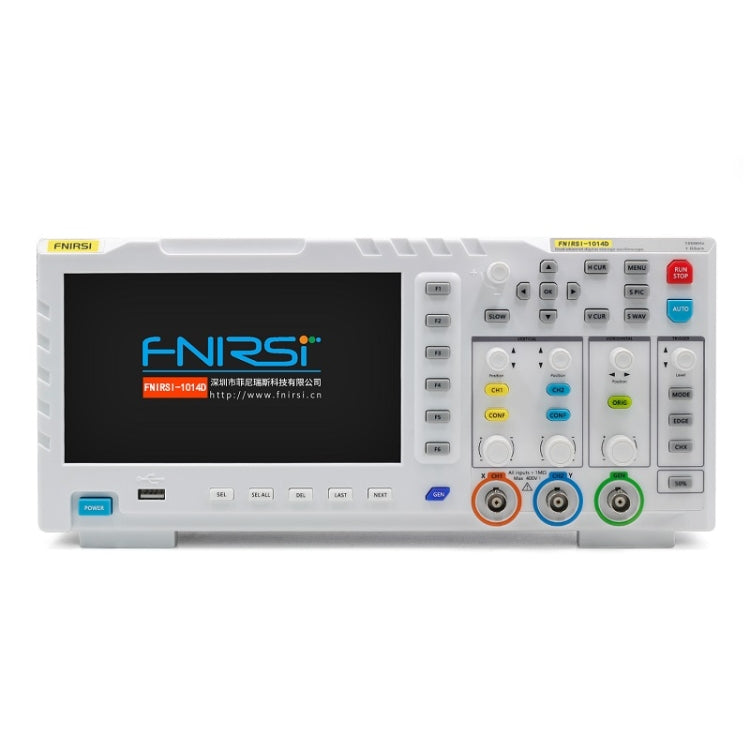

The FNIRSI 1014D is a dual-channel digital oscilloscope with a built-in signal generator. It is suitable for measuring both periodic analog signals and non-periodic digital signals.
This oscilloscope can be used in electronics labs for testing and analyzing circuit behavior, providing accurate waveform measurements and storage capabilities.

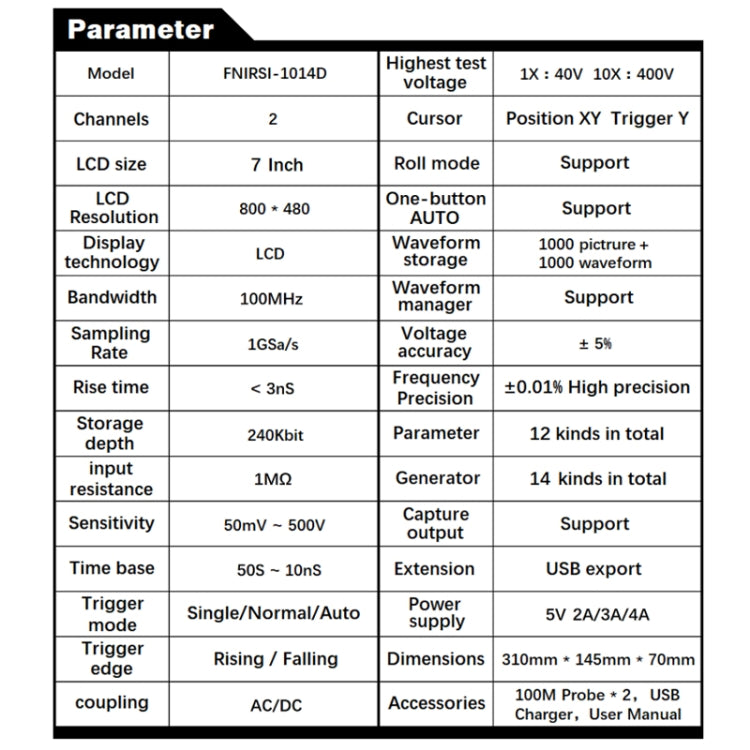

- Type: Dual-channel digital oscilloscope

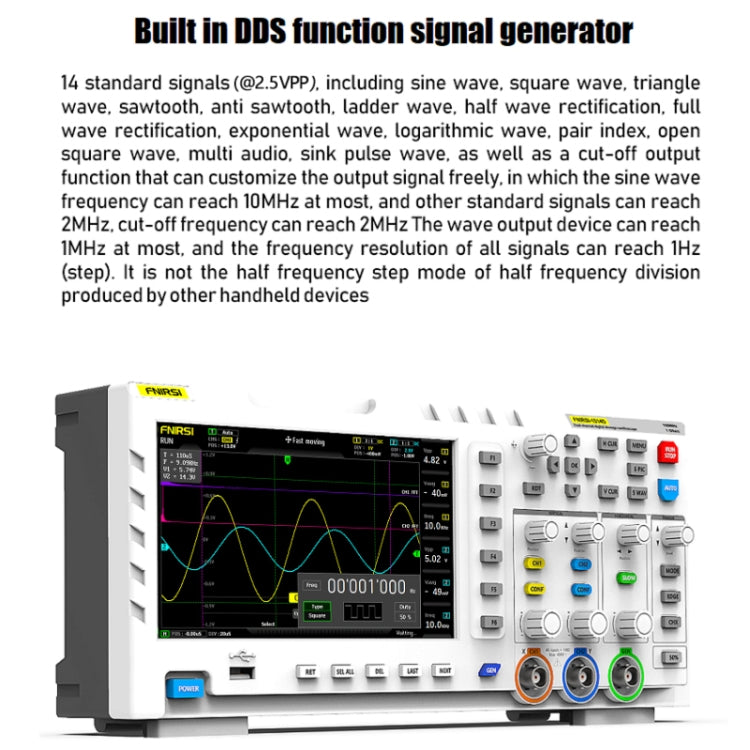

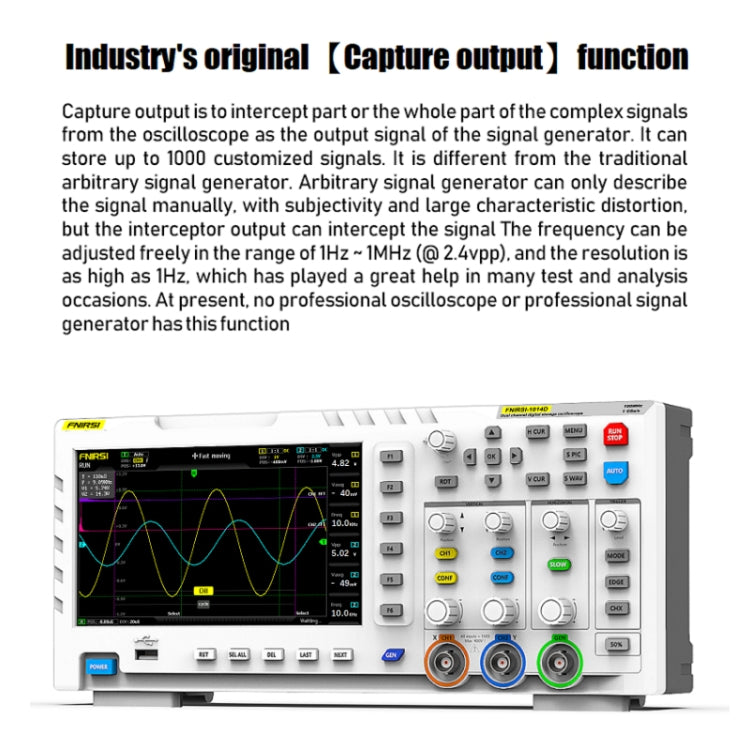

- Function: Built-in signal generator
- Analog bandwidth: 100MHz x 2
- Real-time sampling rate: 1GSa/s

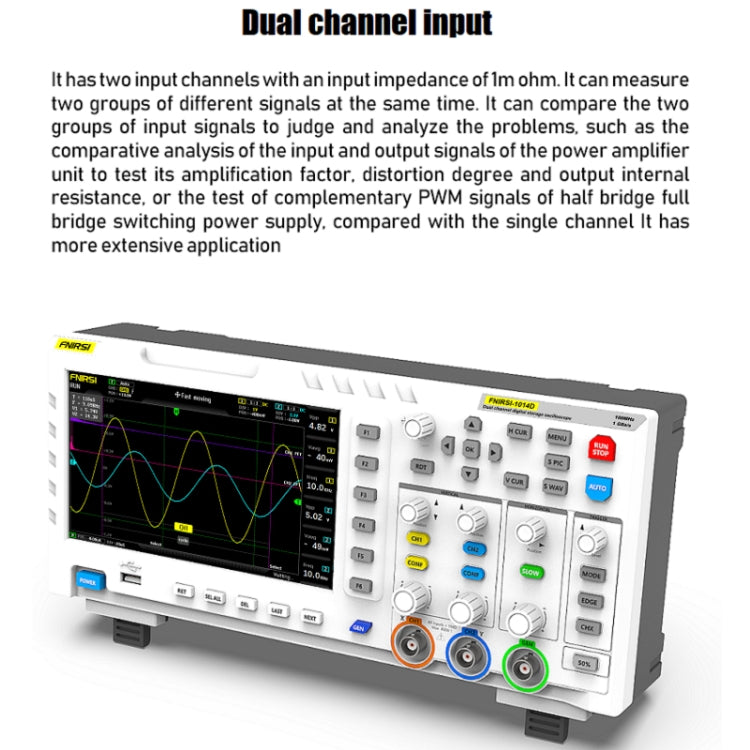

- Number of channels: 2
- Vertical sensitivity: 50 mV/div to 500 V/div
- Horizontal time base range: 50S/div to 10nS/div

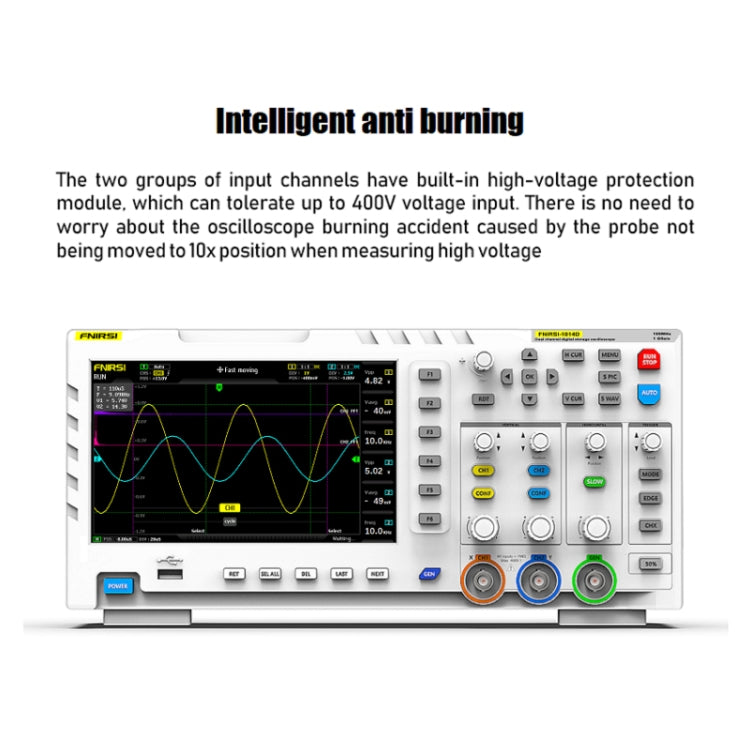

- Test voltage: 40 V (1X probe), 400 V (10X probe)
- Storage depth: 240Kbit
- Input resistance: 1 MΩ
- ADC precision: 8 bits
- Coupling method: AC/DC

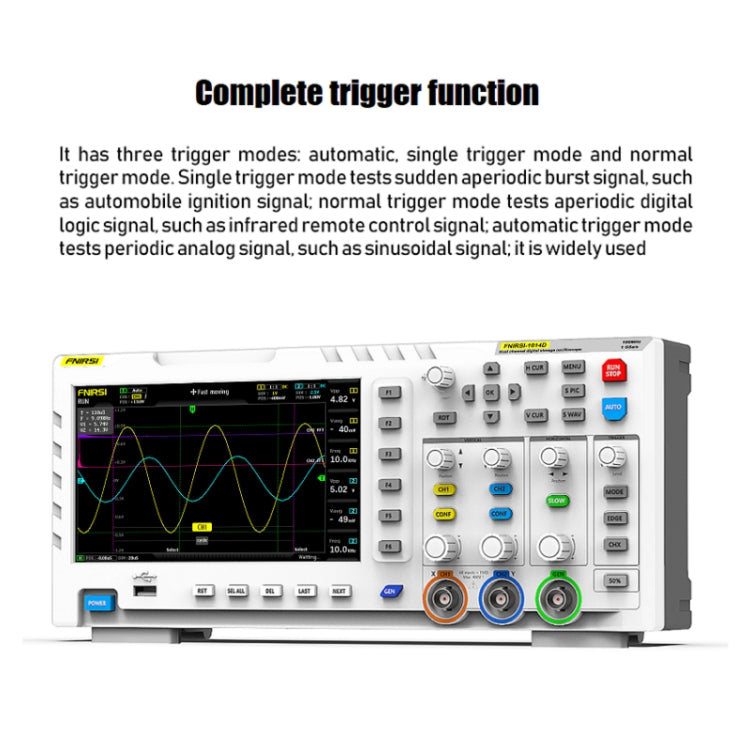

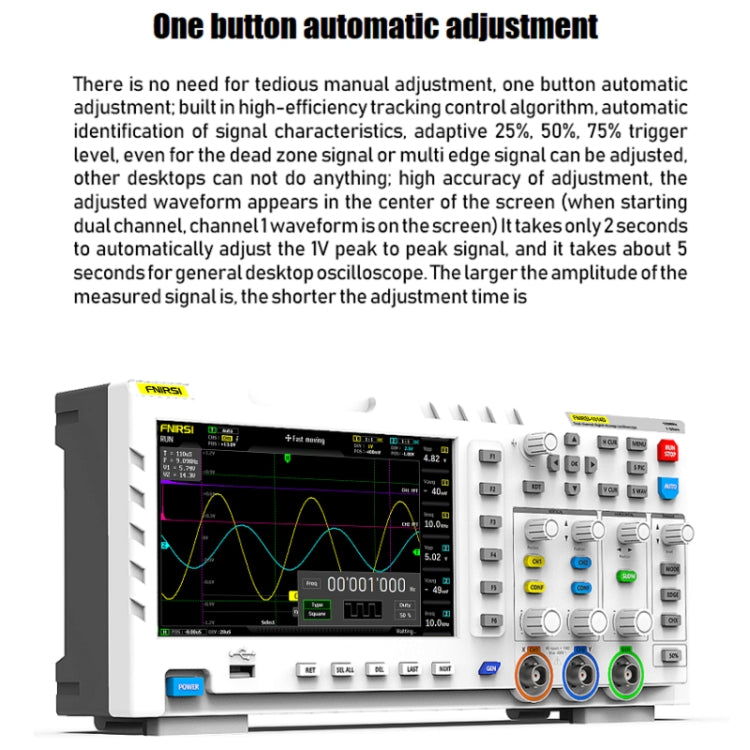

- Trigger modes: Single, normal, automatic
- Trigger edge: Rising edge/falling edge
- External trigger voltage: 0 to 40 V

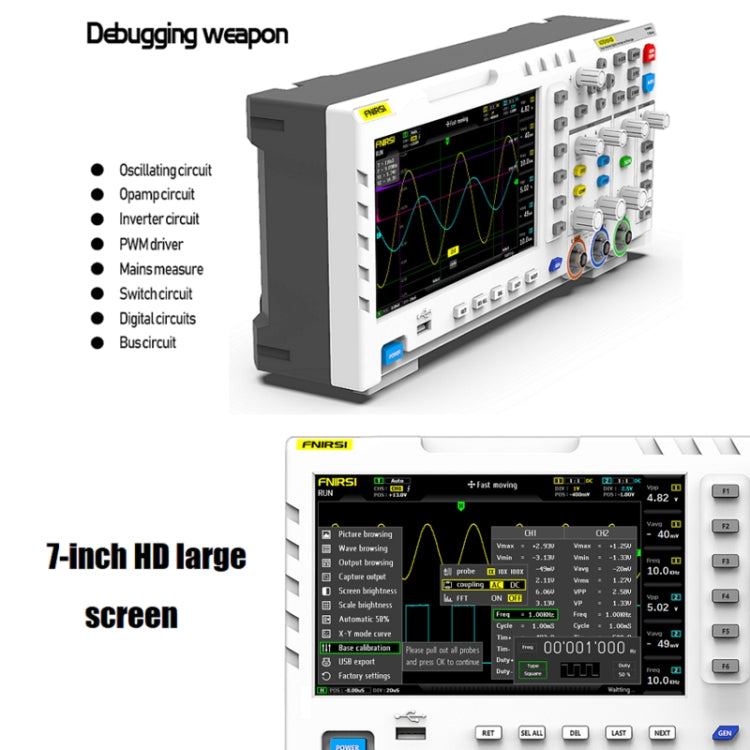

- Display: 7-inch LCD, 800x480 resolution

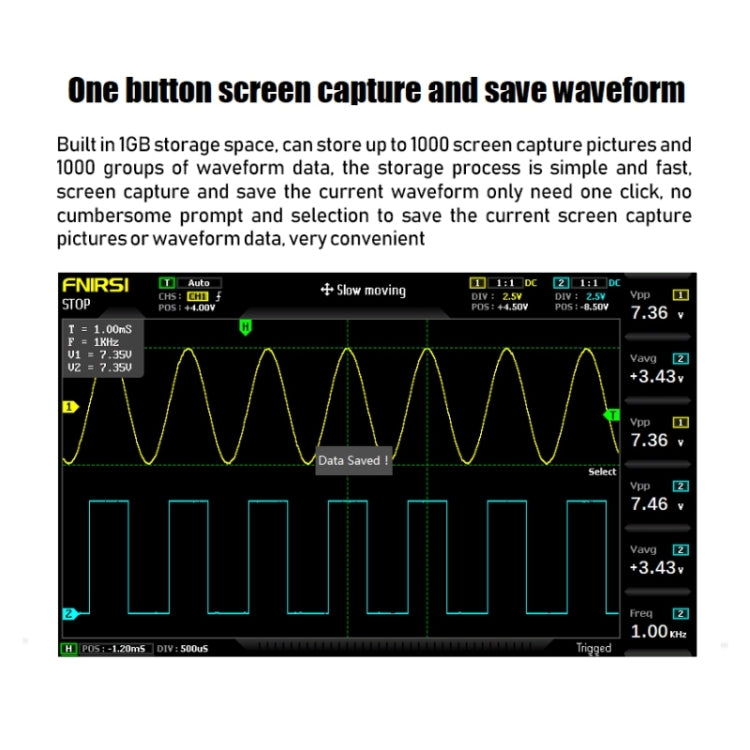

- Storage capacity: 1GB, can store 1000 screenshots and 1000 sets of waveform data

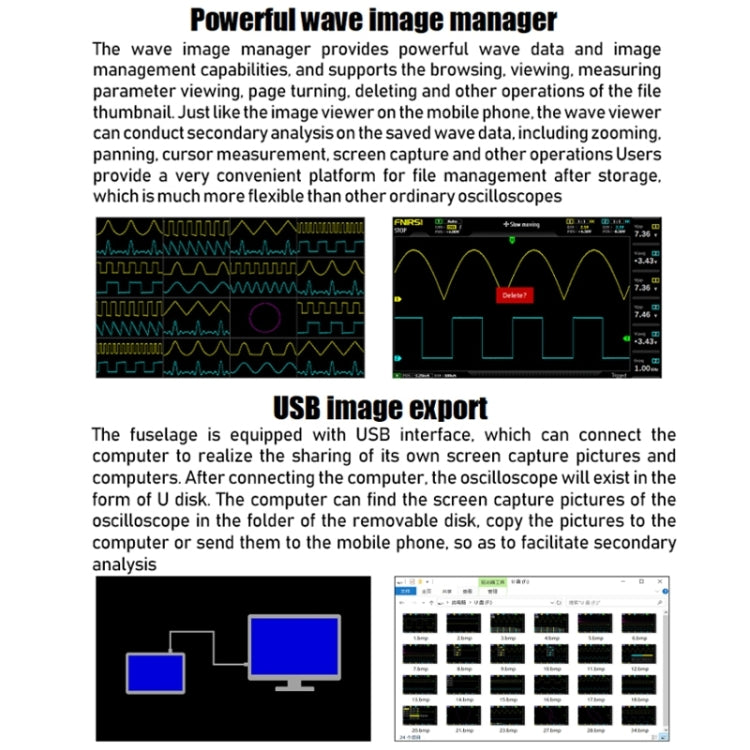

- USB interface for computer connection
- Material: ABS
- Power supply: US plug

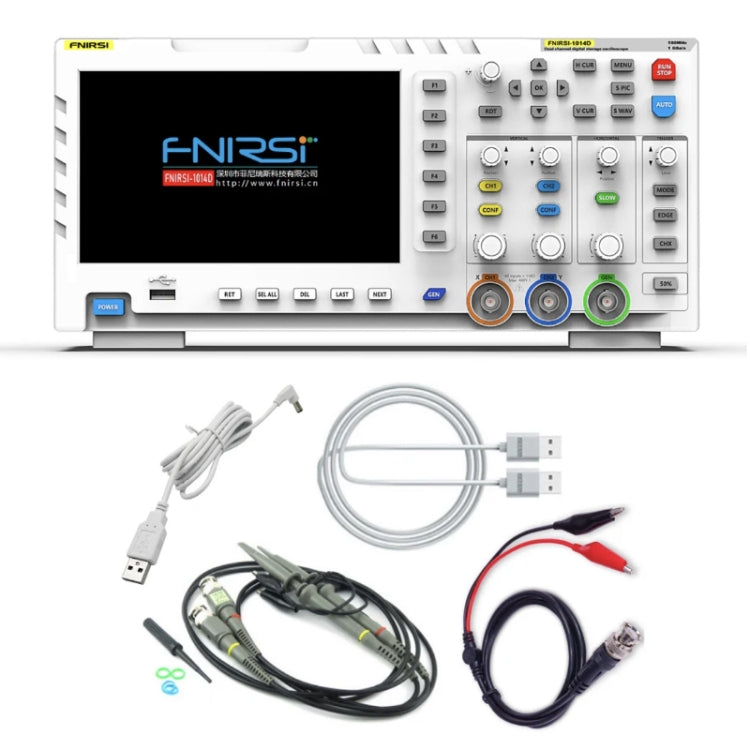

- Packing list: Oscilloscope host, 2 matched 100MHz probes (1X and 10X), clip, US power adapter, USB cable, English user manual, optional P4100 probe
