Description

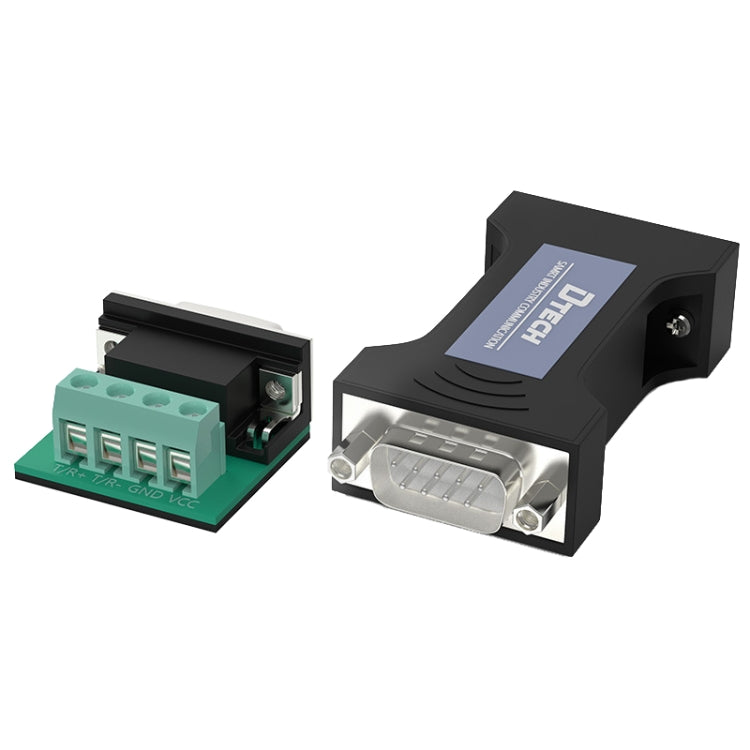

The DTECH DT-9000 is a passive bidirectional RS232 to RS485 serial communication protocol module converter. It enables remote transmission of RS485/RS232 protocol equipment without the need for an external power supply.
- Interface compatibility: RS485/RS232C standard
- Material: ABS
- Working mode: Asynchronous half-duplex differential transmission
- Protection level: 600W lightning surge protection per line, approximately 15KV electrostatic protection
- Transmission distance: RS-485 up to 1200m, RS-232 up to 15m
- Transmission rate: 300-115.2kbps

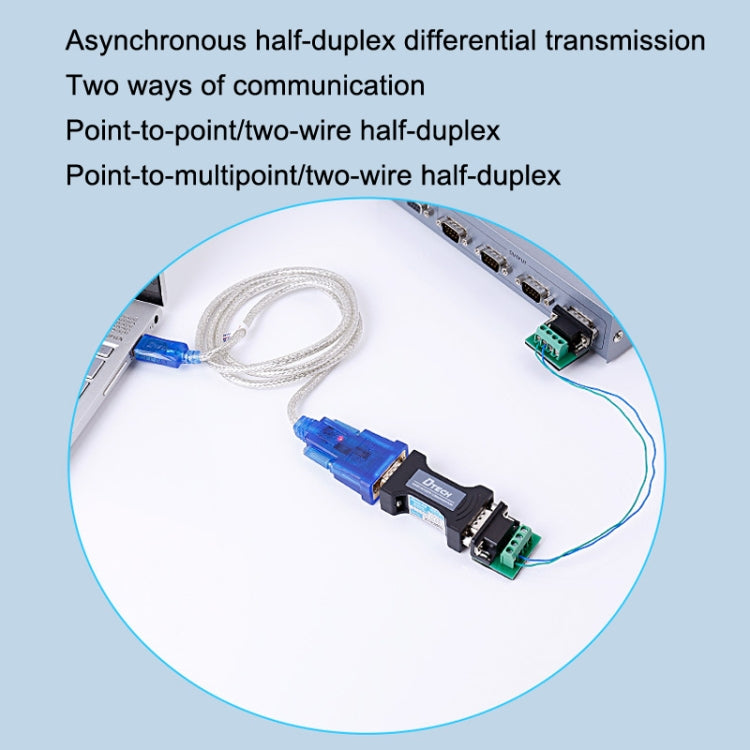

- Communication mode: Point-to-point/two-wire half-duplex, point-to-multipoint/two-wire half-duplex

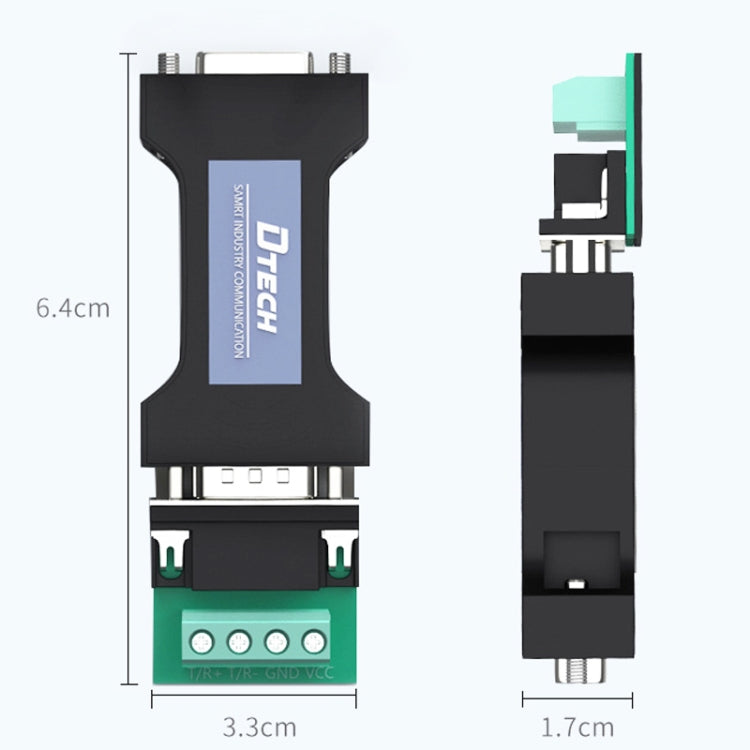

- Size: Approximately 6.4 x 3.3 x 1.7mm

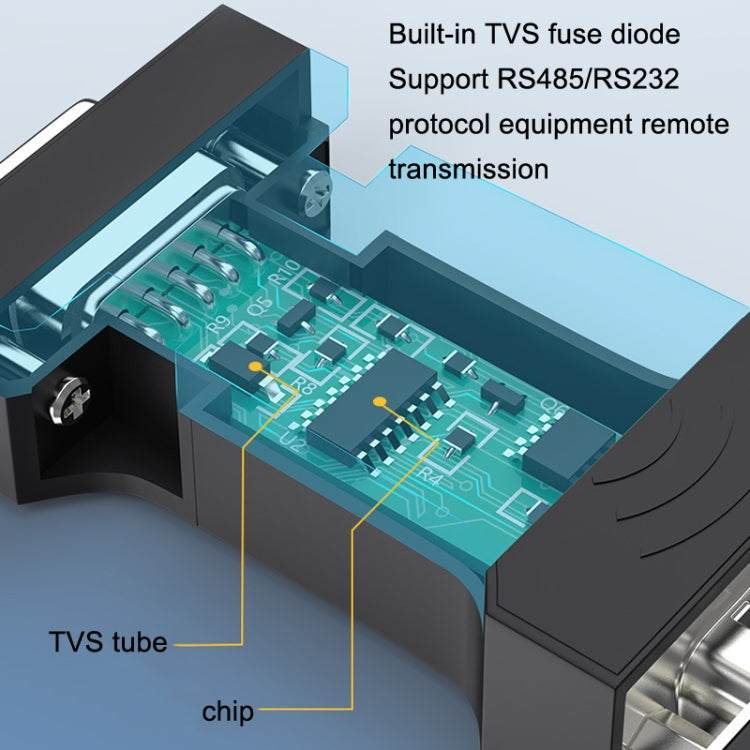

- Built-in TVS fuse diode for remote transmission support

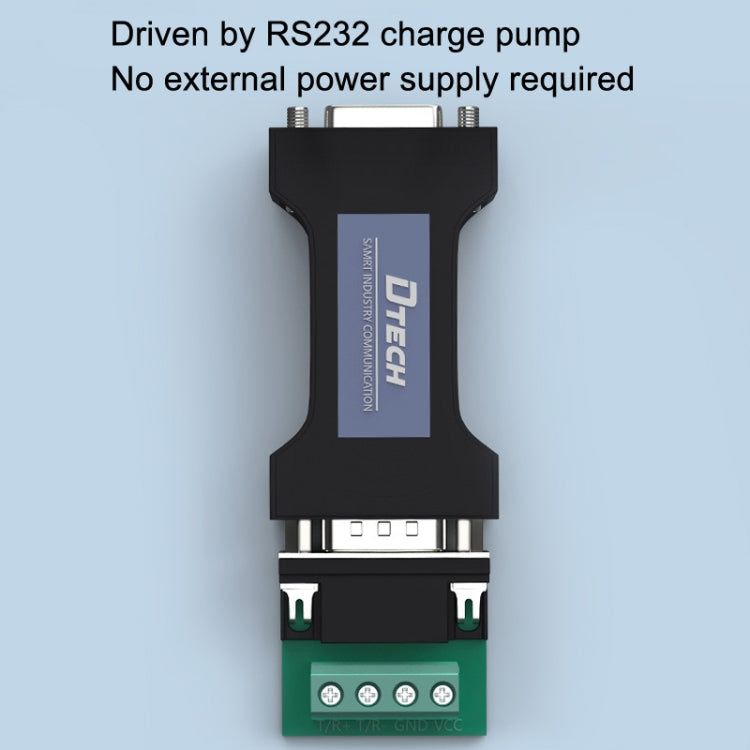

- Driven by RS232 charge pump, no external power supply required

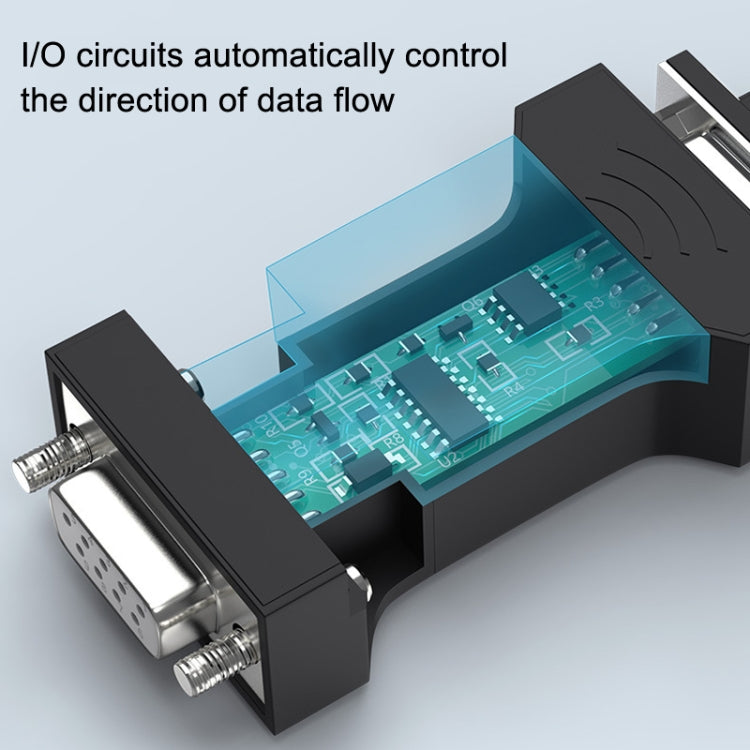

- I/O circuit automatically controls data flow direction
- Built-in zero-delay automatic transceiver conversion device
- Multiple protections for safer use
- Stable transmission with convenient and fast communication methods
