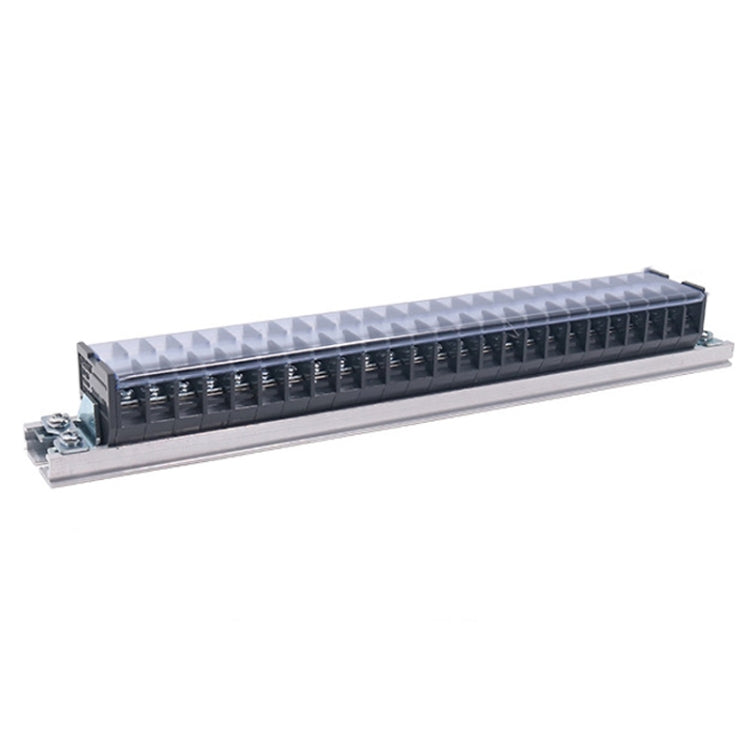

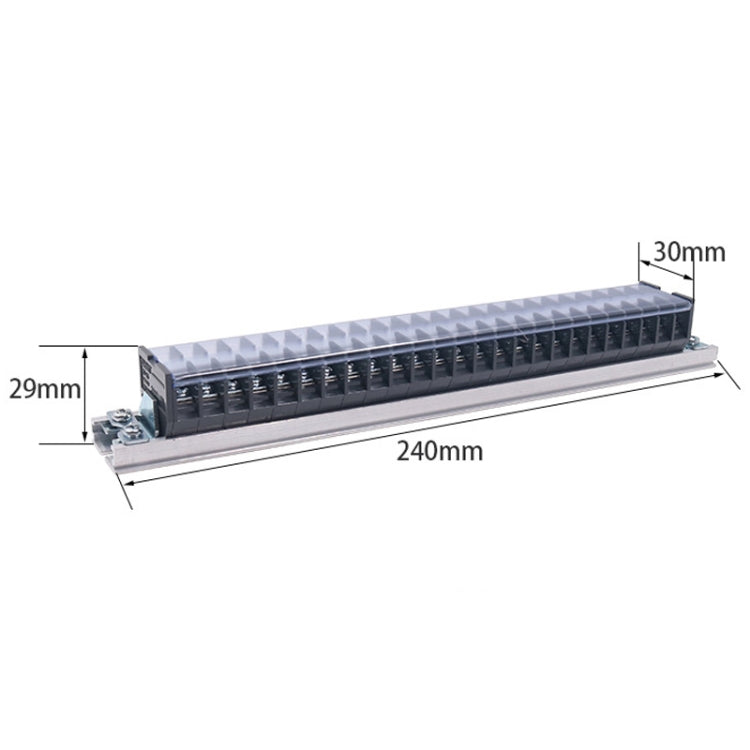

CHINT TD-1525 Terminal Block Rail Type Wiring Block Paralleling Wires Wire Connector

Name: CHINT TD-1525 Terminal Block Rail Type Wiring Block Paralleling Wires Wire Connector
Brand: CHNT
SKU: TBD0604267304
Price: 339.00 ZAR
Availability: InStock

R 339.00

Sale Sold out

FREE DELIVERY on all orders.

Quantity

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. TD series terminal block, the shell is not fragile, screws do not slip teeth, thickened copper, strong electrical conductivity
2. Insulated shell, shell surface smooth, corrosion resistance, strong insulation, wiring screws do not slip, good quality
3. Aluminum rail, aluminum rail installation, lightweight and solid, not rusty
4. Transparent panel, transparent protective cover, can prevent dust and corrosion, protect wire connectors
5. Scope of application: TD series is suitable for AC 50Hz or 60Hz, rated voltage up to 660V, rated current up to 200A power and control circuits, between the wires for connection purposes
6. This series of terminal block adopts screw crimp connection, the end of the wire must be crimped TU-type or TO-type end before connecting with the terminal block, the terminal block has a protective cover, and is installed by C-type mounting rail
7. Conformity standards: GB/T14048.7, IEC60947-7-1
8. Current: TD1510-TD1550: 15A, TD2010-TD2020: 20A, TD3010-TD3020: 30A, TD6005-TD6010: 60A, TD10010: 100A
9. Screws: TD1510-TD1550: M3, TD2010-TD2020: M4, TD3010-TD3020: M5, TD6005-TD6010: M5, TD10010: M5
10. Wire section: TD1510-TD1550: 0.75-1.5mm, TD2010-TD2020: 1-2.5mm, TD3010-TD3020: 1-6mm, TD6005-TD6010: 4-10mm, TD10010: 6-25mm
