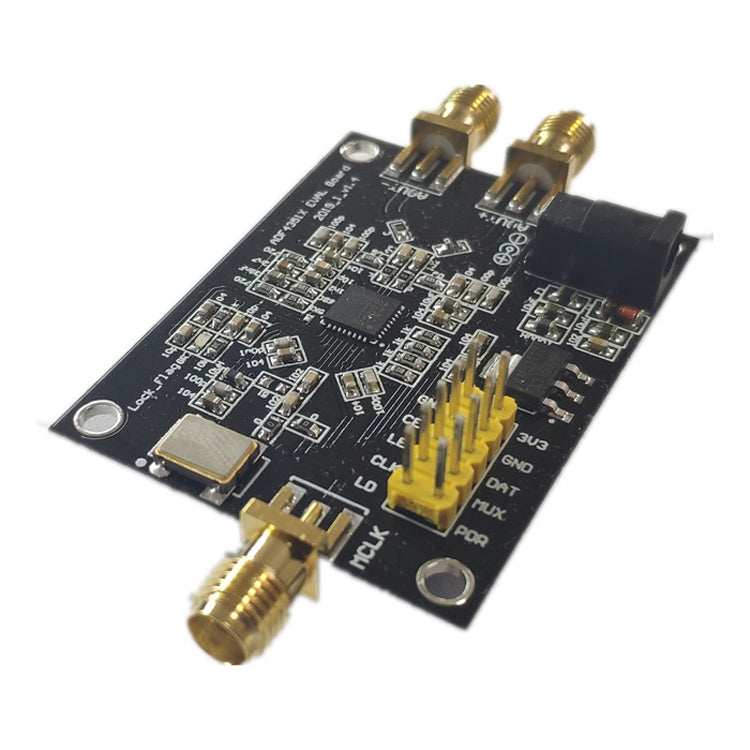

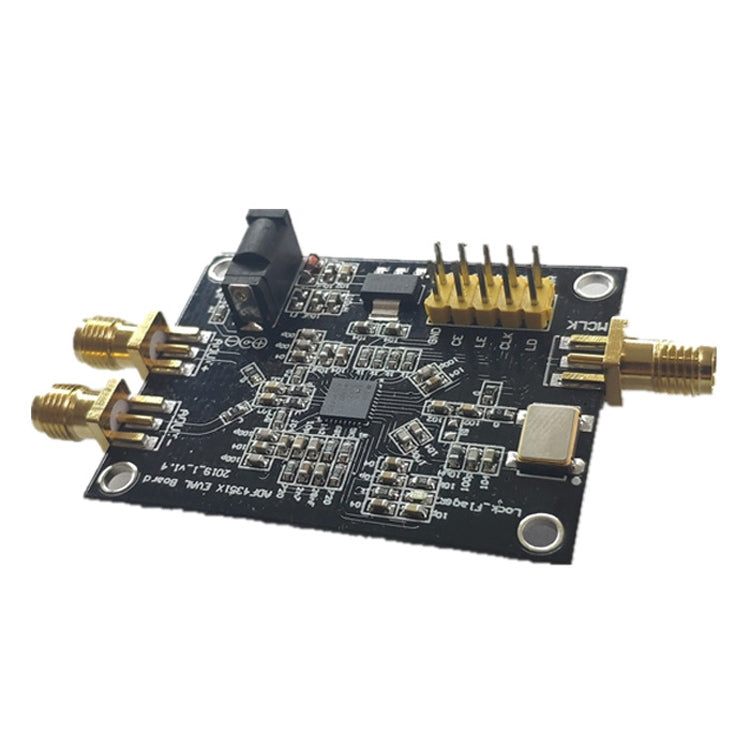

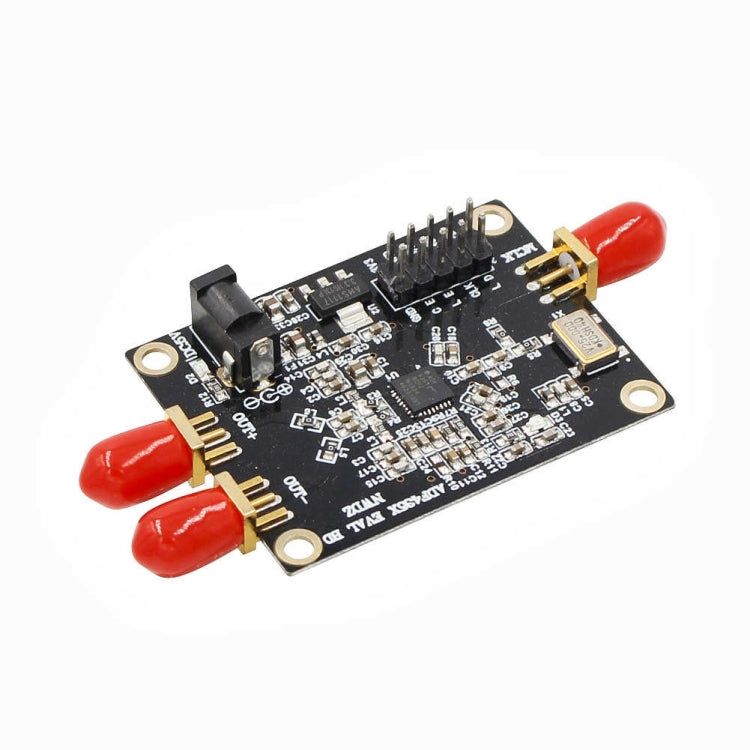

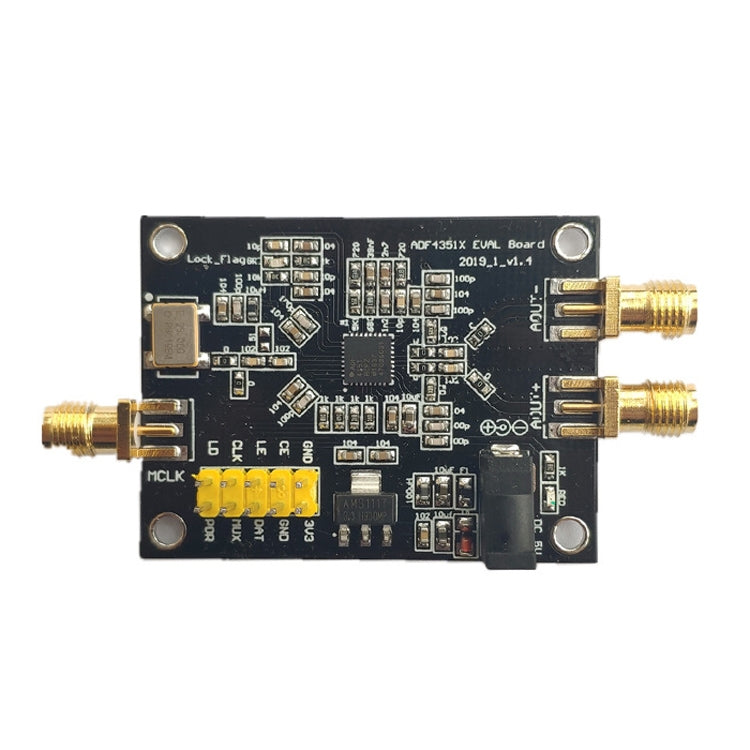

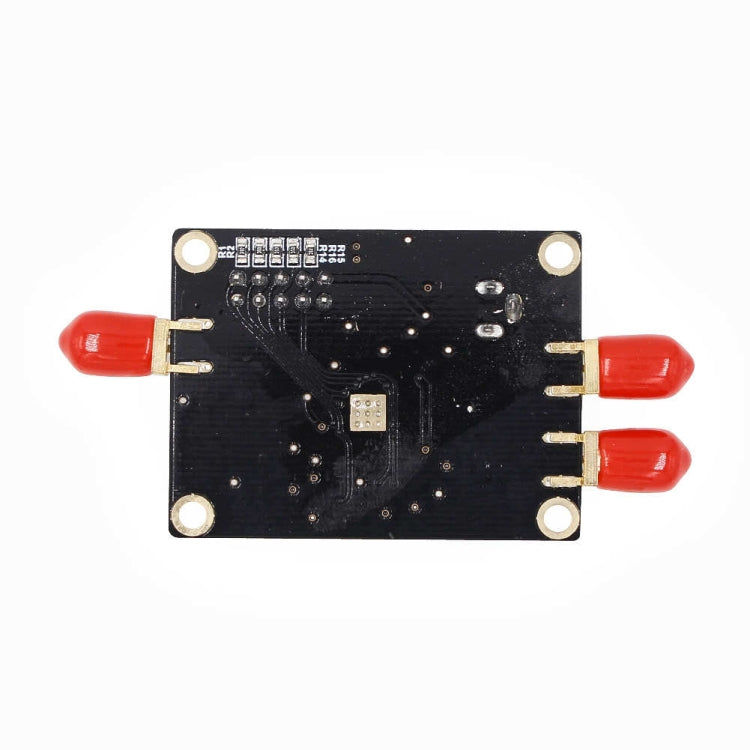

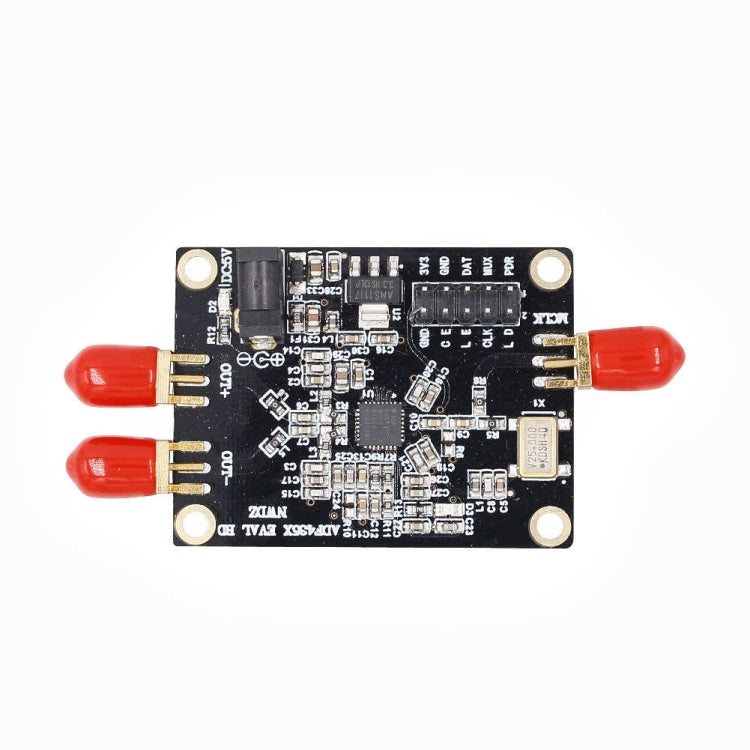

ADF4351 Module Development Board Phase-Locked Loop PLL RF Signal Source

• Product type: Arduino Nucleo Accessories
• Compatibility: ADF4351 module
• Material: Not specified
• Key feature: Phase-Locked Loop RF Signal Source
• Color/Variant: Not specified
• Intended use: Electronics development
• Category: Consumer Electronics

1. Output frequency range: ADF4351: 35M-4400M (4.4G)
2. Output signal: 2200M-4400M fundamental wave (sine wave) 35M-2200M fundamental wave frequency division (square wave)
3. Output signal interface: SMA female
4. Control mode: three-wire SPI, lead out control pin and lock status pin, can realize all functions, including point frequency, sweep frequency and frequency hopping, step can reach 1K, low frequency step can reach 0.1K, according to crystal frequency to decide.
5. It can be powered by 3.3v pins, and the power supply can provide a current of not less than 500mA.
6. Typical power supply is 5v
