Description

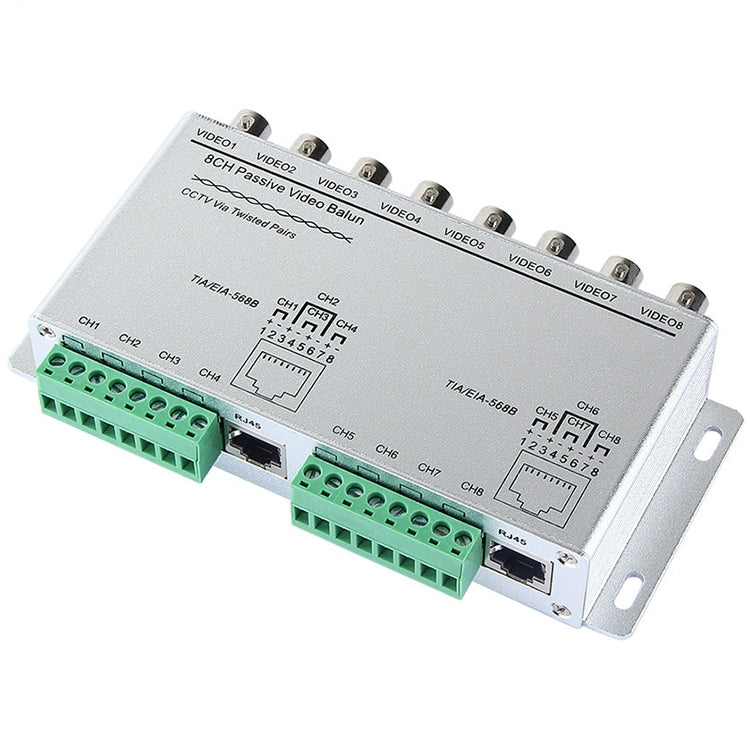

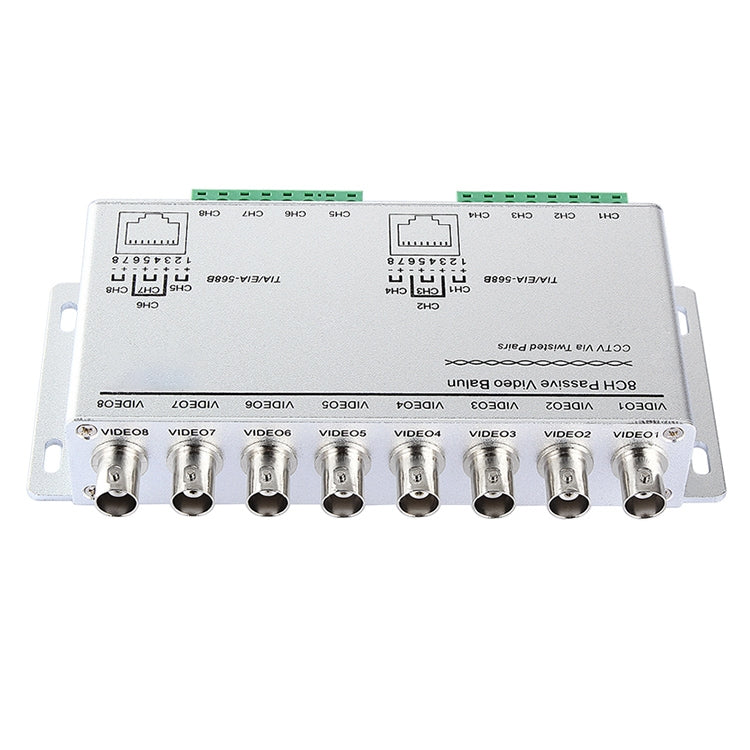

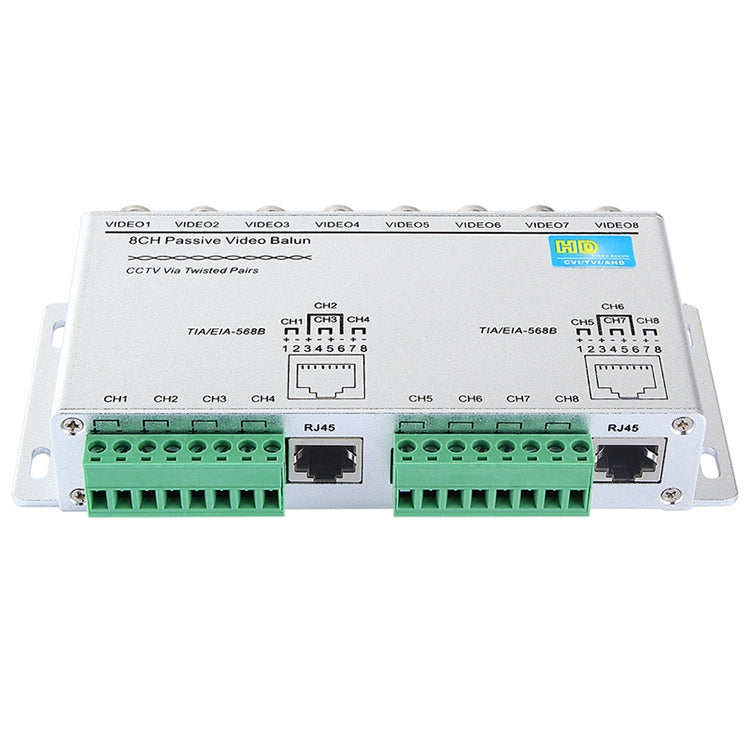

8 Channel Passive UTP Video Balun is designed for video signal transmission. It allows for full-motion CCTV video transmission over long distances using twisted pair wiring.
- Product Type: Video Balun
- Compatibility: 8 Channel Passive UTP
- Material: Metal
- Color: Silver
- Key Feature: Excellent anti-jamming ability
- Frequency Response: DC-8MHz
- CMRR (Common Mode Rejection Ratio): 60DB
- Impedance: BNC terminal: 75Ω, Connection terminal: 100Ω
- Working Temperature: -10°C to 70°C
- Storage Temperature: -30°C to 70°C
- Applicable Systems: NTSC, PAL, SECAM, CCIR
- Power Supply: DC 12V (Max: 50mA)
- Characteristic Impedance: 100Ω ± 20Ω
- DC Loop Resistance: 18Ω/100m
- Differential Capacitance: 62pf/m (maximum)
- Size: 157 x 65 x 29 mm
- Weight: 167 g

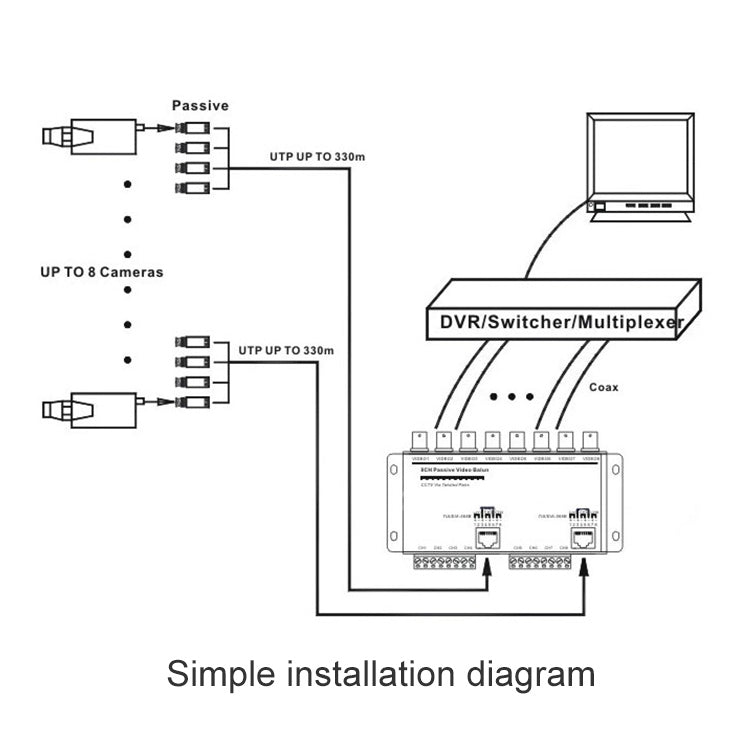

- Distance Capability: Up to 330m with passive UTP video transceiver, up to 1500m with active UTP video receiver
- Power Requirement: No power required for operation
- Protection: Built-in transient suppression protection
