2054.0 Motorcycle Rectifier For 4140309 4140305 4140309 21066-7017

Name: 2054.0 Motorcycle Rectifier For 4140309 4140305 4140309 21066-7017
Brand: PMC Jewellery
SKU: TBD0545457101
Price: 319.00 ZAR
Availability: InStock

R 319.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Weight: 84G

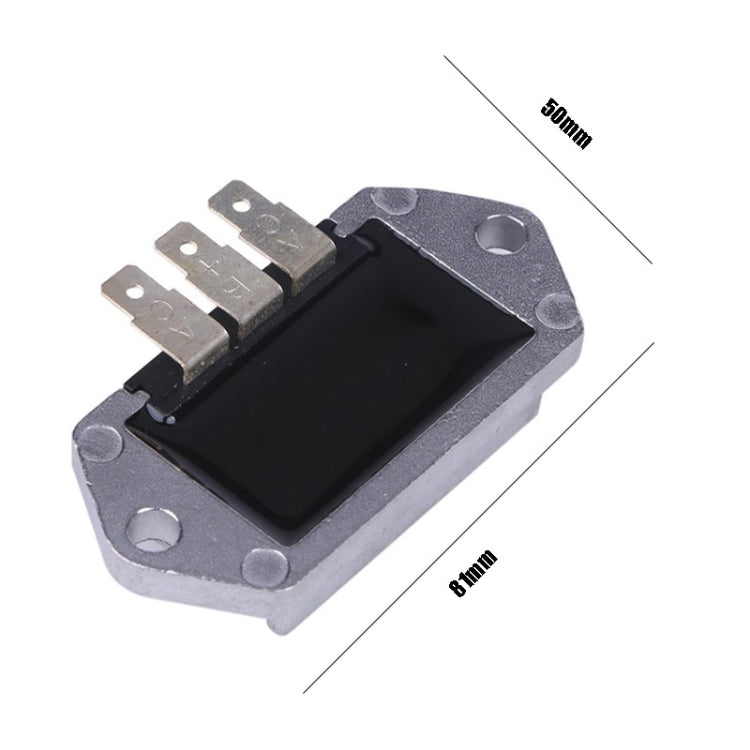

2. Size: 81x50x23MM
3. Output voltage: 14.5V / 15A

Installation precautions:
1. The rectifier should be installed in a place with good ventilation and good heat dissipation. The rectifier will produce high temperature when it is working, and poor heat dissipation will damage the rectifier
2. The installation procedure of the rectifier is to connect the AC input line, not connect the positive and negative output, start the locomotive, measure the positive and negative output voltage, and insert the positive and negative power supply when the voltage range is reasonable. Negative, then test the battery or rectifier. If the voltage range is unreasonable, please stop using it and provide feedback. The entire installation process should be recorded and saved.
3. Please note that the rectifier should be tightly installed on the rack during installation to facilitate heat conduction. You can also add thermal glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the rack
5. There should be a fuse protection device between the positive socket of the rectifier and the battery to prevent the excessive voltage from burning down other electrical components when the rectifier is damaged.

Applicable models:
For John Deere MIA11665
For John Deere AM106357
For John Deere AM34738
For John Deere AM102596
For Kohler 41-403-09-S
For Kohler 41-403-04
For Kohler 25-755-03-S
For Kohler 234279
For Kohler 41-403-09
For Kohler 41-403-05
For Kohler 41-403-01
For Kohler 41-403-10-S
For Kohler 25-755-03
For Kohler 25-755-03S
For Reemplazo Transpo KH4309
