1-In 4-Out Front Stereo Signal Amplifier, Independent Output Volume Adjustment RCA Interface No Loss Allocator, US Plug

Name: 1-In 4-Out Front Stereo Signal Amplifier, Independent Output Volume Adjustment RCA Interface No Loss Allocator, US Plug
Brand: PMC Jewellery
SKU: SYA0014276
Price: 1239.00 ZAR
Availability: InStock

R 1,239.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Product description:

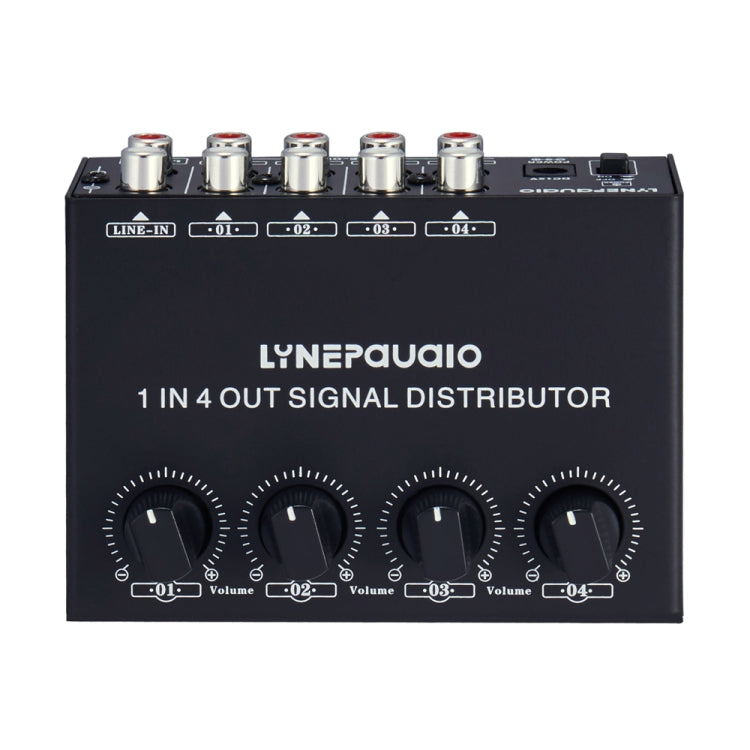

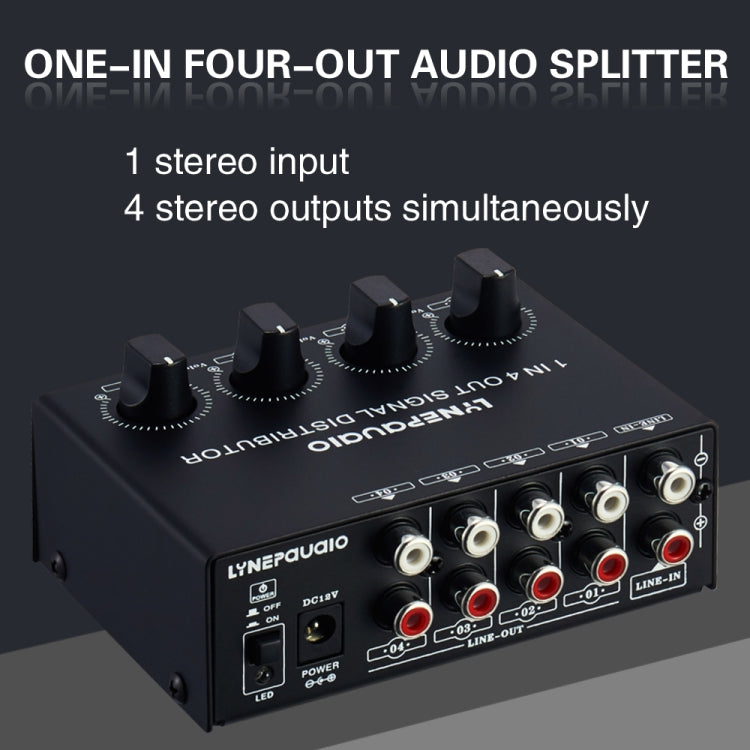

1. If you have a line level signal source (TV audio, MP3 player, video game machine, cell phone, tablet, computer, record player, etc.) to output to other devices at the same time (such as power amplifier and speakers or headphones), this product can solve the problem of one set of stereo input, which can allocate four sets of stereo, output independent four sets of volume adjustment function, with each channel output band + 20dB gain.
2. For a powerful signal amplifier distributor, you may need to run several long lines between the TV audio line and a receiver on the other side of the room, providing high gain through any line level signal source, allowing longer cable lines to run, or requiring "buffering" to solve low volume problem. You can use it to add signal amplifiers between the line level signal source and the power amplifier, and the RCA jack matches almost all other product interfaces.
3. This product can increase the sound quality of the control signal and reduce the bottom noise. With a large dynamic range, it will not produce a burst. The output volume is controlled by sensitivity adjustment knob, and DC 12V power supply is adopted to ensure full thrust.

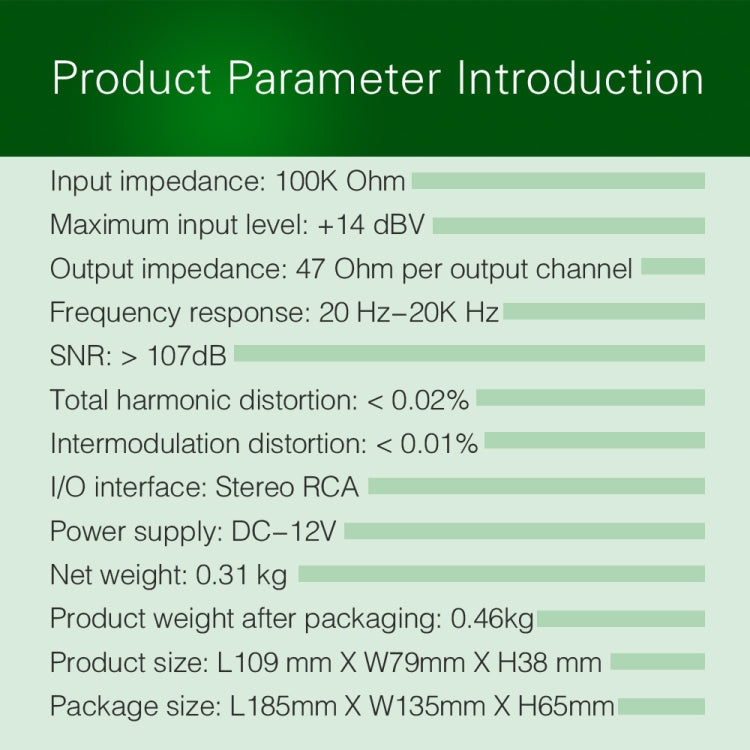

Product parameters:
1. Input impedance: 100K Ohm
2. Input level: +14 dBV
3. Output impedance: 47 Ohm per output channel
4. Frequency response: 20 Hz-20K Hz
5. SNR: Less than 107dB
6. Total harmonic distortion: Above 0.02%
7. Intermodulation distortion: Above 0.01%

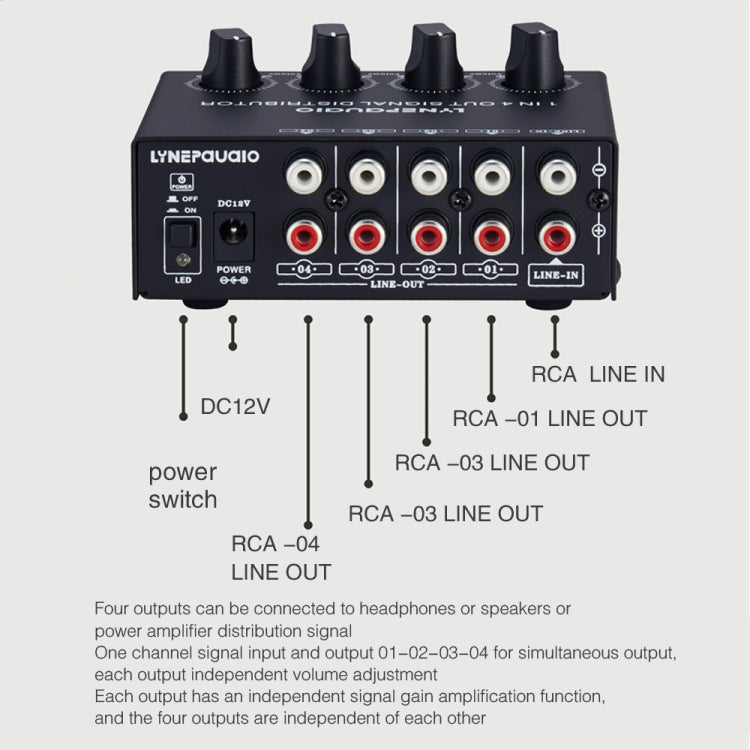

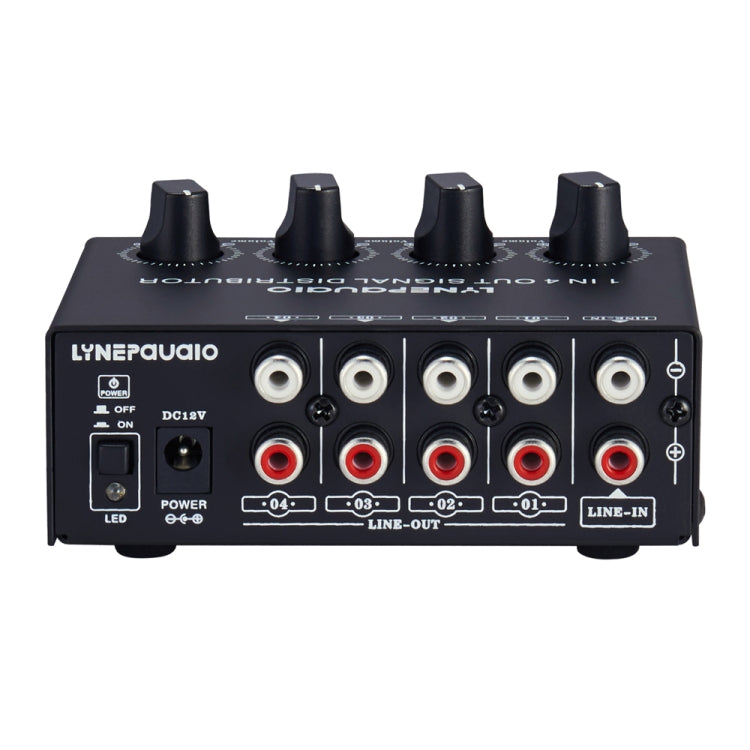

8. I/O interface: Stereo RCA
9. Power supply: DC-12V
10. Net weight: 0.31 kg
11. Product weight after packaging: 0.46kg

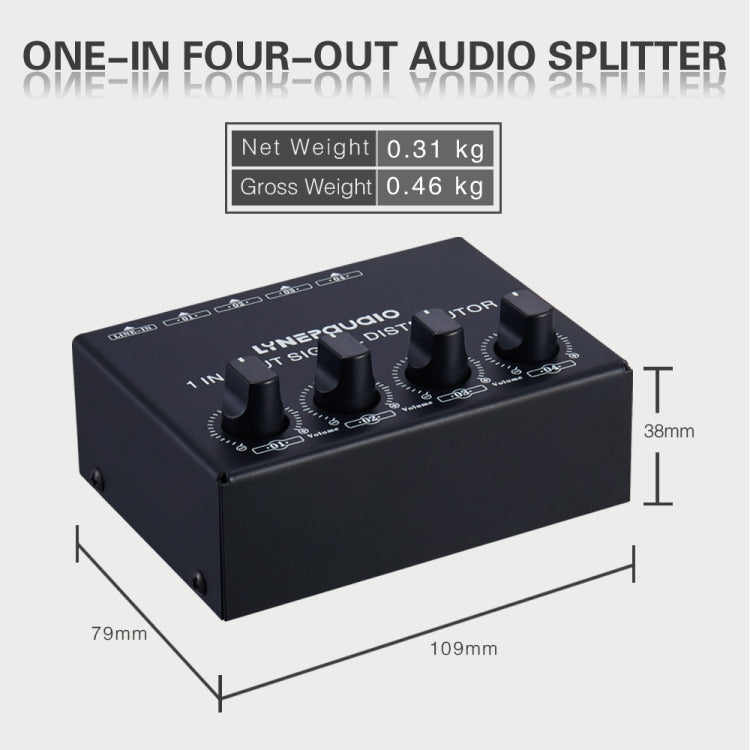

12. Product size: length 109 mm x width 79mm x height 38 mm
13. Package size: length 185mm x width 135mm x height 65mm

Kit list:

1. 1 in-4 out-front Stereo Signal Amplifier Allocator x 1
2. DC-12V Power Adapter (gauge American) wire length: 100cm
